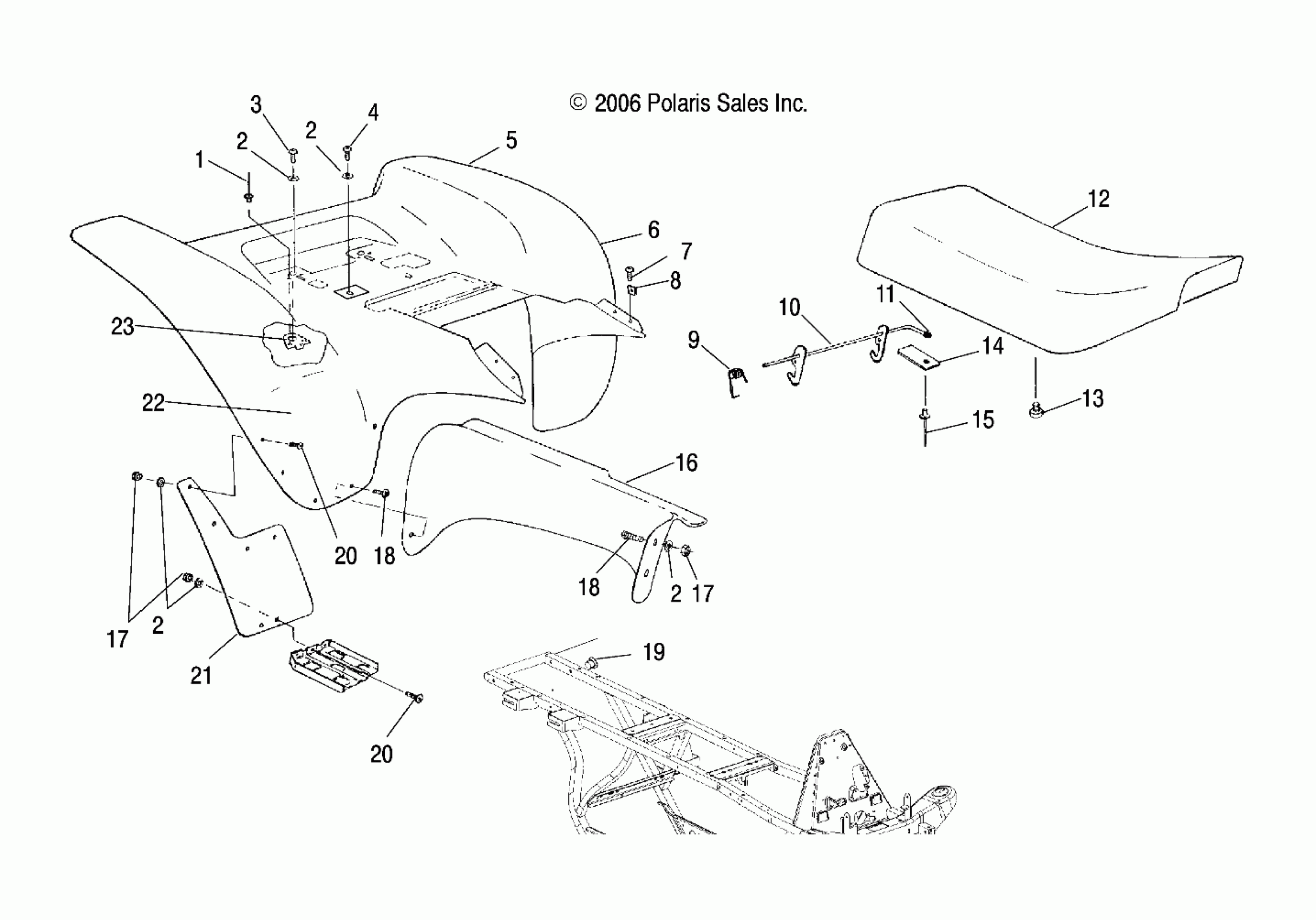

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA CAB, REAR - A07BG50AA/FA (49ATVCABRRSCRAM) Diagram

#

Description
Price

1

RIVET

7621472

$1.49

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

3

Bolt

7512232

$1.19

4

SCREW

7512242

$2.38

5

Foil, Small

5810991

Unavailable

6

Cab, Rear, Cosmic Sunburst

5430007-177

Unavailable

7

Screw

7517916

$6.35

8

NUT, SPEED

7670057

$1.19

9

Spring, Latch, Light

7041607

Unavailable

10

Latch, Seat

1040412

Unavailable

11

Cap, Seat Latch

5411392

Unavailable

12

Cover, Seat, Silver

2684005-320

Unavailable

12

Asm., Seat, Silver w/Black POLARIS

2684004-320

Unavailable

13

BUMPER-RUBBER

5412067

$3.97

14

BRACKET, LEVER RETAINER

5211033

$34.99

15

RIVET

7621403

$1.19

16

Foil

5811230

Unavailable

16

Asm., Shield, Muffler w/Foil

2632280

Unavailable

17

Nut, Nylok

7542122

$1.19

17

Nut, Nylok

7542122

$1.19

18

Screw

7517264

$3.97

18

Screw

7517264

$3.97

19

Plug, End Cap, Ribbed

5432831

$5.65

20

Bolt

7512282

Unavailable

20

Bolt

7512282

Unavailable

21

Mudflap, Rear, LH

5812134

Unavailable

22

Foil

5810957

Unavailable

22

Mudflap, Rear, RH

5812543

Unavailable

23

Bracket, Rear Holddown

5220880

Unavailable
