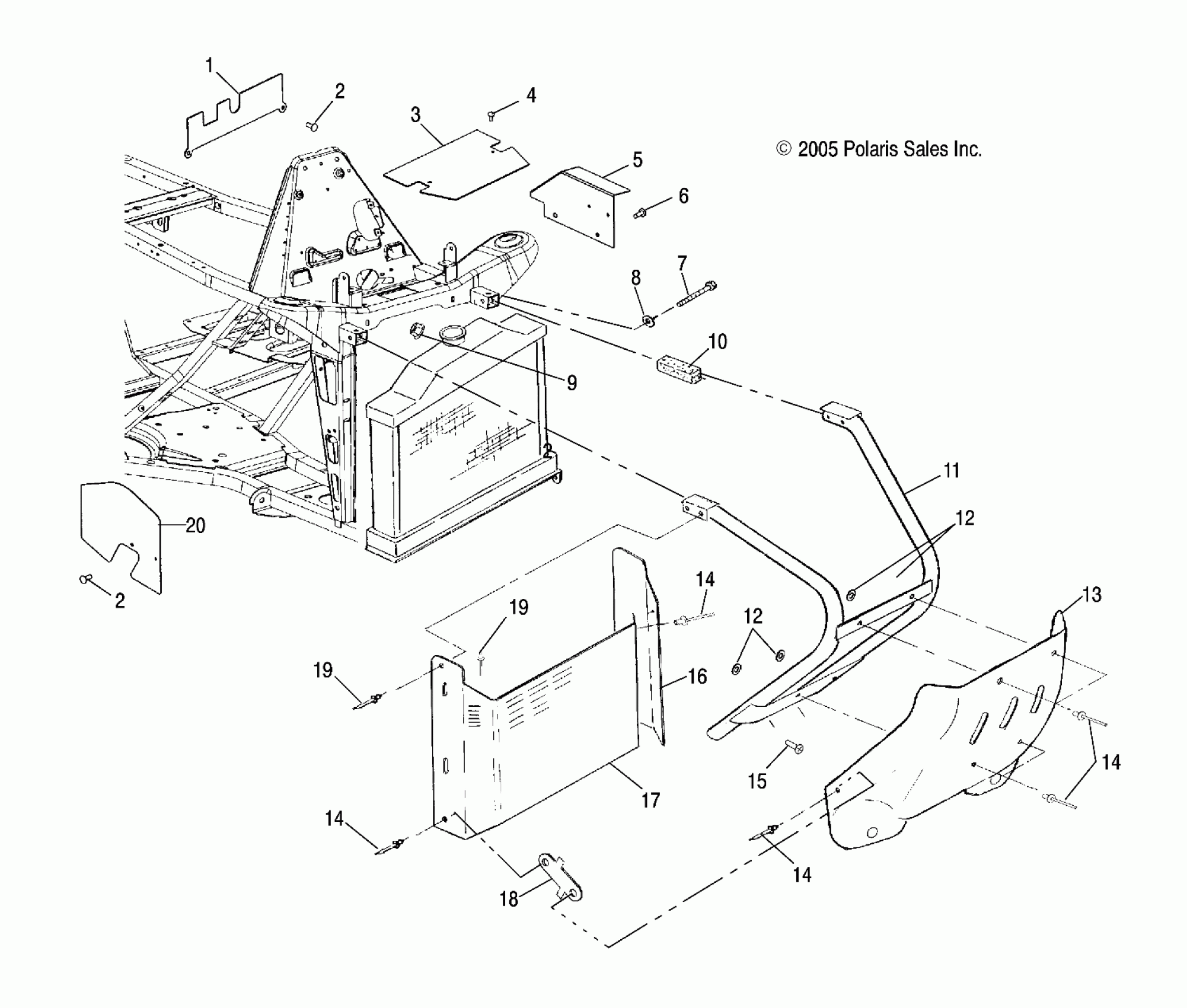

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA BUMPER, FRONT and SHIELDS - A07BG50AA/FA (4999201549920154A05) Diagram

#

Description
Price

1

Shield, Splash, Rear

5434162

$12.39

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

3

Shield, Splash, Front

5436927

$12.39

4

Screw

7522026

$4.79

5

Shield, Splash, Black, LH

5247602-067

$13.19

6

SCREW

7517386

$1.49

7

Bolt

7512329

$3.99

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

Plug, Frame, Foam

5811675

Unavailable

11

Bumper, Front, Black

1012773-067

$259.99

12

Washer, Flat

7558201

$5.79

12

Washer, Flat

7558201

$5.79

13

Plate, Skid, Bumper, Black

5432378-070

$92.39

14

RIVET

7621418

$1.49

14

RIVET

7621418

$1.49

14

RIVET

7621418

$1.49

14

RIVET

7621418

$1.49

15

Bolt

7515399

$1.49

16

Shield, Radiator, Side, Black, LH

5248297-067

$22.06

17

Shield, Radiator, Side, Black, RH

5248298-067

Unavailable

18

Bracket, Radiator Shield

5248299

Unavailable

19

Rivet

7661121

Unavailable

19

Rivet

7661121

Unavailable

20

Guard, Splash, RH

5434085

$28.95
