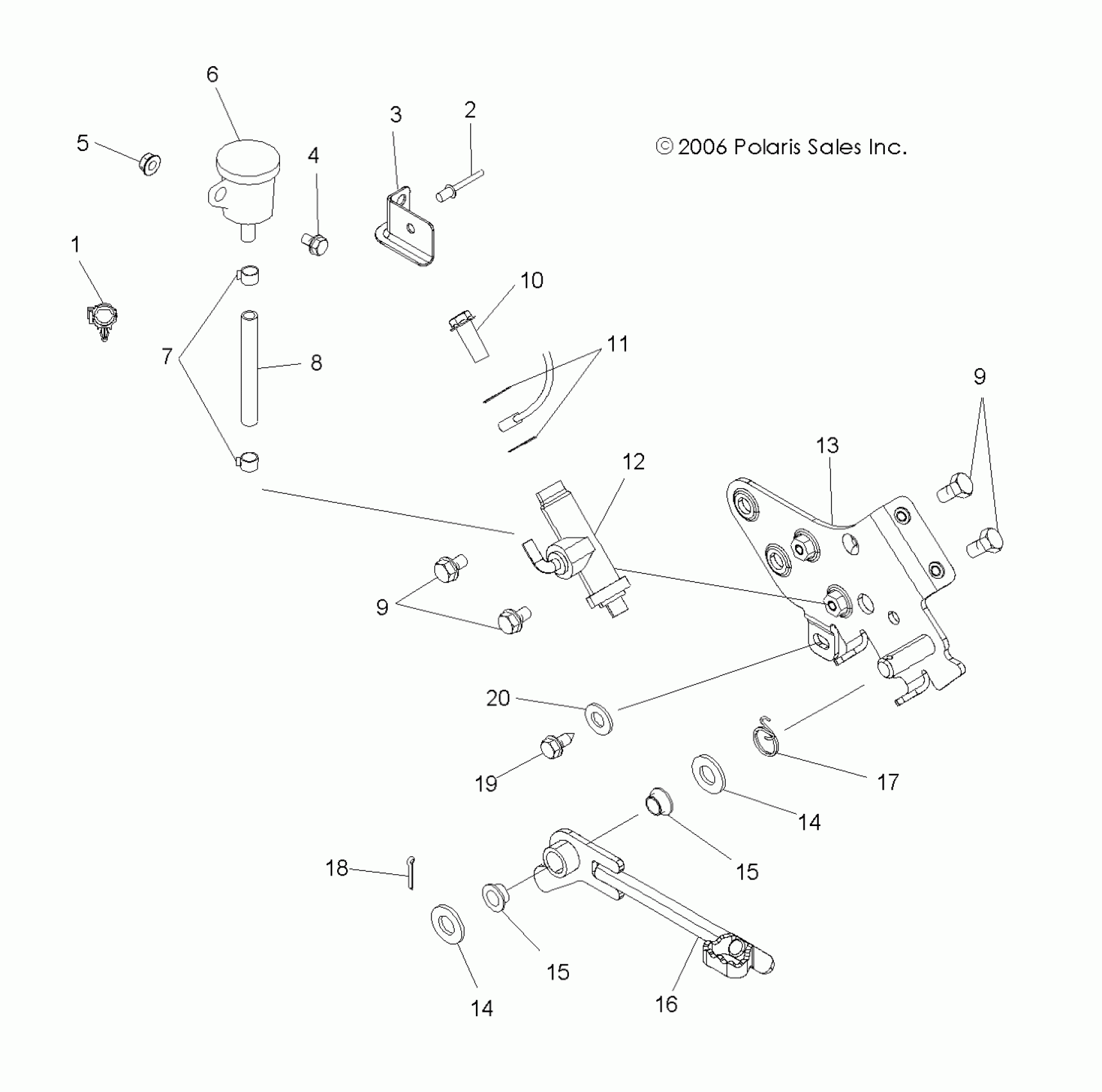

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA BRAKE, REAR - A07BG50AA/FA (49ATVBRAKERRSCRAM) Diagram

#

Description
Price

1

Clip

7670102

$2.38

2

RIVET-3/16-.090-.290

7661637

$1.19

3

Bracket, Reservoir Plated

5240030

$2.94

4

Screw

7512240

$3.97

5

NUT, NYLOK, FLANGED

7542153

$1.59

6

Asm., Reservoir

1930854

Unavailable

7

HOSE CLAMP, RED

7080003

$1.19

8

Hose, Reservoir

1910981

$6.59

9

Screw

7515158

$4.76

9

Screw

7515158

$4.76

10

BOLT, BANJO

1910499

$5.56

11

SEAL

5413212

$4.84

12

Asm., Foot Brake Master Cylinder

1910791

$174.03

13

Mount, Brake, Black

1910798-067

$39.37

14

WASHER

7555919

$4.99

14

WASHER

7555919

$4.99

15

BUSHING, PEDAL PIVOT

5433189

$3.97

15

BUSHING, PEDAL PIVOT

5433189

$3.97

16

Pedal, Brake, Black

1910767-067

$63.49

17

SPRING-TORSION,BRAKE

7041750

$8.89

18

PIN, COTTER

7661401

$0.79

19

Bolt

7512232

$1.19

20

Washer, Flat

7558301

$1.19
