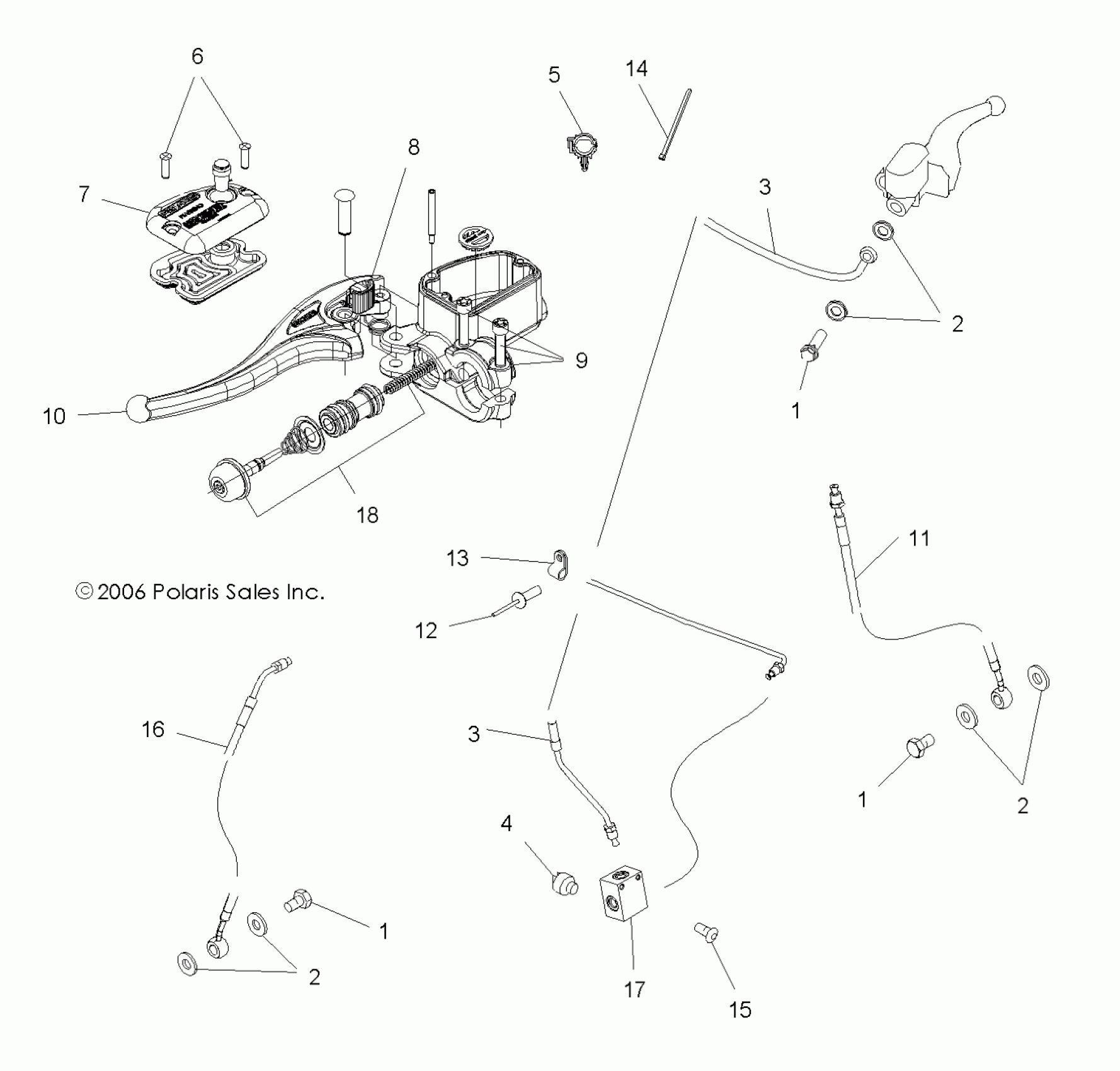

Polaris SCRAMBLER 500 4X4 - A07BG50AA/FA BRAKE, HAND/BRAKE LINE - A07BG50AA/FA (49ATVCONTROLSSCRAM) Diagram

#

Description
Price

-

Asm., Master Cylinder [Incl. All]

2010238

$243.99

1

BOLT, BANJO

1910499

$5.59

1

BOLT, BANJO

1910499

$5.59

1

BOLT, BANJO

1910499

$5.59

2

SEAL

5413212

$4.79

2

SEAL

5413212

$4.79

2

SEAL

5413212

$4.79

3

Line, Brake

1910470

$87.99

3

Line, Brake

1910470

$87.99

4

Switch, Stoplight

4110164

Unavailable

5

Clip, Rosebud

4020149

$6.39

6

SCREW

7517899

$1.49

7

Kit, Master Cylinder Cap [Incl. Cap, Screws, Sight, Gasket]

2201834

Unavailable

8

KIT, MASTER CYLINDER PARK BRAKE LEVER [INCL. LEVER, SPRING]

2201836

$43.99

9

KIT, MASTER CYLINDER CLAMP [INCL. CLAMP, SCREWS]

2201833

$47.99

10

KIT, MASTER CYLINDER LEVER [INCL. PIN, LEVER, CLIP]

2201835

$59.99

11

LINE, BRAKE, LEFT FRONT

1910838

$75.99

12

Rivet

7621462

$1.49

13

Clamp, Nylon

7080539

$4.79

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

SCREW

7512024

$4.79

16

LINE, BRAKE, RIGHT FRONT

1910839

$75.99

17

FITTING, CROSS

7052292

$39.99

18

Kit, Master Cylinder Piston

2202410

$99.99
