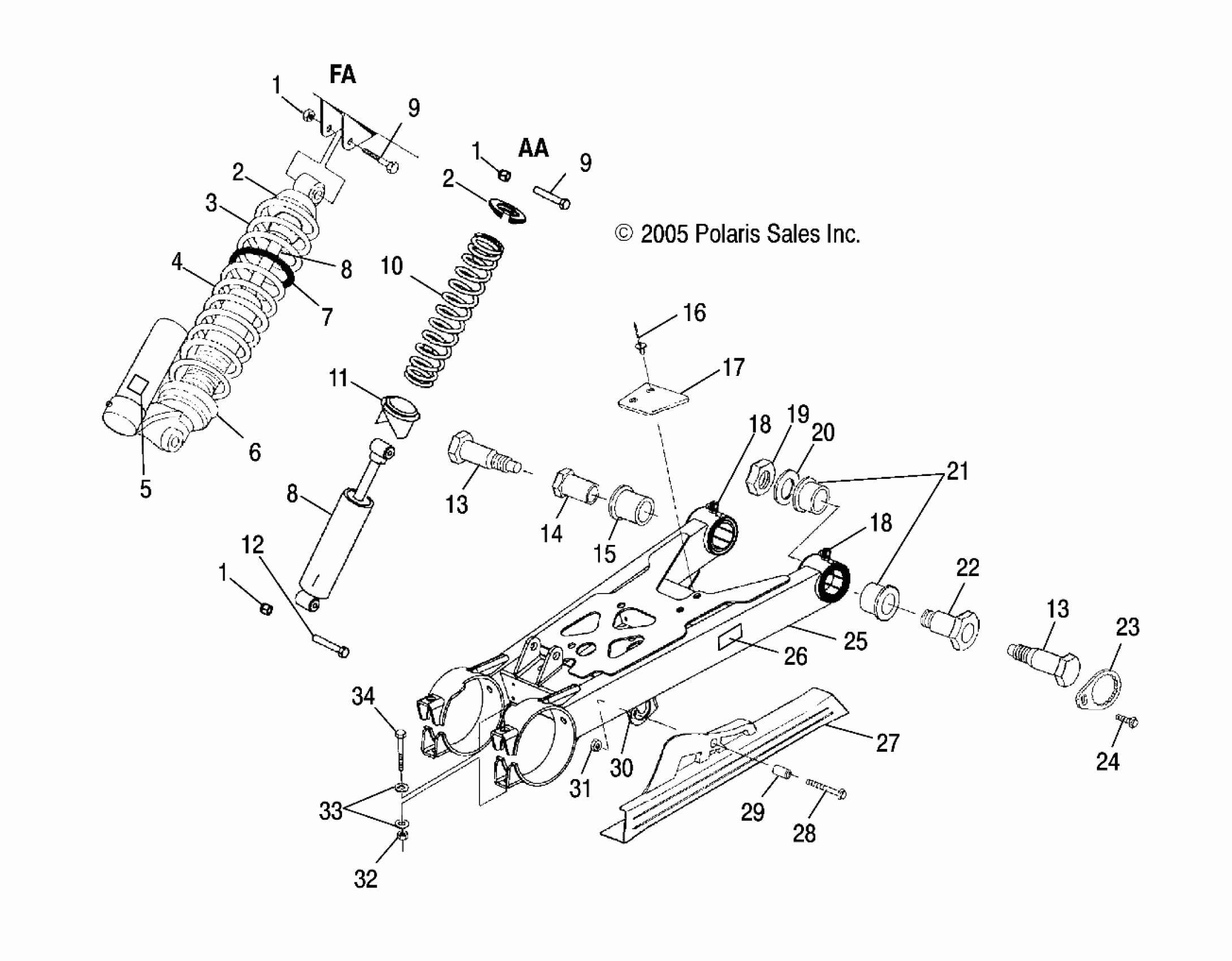

Polaris SCRAMBLER 500 4X4 - A06BG50AA SWING ARM/SHOCK MOUNTING - A06BG50AA/FA (4999201549920154C07) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.19

1

Nut, Nylok

7542439

$1.19

1

Nut, Nylok

7542439

$1.19

2

Retainer, Spring

5631045

$10.32

2

Retainer, Spring

5631045

$10.32

3

Spring, Compression, Cld. Slv. [FA]

7041865-385

Unavailable

4

Spring, Compression, Cld. Slv. [FA]

7041864-385

Unavailable

5

Decal, Warning, Fox Shock

7075343

Unavailable

6

Ring, Spring Preload

1500278

$42.89

7

Spacer, Spring [FA]

5433550

$13.10

8

Shock, Rear [AA]

7042319

Unavailable

8

Shock, Rear [FA]

7041867

Unavailable

8

Shock, Rear [AA]

7042319

Unavailable

8

Shock, Rear [FA]

7041867

Unavailable

9

Screw

7515415

$1.19

9

Screw

7515415

$1.19

10

Spring, Compression, C. Silver [AA]

7043068-385

Unavailable

11

CAM, ADJUSTING, SPRING

5630551

$36.41

12

SCREW

7517761

$5.56

13

Bolt, Pivot

5134321

$40.46

13

Bolt, Pivot

5134321

$40.46

14

Bushing, Pivot, LH

5133166

$31.75

15

Bushing, LH

5434545

$8.73

16

Rivet

7661046

$3.97

17

Guide, Chain, Pad

5432727

Unavailable

18

Fitting

7080510

$5.56

18

Fitting

7080510

$5.56

19

Nut, Hex, Jam

7547082

$32.37

20

Washer, Flat

7556035

Unavailable

21

Bushing, RH

5434546

$8.73

22

Bushing, Pivot, RH

5133167

$35.71

23

Bracket, Bolt Lock

5247488

Unavailable

24

SCREW

7515399

$1.19

25

Asm., Swing Arm, Cloud Silver [Incl. 15,18,21]

1541988-385

$288.99

26

Decal, "Chain Free Play"

7078572

Unavailable

27

Guard, Chain

5432854

Unavailable

28

Screw, Flanged

7515304

$5.56

29

Bushing

5332828

$9.70

30

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

31

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

32

Nut, Nylok

7547066

$1.59

33

Washer

7555883

$3.97

34

Bolt

7512576

$7.94
