- SCRAMBLER 500 4X4 - A06BG50AA
GEARCASE - A06BG50AA/FA (4999201549920154C09)

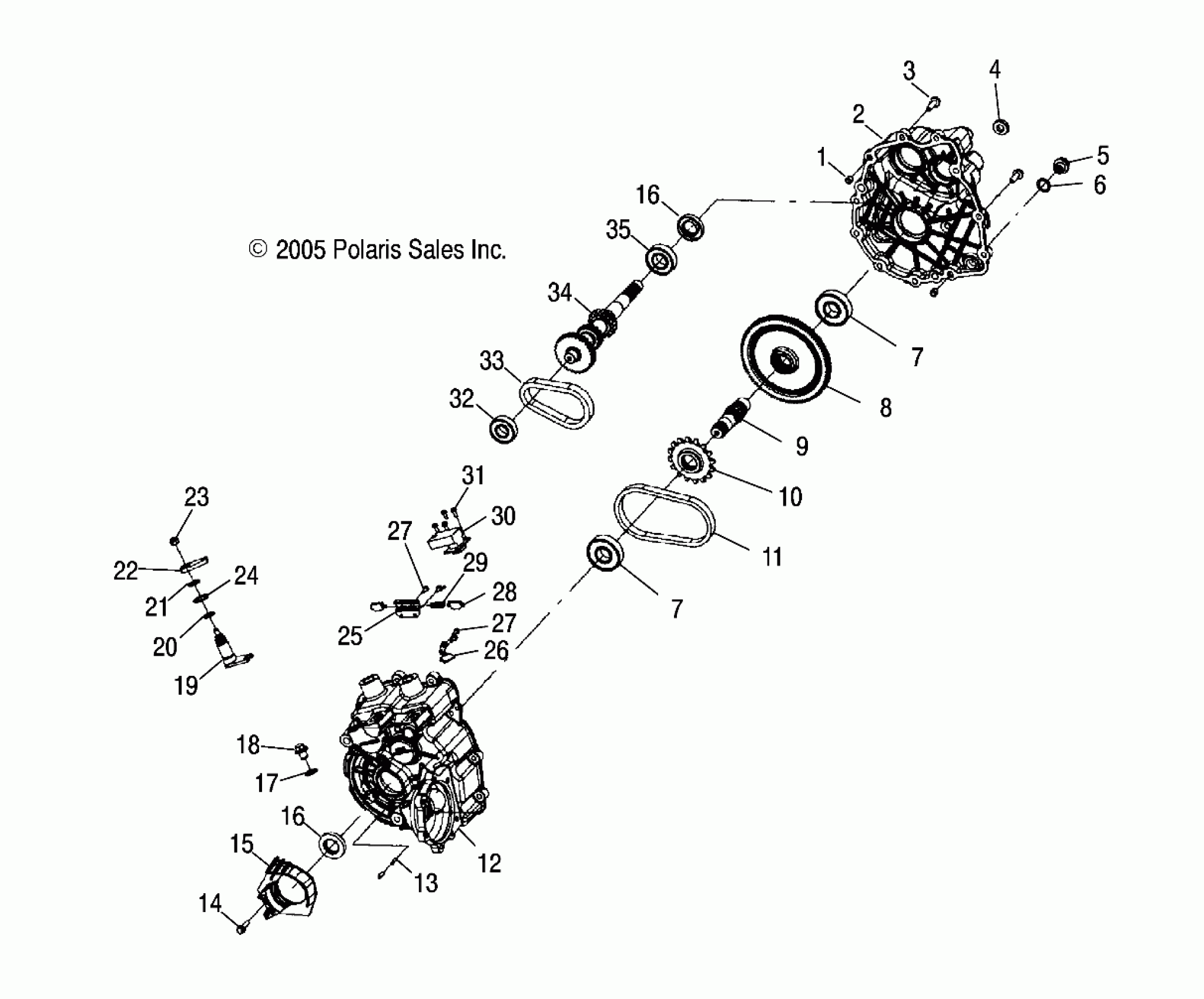

Polaris SCRAMBLER 500 4X4 - A06BG50AA GEARCASE - A06BG50AA/FA (4999201549920154C09) Diagram
#
Description
Price
-
Asm., Gearcase [Incl. All]
1341502
$1,814.99
1
Pipe, Knock
3233529
$7.99
2
Gearcase, LH
3234036
$354.99
3
Screw
3233252
$5.27
4
Bushing, Pivot
3233527
$35.19
5
Plug
3233448
$23.99
6
Washer
3234034
Unavailable
7
BEARING
3233020
$47.99
7
BEARING
3233020
$47.99
8
Gear, 98T
3233558
$213.59
9
Shaft, Output
3233544
$174.99
10
Sprocket, 16T
3233545
$55.99
11
Chain, Roller
3233546
$67.99
12
Gearcase, RH
3233896
$469.99
13
Vent
3233037
Unavailable
14
Screw
3233026
$6.46
15
Guide, Chain
3233897
$48.39
16
Seal, Triple Lip
3233788
$31.99
16
Seal, Triple Lip
3233788
$31.99
17
Washer, Nylon
3233872
$9.59
18
Plug, Oil Fill
3233711
Unavailable
19
Shaft, Shift, High/Reverse
3233559
$72.84
20
O-Ring
3233548
$27.99
21
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
$4.79
22
Bellcrank, .125
3234148
$39.99
23
NUT, LOCK
3233961
$2.79
24
Washer
3233040
$9.59
25
Bracket, Interlock
3233309
$20.63
26
Deflector, Oil
3233043
$13.19
27
Screw, Tapping
3233747
Unavailable
27
Screw, Tapping
3233747
Unavailable
28
Pin, Interlock
3233308
Unavailable
29
Spring, Shifting, Interlock
3233550
Unavailable
30
Switch, 3 Position
3234002
$174.99
31
SCREW
3233749
$5.59
32
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
33
Chain, Silent
3233036
Unavailable
34
Shaft, Input, High/Reverse
3233536
$220.49
35
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
