- SCRAMBLER 500 4X4 - A06BG50AA
ENGINE MOUNTING - A06BG50AA/FA (4999201549920154A09)

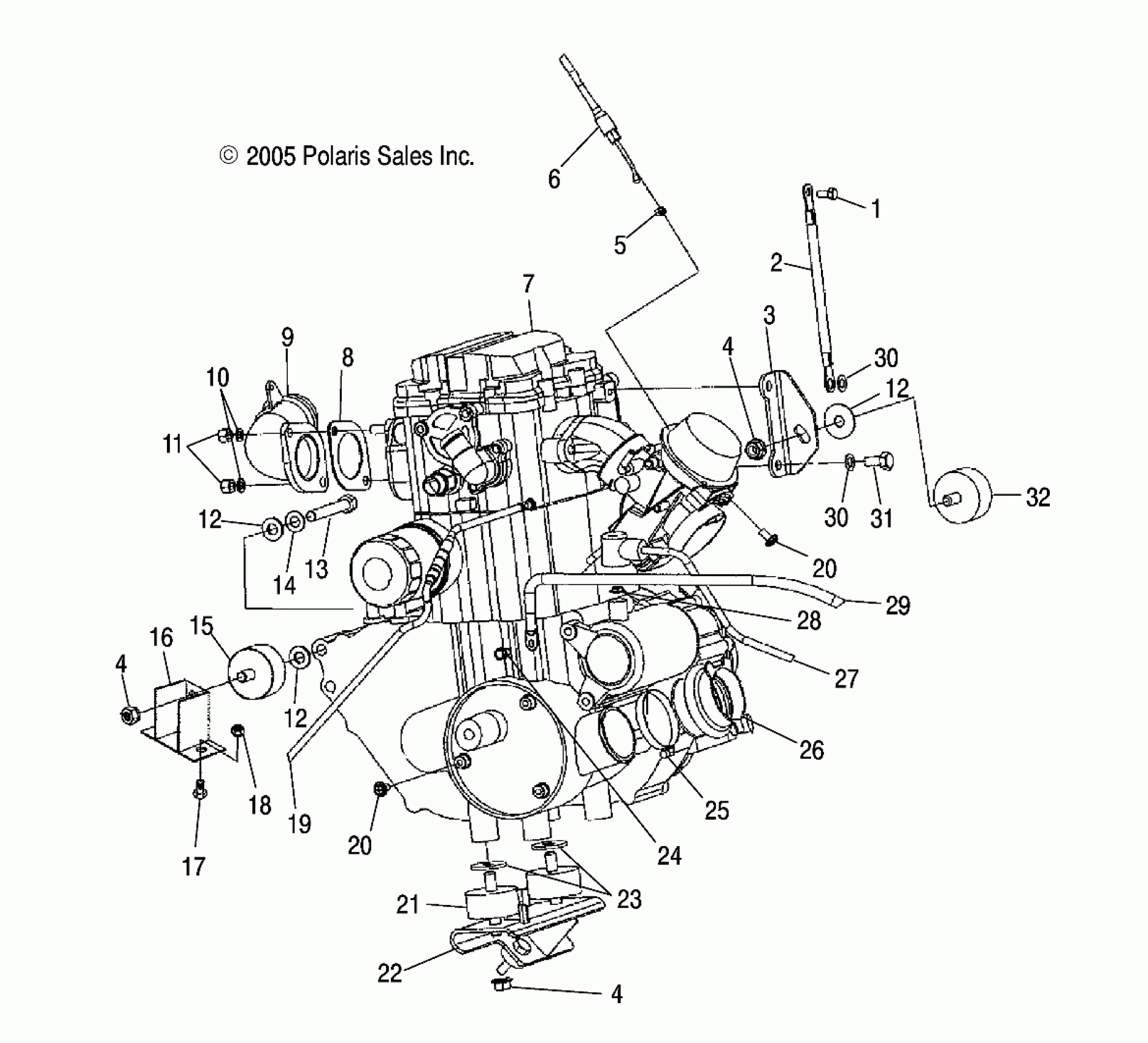

Polaris SCRAMBLER 500 4X4 - A06BG50AA ENGINE MOUNTING - A06BG50AA/FA (4999201549920154A09) Diagram
#
Description
Price
1
SCREW
7517386
$1.49
2
Cable, Ground, Engine
4010132
Unavailable
3
Bracket, Engine Mount, Top
5242674
Unavailable
4
NUT
7547108
$4.79
4
NUT
7547108
$4.79
4
NUT
7547108
$4.79
5
Guide, Cable
3084696
$9.59
6
Cable, Throttle
7081170
Unavailable
7
Engine, Short Block, EH500PLE125 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required f
1203118
Unavailable
8
GASKET
3085075
$39.99
9
Manifold, Black
1261171-029
$189.99
10
Washer, Spring
3080051
Unavailable
11
Nut
3087199
Unavailable
12
WASHER
7555823
$3.99
12
WASHER
7555823
$3.99
12
WASHER
7555823
$3.99
13
SCREW
7515417
$4.79
14
Washer, Spring Lock
7552603
$1.49
15
Mount, Motor
3110067
Unavailable
16
Mount, Engine, Front, Black
1040688-067
$14.68
17
SCREW
7515398
$2.39
18
NUT-5/16-18 NYLOK-Y
7542324
$1.49
19
Cable, Choke
7081177
$43.99
20
Asm., Screw and Washer
3084205
$3.99
20
Asm., Screw and Washer
3084205
$3.99
21
Mount, Rubber, Front
3110046
Unavailable
22
Mount, Engine, Rear, Black
1014993-067
$24.79
23
Washer
7555815
$3.99
24
ASM., BOLT AND WASHER
3082038
$3.99
25
Clamp
7080511
$4.79
26
BOOT, CLUTCH INTAKE
5412487
Unavailable
27
Cable, Solenoid/Starter
4010093
$47.99
28
NUT, FLANGE
3083649
$3.99
29
Cable, Battery/Engine
4010095
Unavailable
30
WASHER, SPRING LOCK
7552901
$1.49
30
WASHER, SPRING LOCK
7552901
$1.49
31
BOLT
7512315
$4.79
32
Mount, Rubber, Top
3110044
Unavailable
