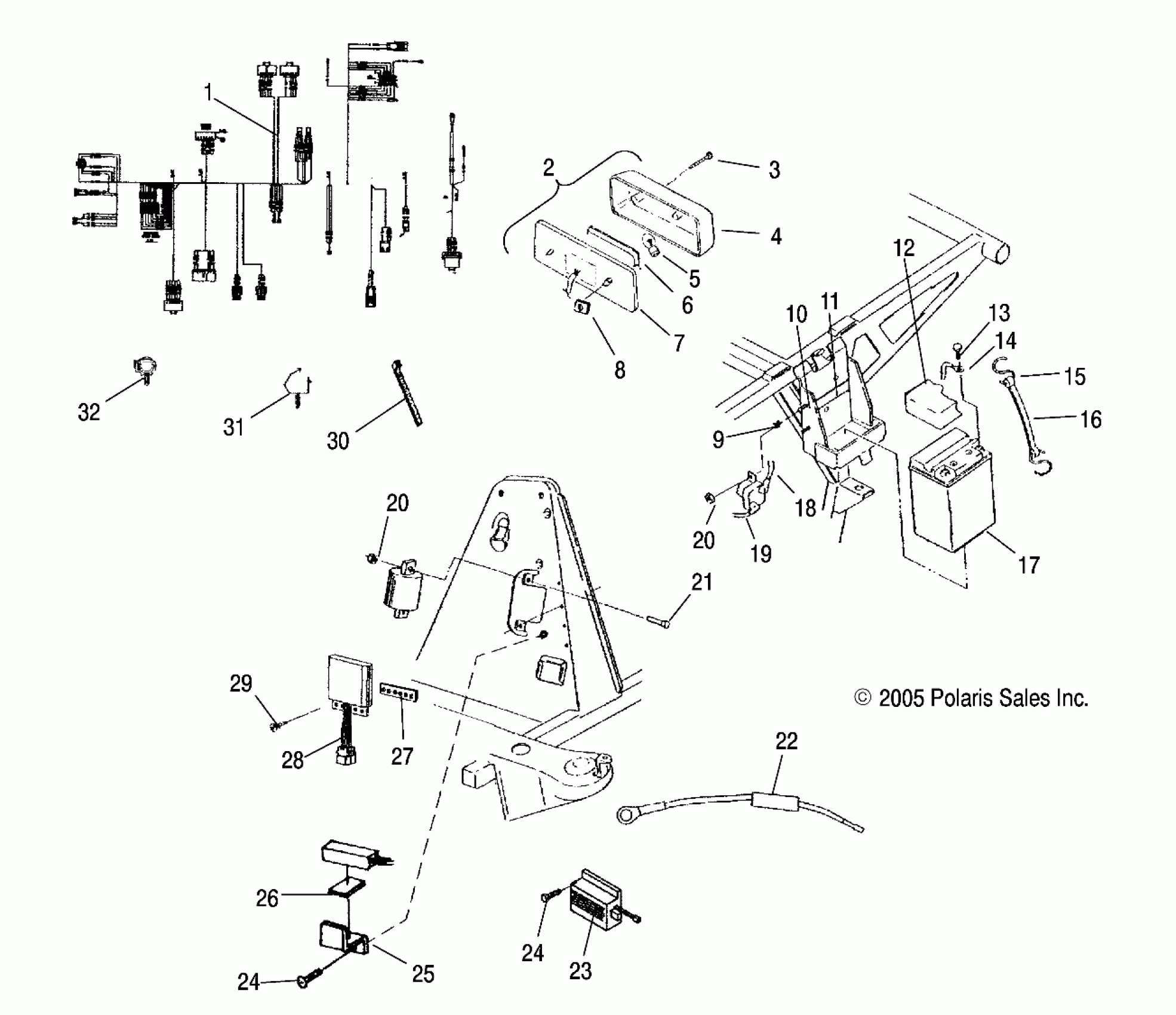

Polaris SCRAMBLER 500 4X4 - A06BG50AA ELECTRICAL/TAILLIGHT - A06BG50AA/FA (4999201549920154C06) Diagram

#

Description
Price

1

Harness, Main [Incl. Fuse Link Kit 2202147]

2410505

Unavailable

2

Asm., Taillight, 12V [Incl. 3-7][AA]

2410319

$83.99

3

Screw

7512088

$2.39

4

Lens

4032085

$36.41

5

Bulb

4030043

$6.46

6

Gasket

4032086

Unavailable

7

Backing

4032087

Unavailable

8

Clip, Retainer

7670093

$5.99

9

Washer

7571602

$4.79

10

Screw

7512027

$1.49

11

PAD-BATTERY

5810290

$7.27

12

Cover, Battery

5431769

$14.39

13

KIT, BATTERY BOLT

2202848

$4.39

14

Cable, Battery/Engine

4010095

Unavailable

15

Hook, Battery Strap

7010032

$1.59

16

STRAP, BATTERY HOLDDOWN

5412499

$4.62

17

Battery [FA]

4140006

$99.99

17

Battery [AA]

4011138

$107.99

18

Cable, Battery/Solenoid

4010094

Unavailable

19

Cable, Solenoid/Starter

4010093

$47.99

20

Nut, Nylok

7541925

$1.49

20

Nut, Nylok

7541925

$1.49

21

BOLT

7512007

$3.99

22

Kit, Fusible Link

2202147

$79.99

23

Controller, Module

4011110

$159.99

24

SCREW

7512024

$4.79

24

SCREW

7512024

$4.79

25

BRACKET, CDI

5246747

$7.99

26

Pad

5810317

Unavailable

27

Heat, Sink

5210650

Unavailable

28

Limiter

4010994

Unavailable

29

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

30

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

31

CLIP, ROUTING

7670109

$2.39

32

CLIP, ROSEBUD

4020139

$4.79
