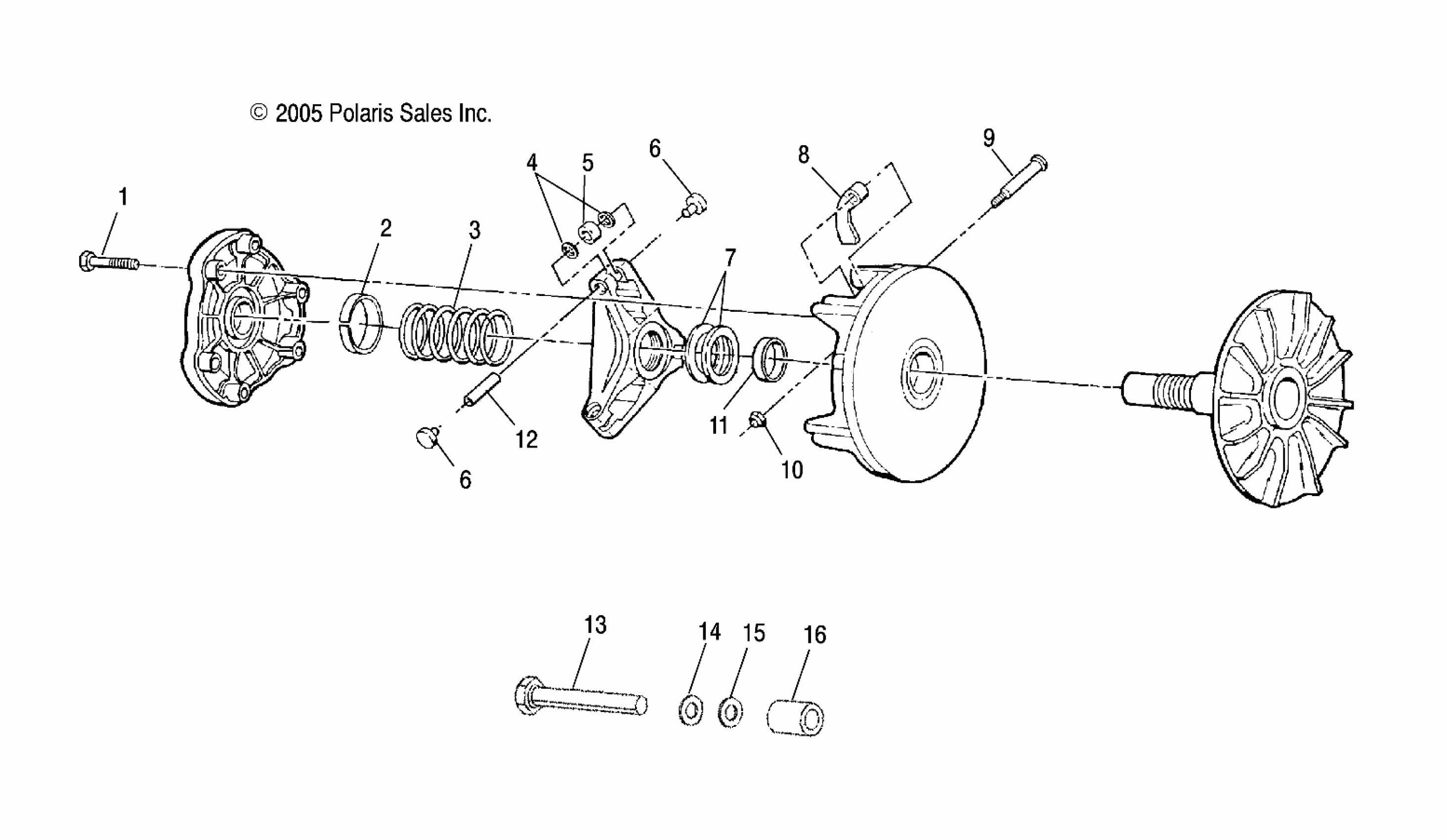

Polaris SCRAMBLER 500 4X4 - A06BG50AA DRIVE CLUTCH and MOUNTING - A06BG50AA/FA (4999206649920664C06) Diagram

#

Description
Price

-

Asm., Drive Clutch, Basic [Incl. All Less Spring and Weights]

1321976

$697.13

1

Bolt

7518062

$4.79

2

Bearing, Cover

3576510

$9.59

3

SPRING, CLUTCH

7041157

$47.99

4

WASHER,MULTILUBE

5430945

$1.59

5

ASM-ROLLER AND BUSHING

1321457

$40.46

6

Button, Guide, Stemless

5431936

Unavailable

6

Button, Guide, Stemless

5431936

Unavailable

7

SPACER, .050

5210754

Unavailable

7

SPACER, .025

5242981

Unavailable

7

SPACER, .020

5210752

Unavailable

7

SPACER, .032

5210753

Unavailable

8

WEIGHT, SHIFT, 10-WHF

5632283

$41.79

9

BOLT, SHOULDER

7512266

$3.19

10

NUT, FLEXLOC

7541906

$3.19

11

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

12

PIN-ROLLER

5020422

$2.39

13

BOLT

7512566

$30.79

14

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

15

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

16

BUSHING-.437 X.770 X.50

5430261

$7.19
