- SCRAMBLER 500 4X4 - A06BG50AA
CYLINDER - A06BG50AA/FA (4999201549920154C14)

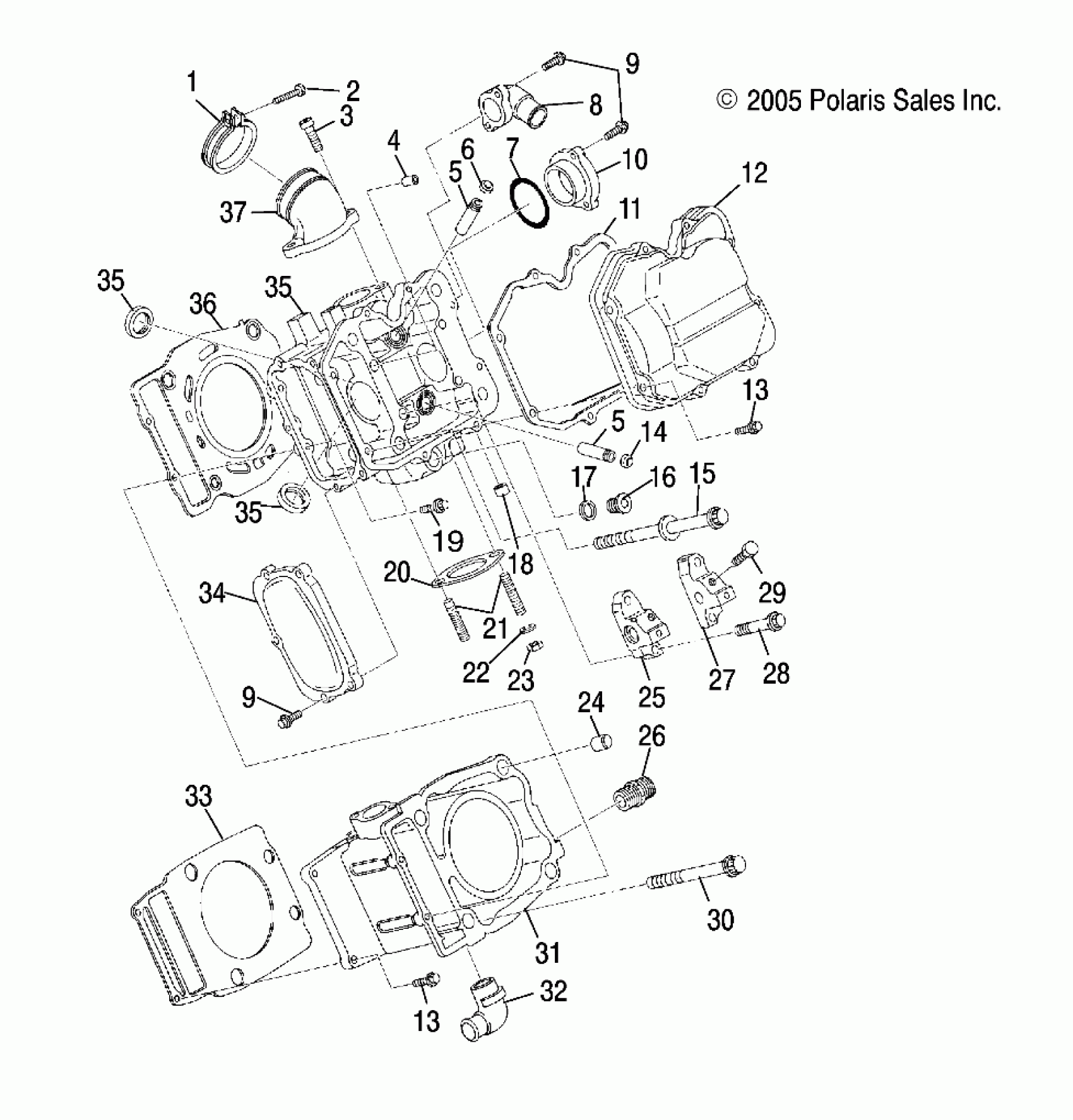

Polaris SCRAMBLER 500 4X4 - A06BG50AA CYLINDER - A06BG50AA/FA (4999201549920154C14) Diagram
#
1
Asm., Band [Incl. 2]
3084045
Unavailable
2
ASM., SCREW AND WASHER
3081497
$2.39
3
BOLT, SOCKET HEAD
3081330
$3.99
4
Pin, Straight
3084857
Unavailable
5
GUIDE, VALVE
3084994
$39.99
5
GUIDE, VALVE
3084994
$39.99
6
Seal, Intake Valve
3084858
$13.59
7
O-RING
3084867
$23.99
8
ADAPTER
3084870
$59.99
9
BOLT, FLANGE
3084877
Unavailable
9
BOLT, FLANGE
3084877
Unavailable
10
ADAPTER, CAMSHAFT
3084866
Unavailable
11
GASKET, ROCKER COVER
3085074
$31.99
12
COVER, ROCKER
3085073
$75.99
13
BOLT, FLANGE
3084874
Unavailable
13
BOLT, FLANGE
3084874
Unavailable
14
SEAL, EXHAUST VALVE
3084859
$23.99
15
BOLT
3084875
Unavailable
16
PLUG
3084860
$7.19
17
GASKET
3084861
$4.79
18
PLUG, BLIND
3084862
Unavailable
19
Bolt, Flange
3086781
$4.79
20
GASKET
3085075
$39.99
21
Stud
3085326
Unavailable
22
Washer, Spring Lock
3080530
$3.19
23
Nut
3087199
Unavailable
24
PIPE, KNOCK
3087266
Unavailable
25
Support, Valve Rocker Shaft [MAG]
3084863
$91.99
26
Union
3084849
Unavailable
27
Support, Valve Rocker Shaft [PTO]
3084864
Unavailable
28
BOLT
3084876
$4.79
29
BOLT, ROCKER SHAFT
3085854
Unavailable
30
BOLT, FLANGE
3084873
Unavailable
31
Asm., Cylinder [Incl. 32]
3089256
$417.29
32
Pipe 2, Elbow
3086747
Unavailable
33
Gasket, Cylinder
3085370
$38.60
34
COVER, CAMSHAFT
3089242
$55.99
35
Head, Cylinder [Incl. 4-6,14,16-18,21]
3085527
$712.79
35
Head, Cylinder [Incl. 4-6,14,16-18,21]
3085527
$712.79
35
Head, Cylinder [Incl. 4-6,14,16-18,21]
3085527
$712.79
36
GASKET, HEAD
3085371
$55.99
37
ADAPTER
3085809
Unavailable
