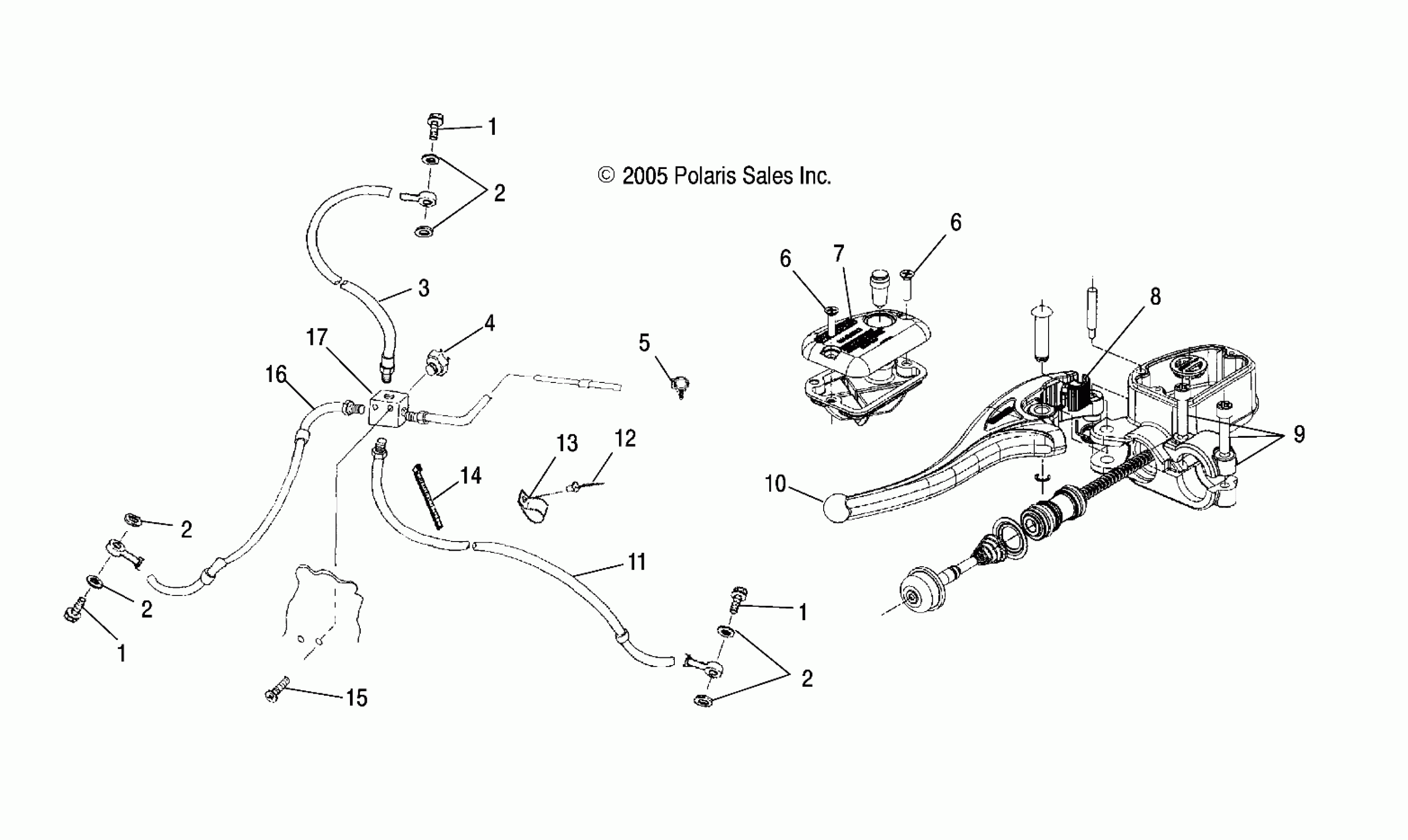

Polaris SCRAMBLER 500 4X4 - A06BG50AA CONTROLS - MASTER CYLINDER/BRAKE LINE - A06BG50AA/FA (4999201549920154C01) Diagram

#

Description
Price

-

Asm., Master Cylinder [Incl. All]

2010238

$246.89

1

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

1

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

1

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

3

Line, Brake

1910470

$89.03

4

Switch, Stoplight

4110164

$204.24

5

Clip, Rosebud

4020149

$6.35

6

SCREW

7517899

$1.19

6

SCREW

7517899

$1.19

7

Kit, Master Cylinder Cap [Incl. Cap, Screws, Sight, Gasket]

2201834

$52.60

8

KIT, MASTER CYLINDER PARK BRAKE LEVER [INCL. LEVER, SPRING]

2201836

$44.51

9

KIT, MASTER CYLINDER CLAMP [INCL. CLAMP, SCREWS]

2201833

$47.62

10

KIT, MASTER CYLINDER LEVER [INCL. PIN, LEVER, CLIP]

2201835

$60.70

11

LINE, BRAKE, LEFT FRONT

1910838

$76.89

12

Rivet

7621462

$1.19

13

Clamp, Nylon

7080539

$4.76

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

SCREW

7512024

$4.76

16

LINE, BRAKE, RIGHT FRONT

1910839

$76.89

17

FITTING, CROSS

7052292

$39.68
