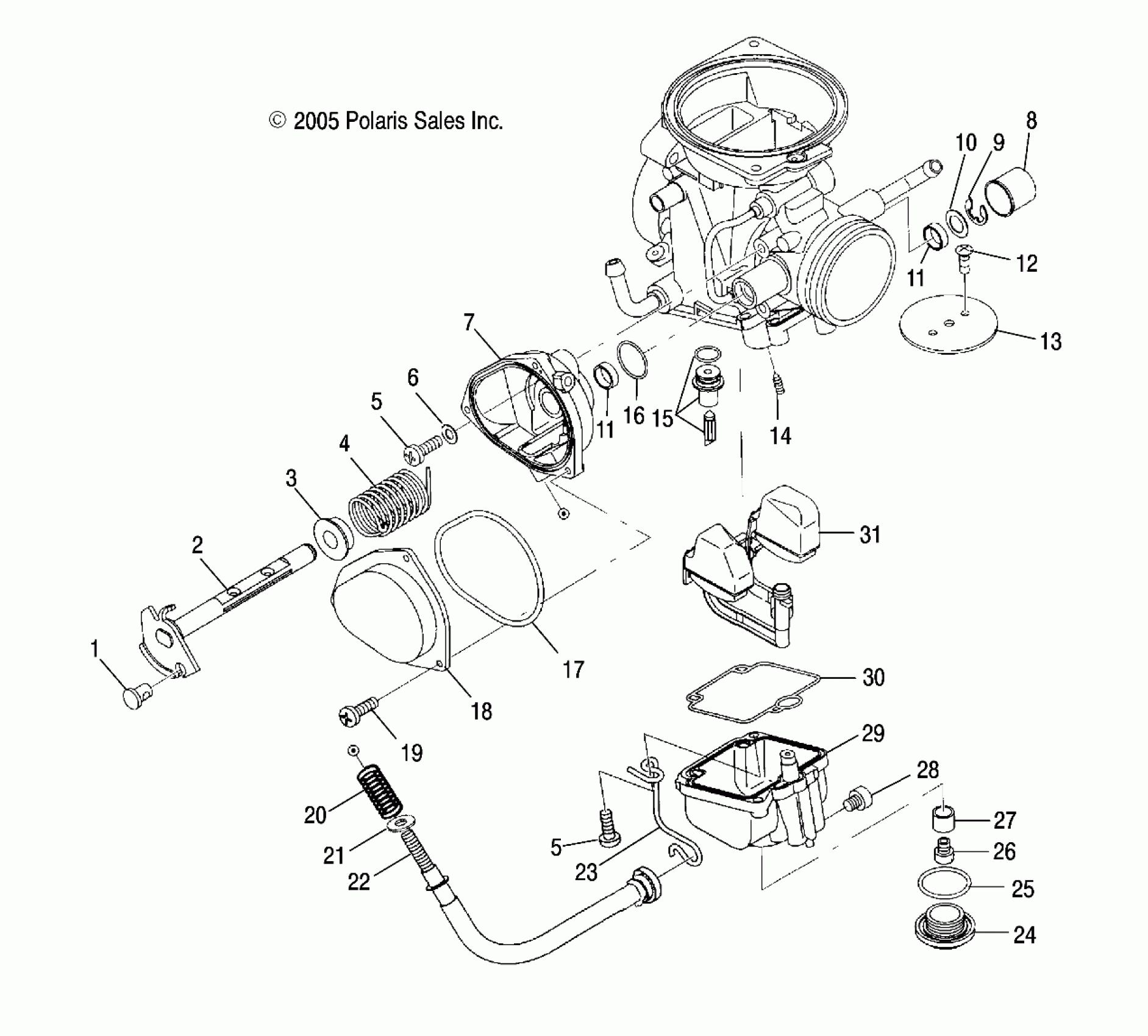

Polaris SCRAMBLER 500 4X4 - A06BG50AA CARBURETOR, LOWER - A06BG50AA/FA (4999201549920154D02) Diagram

#

Description
Price

1

GUIDE, CABLE

3130543

$32.37

2

Asm., Throttle Shaft

3130931

$64.75

3

RING

3130932

$1.99

4

SPRING

3130927

$6.99

5

SCREW

3130933

$2.38

5

SCREW

3130933

$2.38

6

WASHER

3130926

$3.97

7

CASE

3130925

$69.99

8

CAP

3130519

$10.51

9

E-RING

3130518

Unavailable

10

PACKING

----

Unavailable

11

SEAL

3130515

$12.13

11

SEAL

3130515

$12.13

12

SCREW

3131475

$3.97

13

VALVE, THROTTLE, 120

3130907

$54.99

14

JET, PILOT, #40

3130624

$28.32

15

VALVE, NEEDLE, 1.5

3131359

$72.84

16

O-RING

3130928

$6.46

17

O-RING

3130929

$14.24

18

COVER

3130930

$36.41

19

SCREW

3130924

$1.59

20

SPRING, THROTTLE ADJUSTER

3130010

$9.70

21

WASHER

3131296

$9.52

22

ASM., ADJUSTER, CABLE

3131295

Unavailable

23

CLIP

3131242

$33.24

24

BOLT, BANJO

3130321

$23.81

25

O-RING

3130239

Unavailable

26

JET, MAIN, #155

3130571

$8.89

27

RING

3130919

Unavailable

28

SCREW

3130935

$6.64

29

Asm., Float Body

3130923

$75.54

30

SEAL

3130917

$7.27

31

ASM., FLOAT

3130921

$75.54
