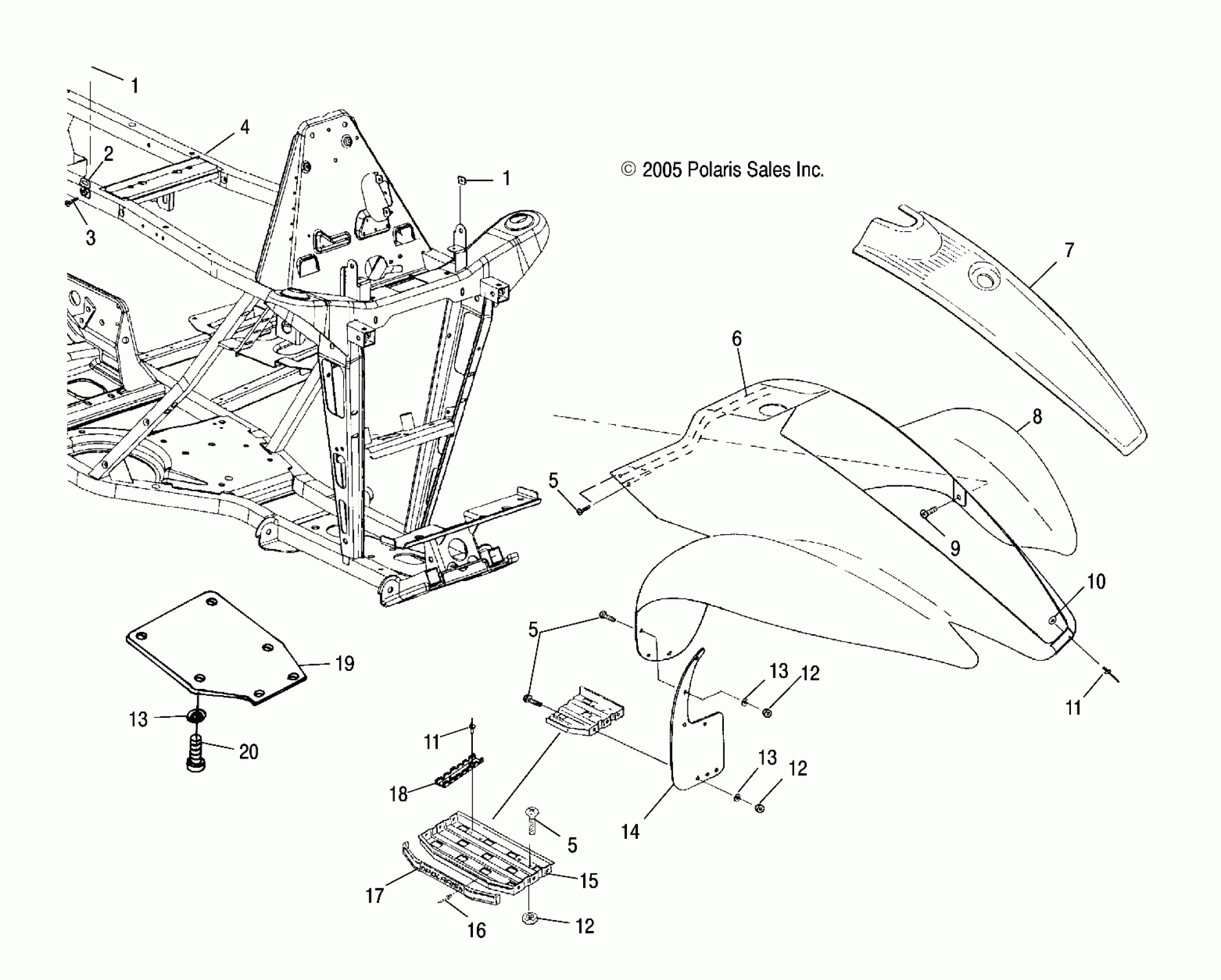

Polaris SCRAMBLER 500 4X4 - A06BG50AA CAB, FRONT - A06BG50AA/FA (4999201549920154A03) Diagram

#

Description
Price

1

NUT, SPEED

7670057

$1.49

1

NUT, SPEED

7670057

$1.49

2

Bracket, Cab Mount, LH

5248183

$3.83

2

Bracket, Cab Mount, RH

5248184

$45.24

3

SCREW

7517386

$1.49

4

Frame, Main, Black

1014660-067

Unavailable

5

Bolt

7512282

$1.49

5

Bolt

7512282

$1.49

5

Bolt

7512282

$1.49

6

Foam, Seal

5811527

Unavailable

7

Cover, Front, Black

5432553-070

$111.10

8

Asm., Cab, Front, Cosmic Sunburst [w/Warning Decals]

2632993-496

$283.99

9

Screw

7517916

$6.39

10

Washer, Flat

7558201

$5.79

11

RIVET

7621472

$1.49

11

RIVET

7621472

$1.49

12

Nut, Nylok

7542122

$1.49

12

Nut, Nylok

7542122

$1.49

12

Nut, Nylok

7542122

$1.49

13

Washer, Flat

7555859

$1.49

13

Washer, Flat

7555859

$1.49

13

Washer, Flat

7555859

$1.49

14

Mudflap, Front, RH

5850150

Unavailable

14

Mudflap, Front, LH

5811831

Unavailable

15

Footpad, Black

1014653-067

$73.81

16

Rivet

7661825

$1.49

17

Trim, Footrest

5431484

Unavailable

18

Bracket, Heel Cleat, Black

5242525-067

$16.47

19

Guard, Rock

5432763

$87.99

20

Screw

7515179

$2.39
