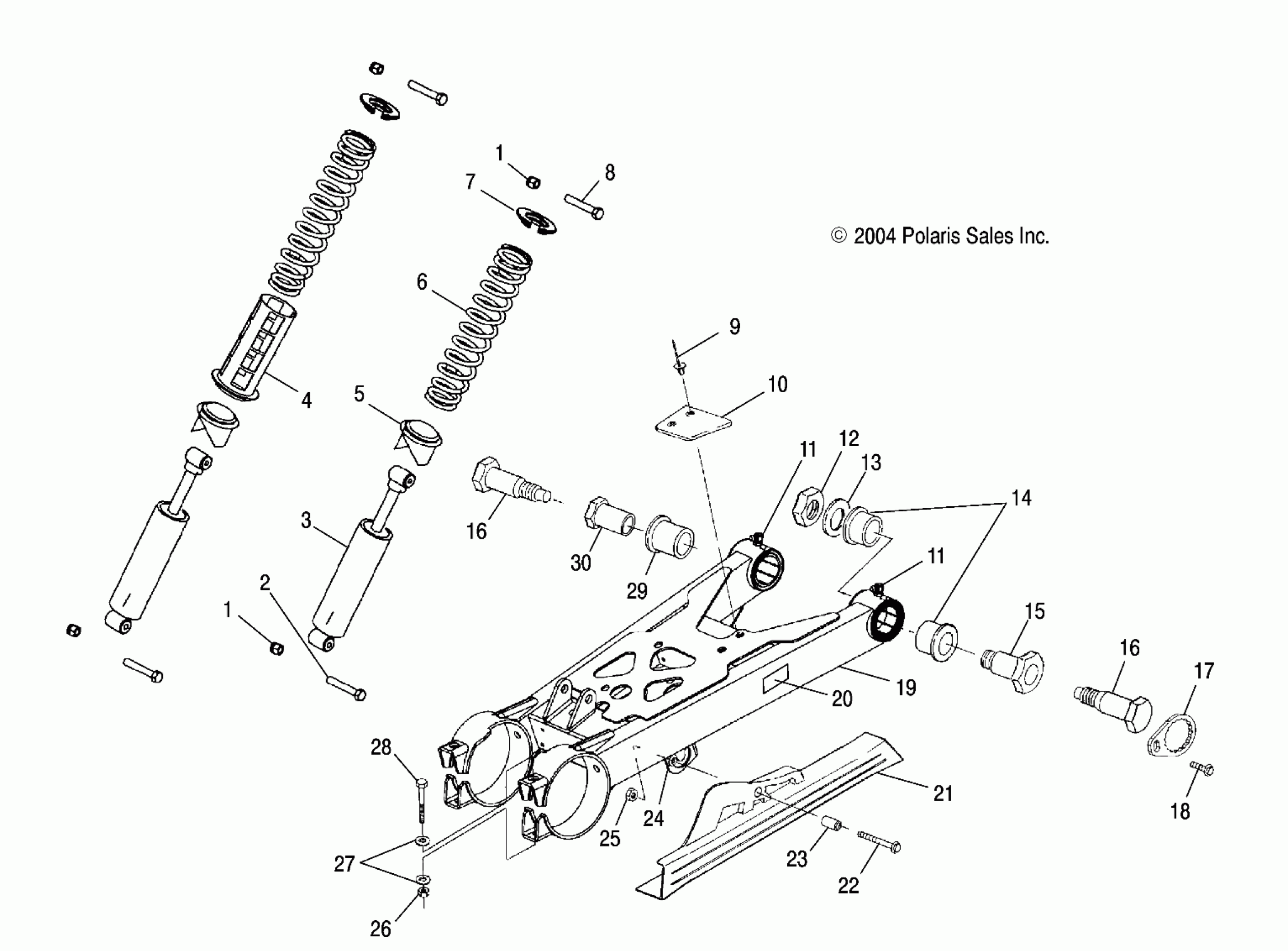

Polaris SCRAMBLER 500 4X4 - A05BG50AA SWING ARM/SHOCK MOUNTING - A05BG50AA/FA (4994789478C07) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.19

1

Nut, Nylok

7542439

$1.19

2

SCREW

7517761

$5.56

3

Shock, Rear [AA]

7042319

Unavailable

3

Shock, Rear [FA]

7041867

Unavailable

4

Sleeve, Shock Protector [FA]

5435273

$44.51

5

CAM, ADJUSTING, SPRING

5630551

$36.41

6

Spring, Compression, Screaming Yellow [FA]

7042281-216

Unavailable

6

Spring, Compression, Screaming Yellow [AA]

7043068-216

Unavailable

7

Retainer, Spring

5631045

$10.32

8

Screw

7515415

$1.19

9

Rivet

7661046

$3.97

10

Guide, Chain, Pad

5432727

Unavailable

11

Fitting

7080510

$5.56

11

Fitting

7080510

$5.56

12

Nut, Hex, Jam

7547082

$32.37

13

Washer, Flat

7556035

Unavailable

14

Bushing, Swing Arm, RH

5434546

$8.73

15

Bushing, Swing Arm Pivot, RH

5133167

$35.71

16

Bolt, Swing Arm Pivot

5134321

$40.46

16

Bolt, Swing Arm Pivot

5134321

$40.46

17

Bracket, Bolt Lock

5247488

Unavailable

18

SCREW

7515399

$1.19

19

Asm., Swing Arm, Screaming Yellow [Incl. 11,14,29]

1541988-216

Unavailable

20

Decal, "Chain Free Play"

7078572

Unavailable

21

Guard, Chain

5432854

Unavailable

22

Screw, Flanged

7515304

$5.56

23

Bushing

5332828

$9.70

24

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

25

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

26

Nut, Nylok

7547066

$1.59

27

Washer

7555883

$3.97

28

Bolt

7512576

$7.94

29

Bushing, Swing Arm, LH

5434545

$8.73

30

Bushing, Swing Arm Pivot, LH

5133166

$31.75
