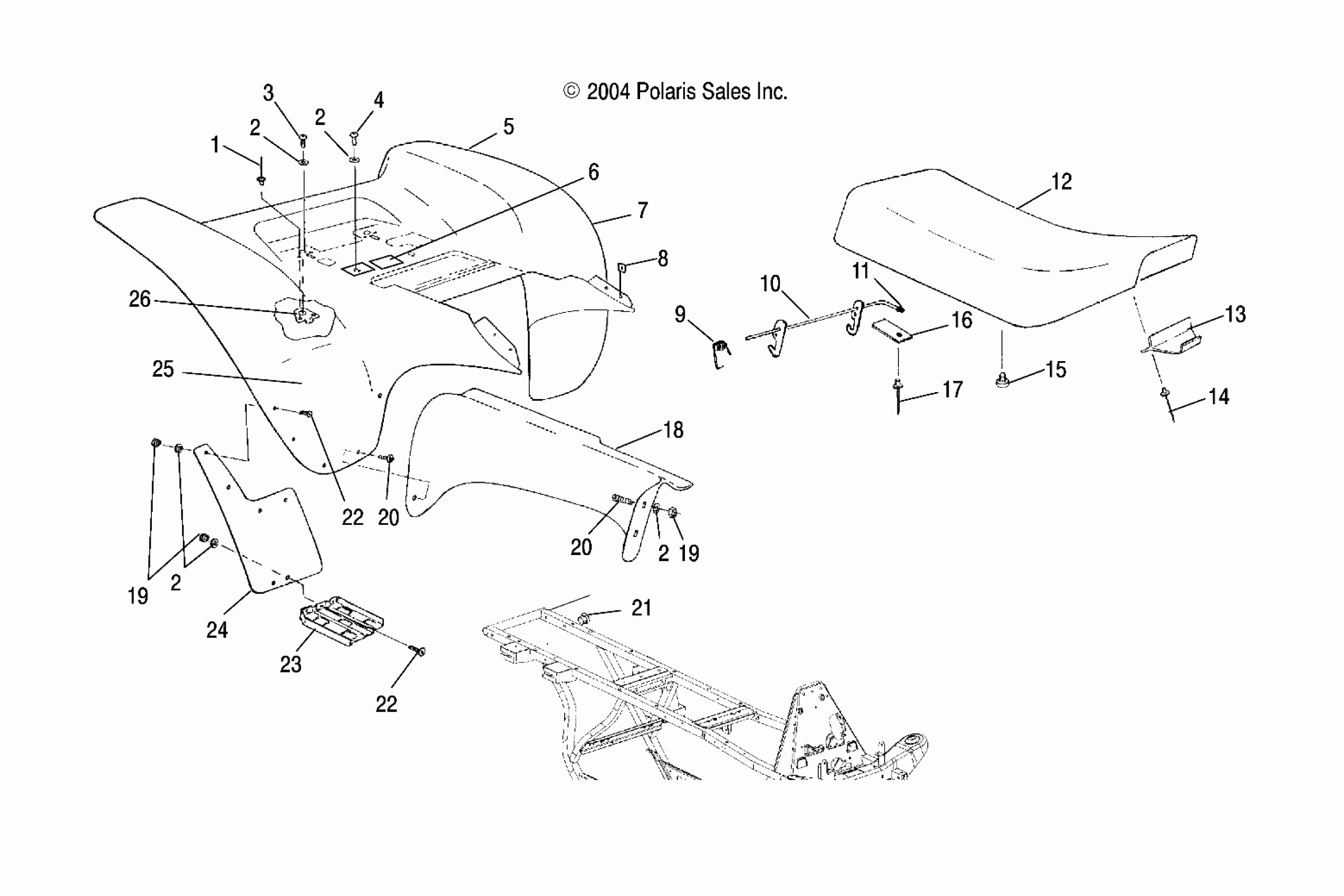

Polaris SCRAMBLER 500 4X4 - A05BG50AA REAR CAB - A05BG50AA/FA (4994789478A04) Diagram

#

Description
Price

1

RIVET

7621472

$1.49

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

2

Washer, Flat

7555859

$1.19

3

Bolt

7512232

$1.19

4

SCREW

7512242

$2.38

5

Foil, Rear Cab, Small

5810991

Unavailable

6

Decal, Carburetor/Filter Information

7079902

Unavailable

7

Cab, Rear, Black Metallic

5430007-177

Unavailable

8

NUT, SPEED

7670057

$1.19

9

Spring, Latch, Light

7041607

Unavailable

10

Latch, Seat, Black

1040412

Unavailable

11

Cap, Seat Latch

5411392

Unavailable

12

Cover, Seat, Black

2683328-070

Unavailable

12

Asm., Seat, Black w/White POLARIS

2683329-070

Unavailable

13

Tongue, Seat

5431986

$10.51

14

RIVET

7621479

$1.98

15

BUMPER-RUBBER

5412067

$3.97

16

BRACKET, LEVER RETAINER

5211033

$34.99

17

RIVET

7621403

$1.19

18

Foil, Heat Shield

5811230

Unavailable

18

Asm., Shield, Muffler w/Foil

2632280

Unavailable

19

Nut, Nylok

7542122

$1.19

19

Nut, Nylok

7542122

$1.19

20

Screw

7517264

$3.97

20

Screw

7517264

$3.97

21

Plug, End Cap, Ribbed

5432831

$5.65

22

Bolt

7512282

Unavailable

22

Bolt

7512282

Unavailable

23

FOOTPAD, BLACK [SEE FRONT CAB PG. A3, REF. 15]

----

Unavailable

24

Mudflap, Rear, RH

5812543

Unavailable

24

Mudflap, Rear, LH

5812134

Unavailable

25

Foil, Rear Cab

5810957

Unavailable

26

Bracket, Rear Holddown

5220880

Unavailable
