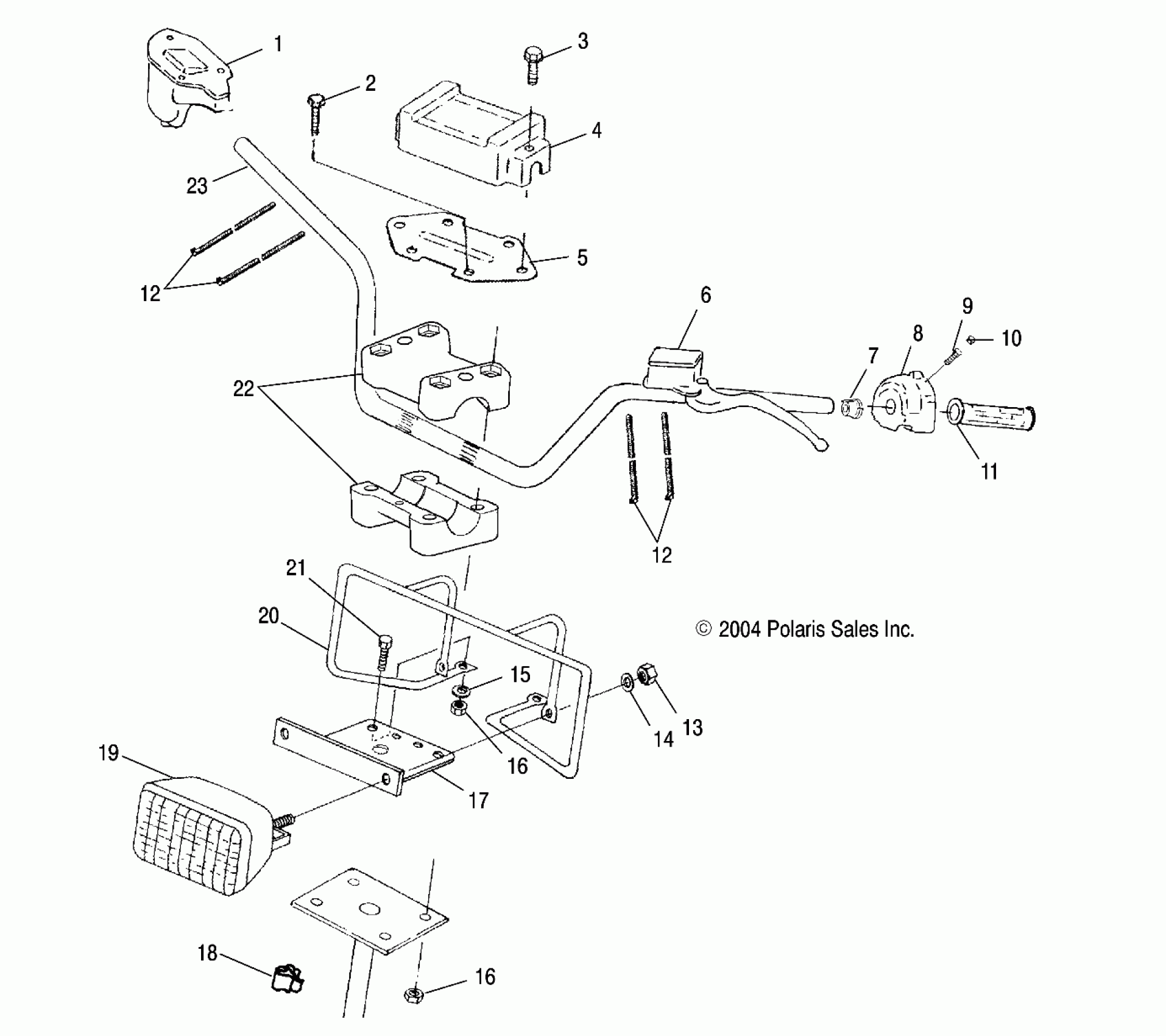

Polaris SCRAMBLER 500 4X4 - A05BG50AA HANDLEBAR/HEADLIGHT - A05BG50AA/FA (4994789478B06) Diagram

#

Description
Price

1

ASM., THROTTLE CONTROL [SEE CONTROLS-THROTTLE ASM./CABLE PG. B8, REF. 5]

-------

Unavailable

2

SCREW

7515189

Unavailable

3

Screw

7517395

Unavailable

4

Pad, Handlebar

5433993

Unavailable

5

Mount, Handlebar Pad

5245051

$5.75

6

ASM., MASTER CYLINDER [SEE CONTROLS-MASTER CYLINDER/BRAKE LINE PG. C1 FOR DETAILS]

-------

Unavailable

7

Spacer, Switch, LH

5433903

Unavailable

8

Switch, Handlebar, Hi/Lo/Off

4010592

$38.60

9

SCREW, SET

7517625

$4.79

10

PLUG, HOLE

5432952

$5.59

11

Grip, Handlebar, Black

5433834-070

$24.27

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

Washer, Flat

7558301

$1.49

16

Nut, Nylok

7542122

$1.49

16

Nut, Nylok

7542122

$1.49

17

Bracket, Electric/Speedo, Headlight, Black

5242867-067

Unavailable

18

Clip, Cable Retaining

7080631

$6.29

19

Bulb, Headlamp

4030061

Unavailable

19

Headlight

2431016

Unavailable

20

Guard, Headlight, Black

1014833-067

Unavailable

21

BOLT

7512240

$3.99

22

BLOCK, HANDLEBAR

5631973

$27.99

22

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

23

Tube, Handlebar, Black

5244765-067

$124.99
