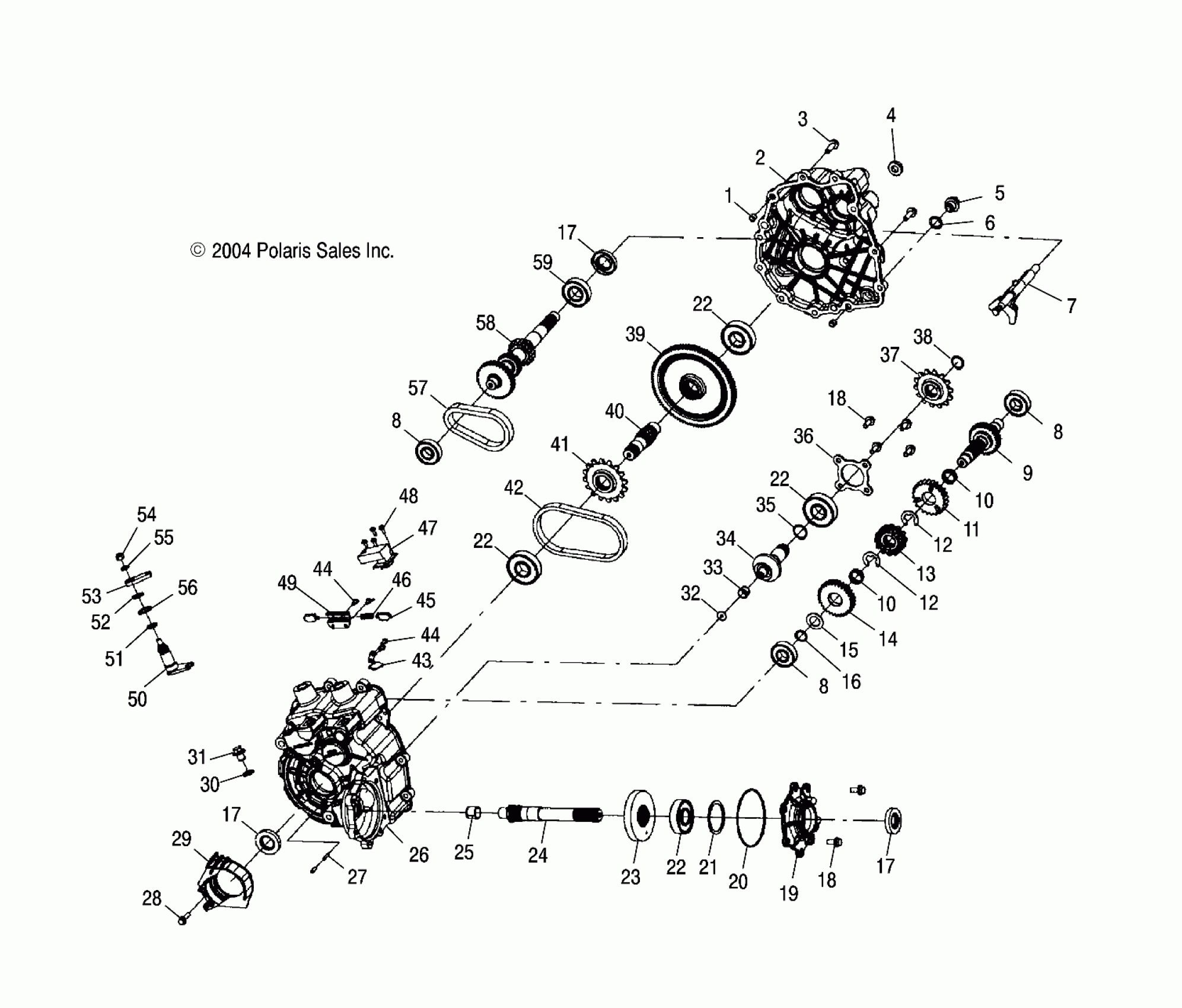

Polaris SCRAMBLER 500 4X4 - A05BG50AA GEARCASE - A05BG50AA/FA (4994789478C09) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All](If built after 1/17/05)

1341502

$1,814.99

-

Asm., Gearcase [Incl. All](If built before 1/17/05)

1341382

$1,814.99

1

Pipe, Knock

3233529

$7.99

2

Gearcase, LH (Used in 1341502)

3234036

$354.99

2

Gearcase, LH (Used in 1341382)

3233632

$354.99

3

Screw

3233252

$5.27

4

Bushing, Pivot

3233527

$35.19

5

Plug

3233448

$23.99

6

Washer (Used in 1341382)

3233035

Unavailable

6

Washer (Used in 1341502)

3234034

Unavailable

7

Fork, Shift, High/Reverse

3233633

$139.99

8

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

8

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

8

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

9

Shaft, Reverse, 31T

3233728

$115.99

10

BEARING, NEEDLE

3233718

$35.99

10

BEARING, NEEDLE

3233718

$35.99

11

Sprocket, 24T

3233719

$109.27

12

Ring, Retaining

3233720

$9.59

12

Ring, Retaining

3233720

$9.59

13

Dog, Engagement

3233721

$169.98

14

Gear, 30T

3233722

$165.94

15

Washer

3233176

$9.59

16

Ring, Retaining

3233177

$6.39

17

Seal, Triple Lip

3233788

$31.99

17

Seal, Triple Lip

3233788

$31.99

17

Seal, Triple Lip

3233788

$31.99

18

Screw

3233539

$15.49

18

Screw

3233539

$15.49

19

Cover, Snorkel

3233556

$31.11

20

O-Ring

3233555

$6.06

21

SHIM

3233554

Unavailable

22

BEARING

3233020

$47.99

22

BEARING

3233020

$47.99

22

BEARING

3233020

$47.99

22

BEARING

3233020

$47.99

23

Gear, 25T

3233898

$231.19

24

Shaft, Snorkel

3233899

$133.56

25

BUSHING-GARLOCK

3233552

$23.99

26

Gearcase, RH

3233896

$469.99

27

Vent

3233037

Unavailable

28

Screw

3233026

$6.46

29

Guide, Chain

3233897

$48.39

30

Washer (Used in 1341502)

3233872

$9.59

30

Washer (Used in 1341382)

3233324

$8.99

31

Plug, Oil Fill

3233711

Unavailable

32

Washer, Thrust

3233542

$11.32

33

Bushing

3233541

$23.99

34

Shaft, Pinion, 13T

3233540

$159.99

35

RING, RETAINING

3233306

$4.79

36

Cover, Center Drive Bearing

3233263

Unavailable

37

Sprocket, 14T

3233538

Unavailable

38

Ring, Retaining

3233537

$6.99

39

Gear, 98T

3233558

$213.59

40

Shaft, Output

3233544

$174.99

41

Sprocket, 16T

3233545

$55.99

42

Chain, Roller

3233546

$67.99

43

Deflector, Oil

3233043

$13.19

44

Screw, Tapping w/Lock Washer

3233747

Unavailable

44

Screw, Tapping w/Lock Washer

3233747

Unavailable

45

Pin, Interlock

3233308

Unavailable

46

Spring, Shifting, Interlock

3233550

Unavailable

47

Switch, 3 Position (Used in 1341502)

3234002

$174.99

47

Switch, 3 Position (Used in 1341382)

3233635

Unavailable

48

SCREW

3233749

$5.59

49

Bracket, Interlock

3233309

$20.63

50

Shaft, Shift

3233559

$72.84

51

O-Ring

3233548

$27.99

52

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

53

Bellcrank (Used in 1341502)

3234148

$39.99

53

Bellcrank (Used in 1341382)

3233547

$43.99

54

Nut (Used in 1341502)

3233961

$2.79

54

Nut (Used in 1341382)

3233055

Unavailable

55

Washer (Used in 1341382 Only)

3233054

$6.46

56

Washer

3233040

$9.59

57

Chain, Silent

3233036

Unavailable

58

Shaft, Input

3233536

$220.49

59

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99
