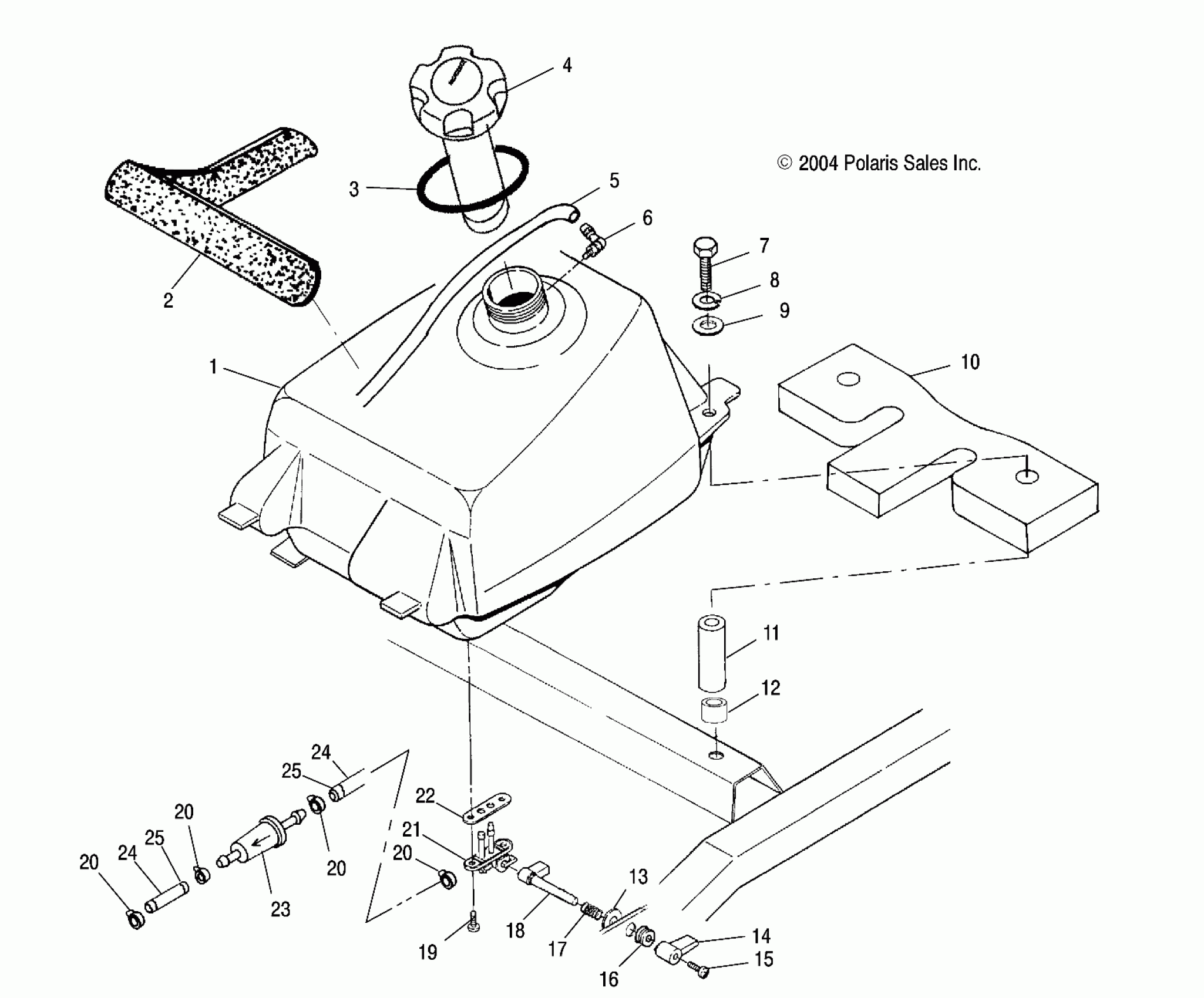

Polaris SCRAMBLER 500 4X4 - A05BG50AA FUEL TANK - A05BG50AA/FA (4994789478A12) Diagram

#

Description
Price

1

Fuel Tank w/Valve [Incl. 6,19,21,22]

2520241

Unavailable

1

Tank, Fuel

5432879

Unavailable

2

Seal, Foam

5811527

Unavailable

3

GASKET

5812123

$5.65

4

Cap, Gauge

2871441

$15.99

5

LINE, FUEL

8360009-600

Unavailable

6

Vent, Tank

5431053

$19.99

7

Bolt

7512249

Unavailable

8

WASHER, SPRING LOCK

7552801

$1.59

9

Washer, Flat

7555859

$1.49

10

Seal, Foam

5811526

$31.99

11

Spacer

5332457

Unavailable

12

Nutsert, Hex

7547069

$3.99

13

Washer

7555726

$1.59

14

Lever, Fuel

5431021

$4.79

15

Screw

7511840

Unavailable

16

Grommet

5412423

Unavailable

17

Spring, Lever, Compression

7041209

$7.19

18

Extension, Fuel Lever

5431391

$7.19

19

Screw

7515136

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

20

HOSE CLAMP, RED

7080003

$1.49

21

Asm., Valve, Fuel

7051006

$51.99

22

Gasket, Fuel Valve

5810859

$6.39

23

FILTER

2530009

$5.65

24

Sheath, Foil, Laminated

8450080-27

$64.75

24

Sheath, Foil, Laminated

8450080-27

$64.75

25

Line, Fuel

8450040-600

$68.79

25

Line, Fuel

8450040-600

$68.79
