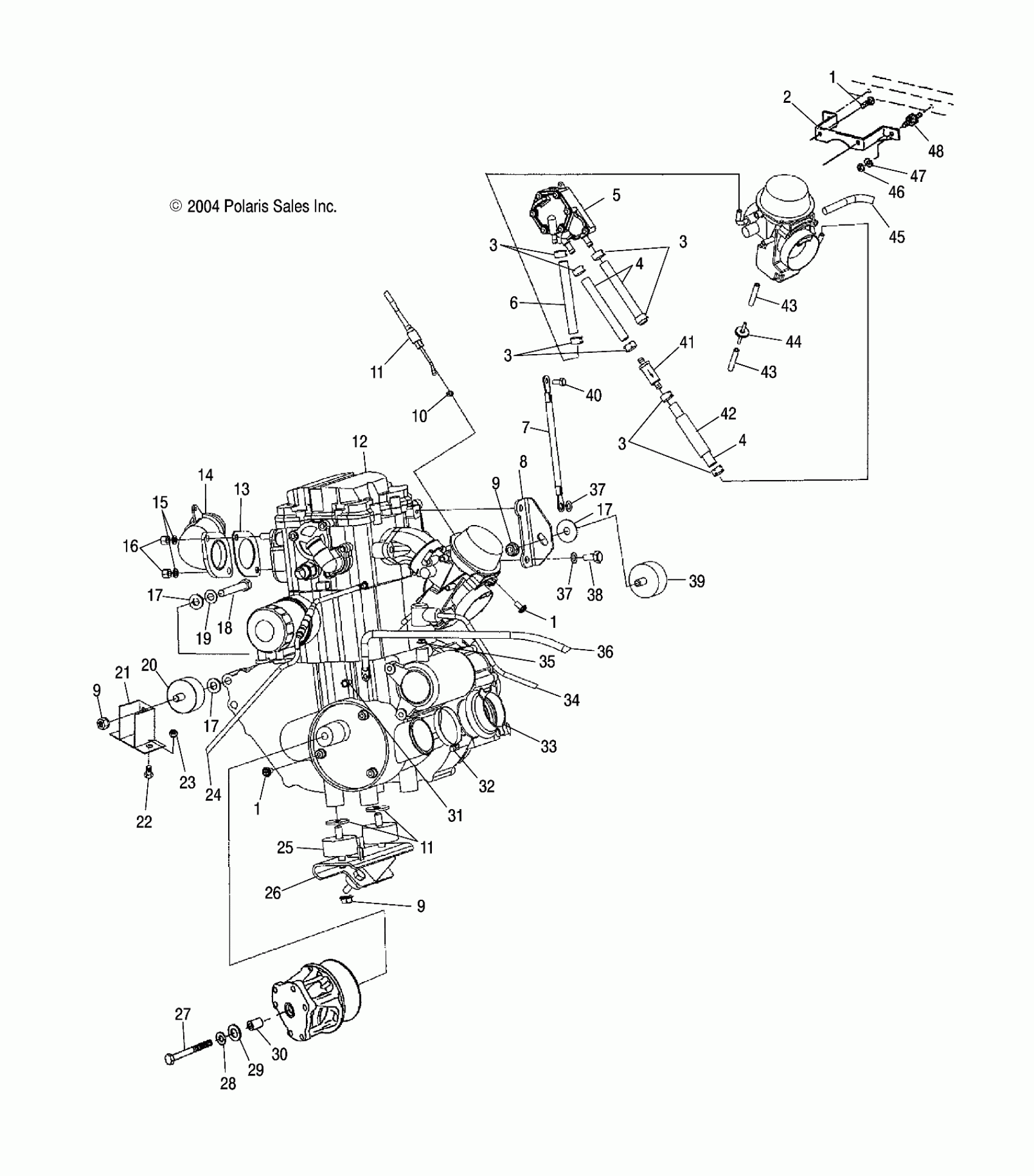

Polaris SCRAMBLER 500 4X4 - A05BG50AA ENGINE MOUNTING - A05BG50AA/FA (4994789478A09) Diagram

#

Description
Price

1

Asm., Screw and Washer

3084205

$3.97

1

Asm., Screw and Washer

3084205

$3.97

1

Asm., Screw and Washer

3084205

$3.97

2

Bracket, Carburetor Mount

5247951

Unavailable

3

HOSE CLAMP, RED

7080003

$1.19

3

HOSE CLAMP, RED

7080003

$1.19

3

HOSE CLAMP, RED

7080003

$1.19

3

HOSE CLAMP, RED

7080003

$1.19

4

Line, Fuel

8450103

Unavailable

4

Line, Fuel

8450103

Unavailable

5

Asm., Fuel Pump

3085275

$79.37

6

Line, Fuel

8450040-600

$72.84

7

Cable, Ground, Engine

4010132

Unavailable

8

Bracket, Engine Mount, Top

5242674

Unavailable

9

NUT

7547108

$4.76

9

NUT

7547108

$4.76

9

NUT

7547108

$4.76

10

Cable, Guide

3084696

$9.52

11

WASHER, FLAT

7555815

$3.97

11

WASHER, FLAT

7555815

$3.97

12

Engine, Short Block, EH500PLE124 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required f

3089534

Unavailable

13

GASKET

3085075

$40.46

14

Manifold, Black

1261171-489

$189.99

15

Washer, Spring Lock

3080051

$3.17

16

Nut

3087199

Unavailable

17

WASHER

7555823

$3.97

17

WASHER

7555823

$3.97

17

WASHER

7555823

$3.97

18

SCREW

7515417

$4.76

19

Washer, Spring Lock

7552603

$0.79

20

Mount, Motor

3110067

Unavailable

21

Mount, Engine, Front, Black

1040688-067

$14.68

22

SCREW

7515398

$2.38

23

NUT-5/16-18 NYLOK-Y

7542324

$0.79

24

Cable, Choke

7081177

$44.51

25

Mount, Rubber, Front

3110046

Unavailable

26

Mount, Engine, Rear, Black

1014993-067

$24.60

27

BOLT

7512566

$33.24

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

30

BUSHING-.437 X.770 X.50

5430261

$7.14

31

ASM., BOLT AND WASHER

3082038

$3.97

32

Clamp

7080511

$4.76

33

BOOT, CLUTCH INTAKE

5412487

Unavailable

34

Cable, Solenoid/Starter

4010093

$48.56

35

NUT, FLANGE

3083649

$3.97

36

Cable, Battery/Engine

4010095

Unavailable

37

WASHER, SPRING LOCK

7552901

$1.19

37

WASHER, SPRING LOCK

7552901

$1.19

38

BOLT

7512315

$4.76

39

Mount, Rubber, Top

3110044

$44.51

40

SCREW

7517386

$1.19

41

FILTER

2530009

$6.46

42

Sheath, Reflect Sleeve

8450105-65

Unavailable

43

LINE, FUEL

8360009-600

Unavailable

43

LINE, FUEL

8360009-600

Unavailable

44

VALVE, CHECK

7051011

Unavailable

45

Line, Fuel

8450003-1525

$89.99

46

WASHER, SPRING LOCK

7552801

$1.59

47

Nut, Hex

7542105

$3.97

48

Mount, Rubber

3110032

Unavailable
