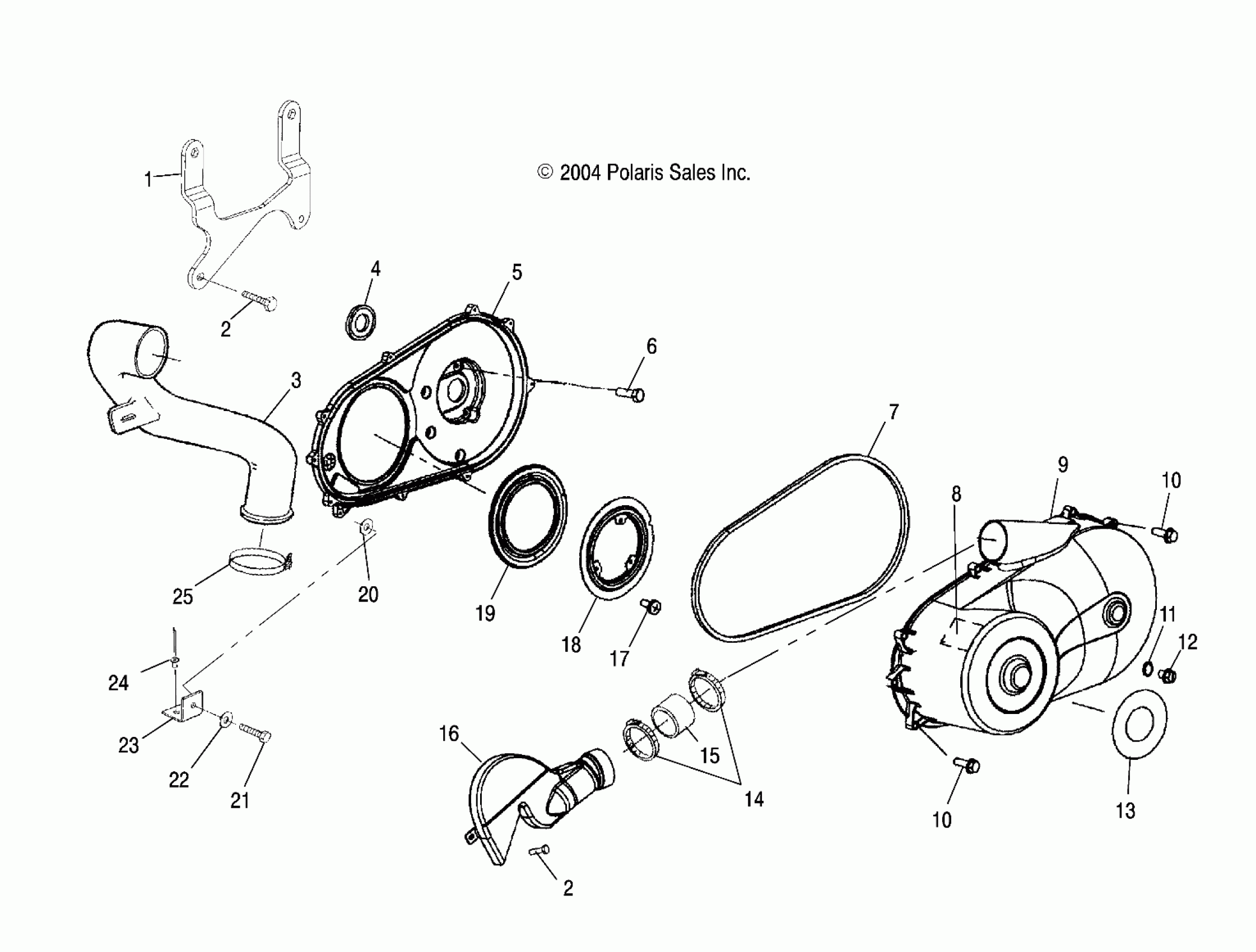

Polaris SCRAMBLER 500 4X4 - A05BG50AA CLUTCH COVER - A05BG50AA/FA (4994789478C05) Diagram

#

Description
Price

1

Bracket, Clutch Cover

5247524-067

Unavailable

2

SCREW

7517386

$1.19

2

SCREW

7517386

$1.19

3

Duct, Down Tube, Inlet

5432698

Unavailable

4

Seal, Inner Clutch Cover

5411553

$24.27

5

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$133.56

6

Asm., Bolt and Washer

7510000

Unavailable

7

Seal, Clutch Cover, Outer

5521578

$44.51

8

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

9

Asm., Clutch Cover, Outer

2633262

$186.17

10

SCREW

7512094

$1.59

10

SCREW

7512094

$1.59

11

O RING-.364X.504X.07

5410542

$4.84

12

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

13

DECAL, AUTOMATIC TRANSMISSION

7172746

Unavailable

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

15

Boot, Duct (If built after 11/15/04)

5412636

$24.27

15

Boot, Duct (If built before 11/15/04)

5411489

Unavailable

16

Duct, Clutch, Hi-Flow

5434160

Unavailable

17

ASM., SCREW AND WASHER [SEE CRANKCASE PG. C11, REF. 6]

----

Unavailable

18

Bracket, Clutch Seal

5242046

$36.41

19

Seal, Cover, Case

5410575

$44.51

20

Washer, Nylon

7555932

$2.38

21

Screw

7512098

$1.59

22

Washer

7555935

$2.38

23

Bracket, Clutch Cover, Front

5247949

Unavailable

24

RIVET-3/16-.090-.290

7661637

$1.19

25

Clamp, Narrow Band

7080511

$4.76
