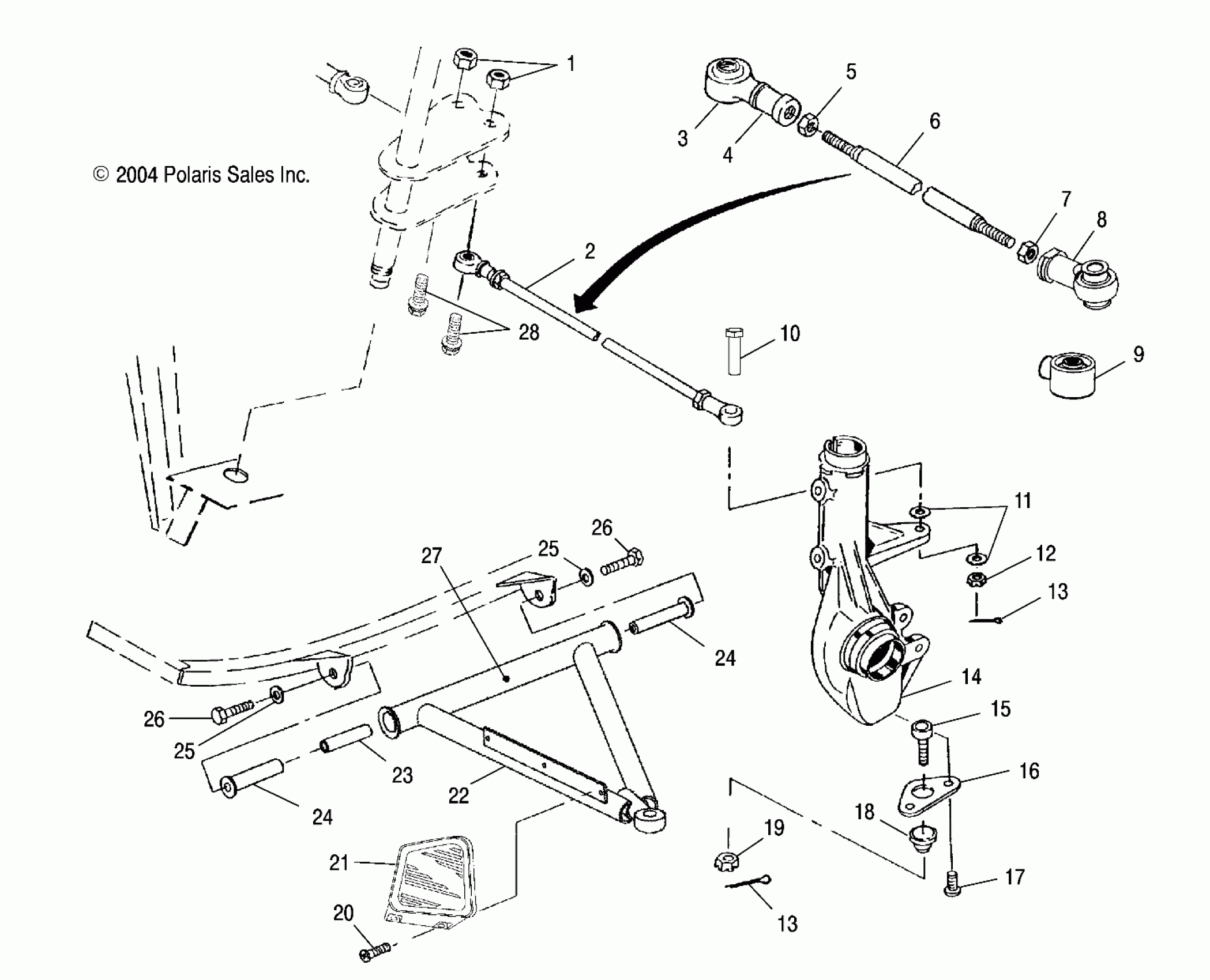

Polaris SCRAMBLER 500 4X4 - A05BG50AA A-ARM/STRUT MOUNTING - A05BG50AA/FA (4994789478B04) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Asm., Tie Rod [Incl. 3-8]

1820805

Unavailable

3

Boot, Seal, Rod End

5411291

Unavailable

4

Rod End, RH

7061034

$54.04

5

Nut, Jam

7542711

$2.39

6

Tie Rod

5020926

$39.99

7

Nut, Jam, LH

7547028

$2.39

8

Rod End, LH

7061054

Unavailable

9

Boot, Seal, Rod End

5411920

Unavailable

10

Bolt

7517909

$5.59

11

Washer

7556099

$1.59

12

Nut, Hex, Lock

7547177

$2.39

13

Pin, Cotter

7661203

$1.49

13

Pin, Cotter

7661203

$1.49

14

ASM., HUBSTRUT [SEE FRONT STRUT PG. B3, REF. 16]

-------

Unavailable

15

Joint, Ball

7080927

$76.89

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

20

Screw

7512084

$1.49

21

Shield, CV Joint, Black, RH

5431149-070

$24.27

21

Shield, CV Joint, Black, LH

5431150-070

Unavailable

22

Kit, A-Frame, Screaming Yellow, LH

2202284-216

Unavailable

22

Kit, A-Frame, Screaming Yellow, RH

2202285-216

Unavailable

23

Shaft, A-Arm

5133806

$30.79

24

Bushing, A-Arm, Long

5434551

$5.01

24

Bushing, A-Arm, Long

5434551

$5.01

25

Washer, Spring Lock

7552603

$1.49

25

Washer, Spring Lock

7552603

$1.49

26

Screw

7512492

$1.49

26

Screw

7512492

$1.49

27

Fitting, Lub

7080433

$1.49

28

Screw

7515415

$1.49
