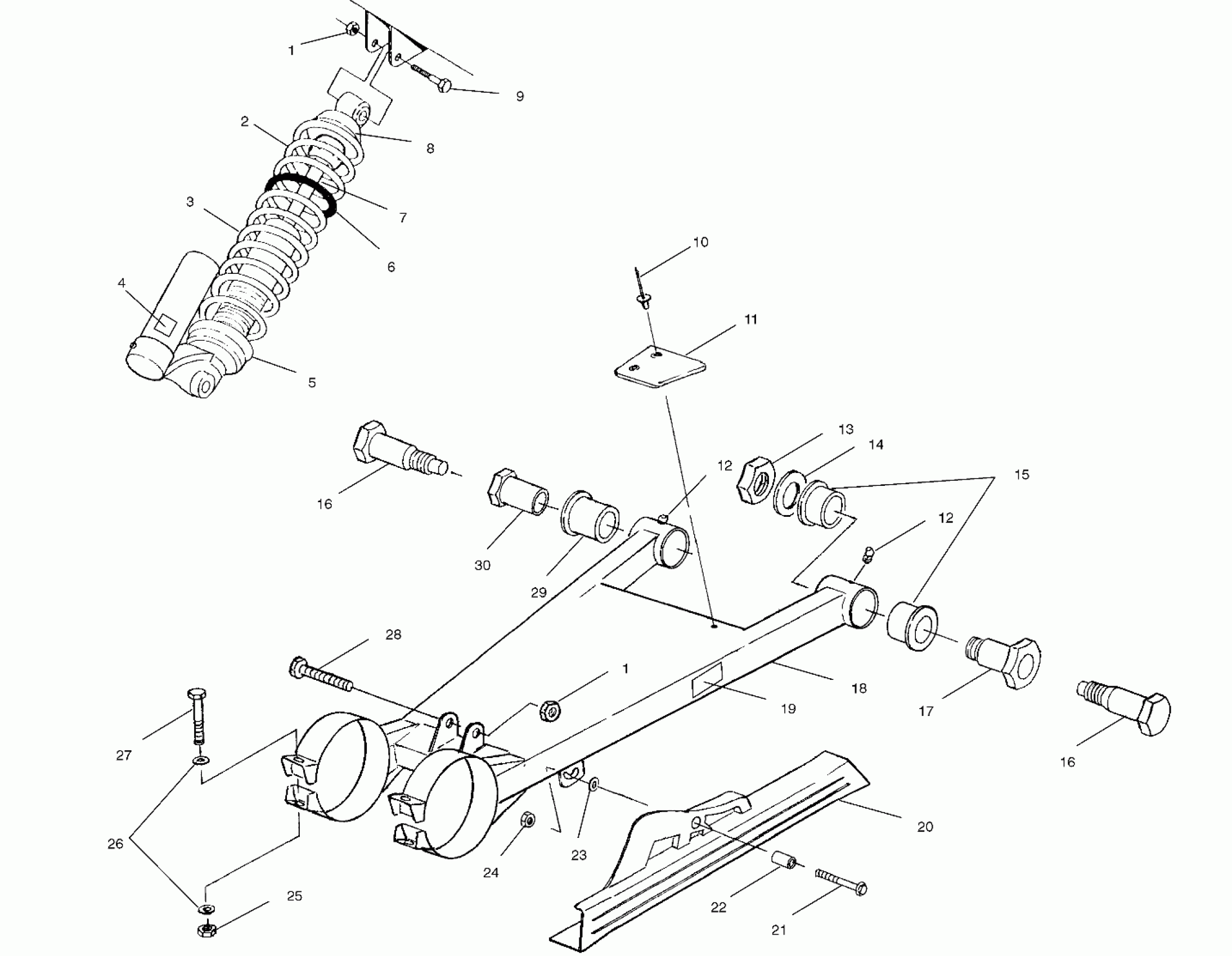

Polaris SCRAMBLER 500 4X4 - A03BG50AA SWING ARM/SHOCK MOUNTING - A03BG50AA (4975117511C07) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Spring, Compression, Black

7041864-067

Unavailable

2

Spring, Compression, Yellow

7041864-216

Unavailable

3

Spring, Compression, Black

7041865-067

$79.99

3

Spring, Compression, Yellow

7041865-216

$79.99

4

Decal, Warning, Fox Shock

7075343

Unavailable

5

Ring, Spring Preload

1500278

$62.39

6

Spacer, Spring

5433550

$13.19

7

Shock, Gas

7041867

Unavailable

8

Retainer, Spring

5631045

Unavailable

9

Screw

7515415

$1.49

10

Rivet

7661046

$3.99

11

Guide, Pad, Chain

5432727

$31.99

12

Fitting

7080510

$5.59

12

Fitting

7080510

$5.59

13

Nut

7547082

$31.99

14

Washer, Flat

7556035

Unavailable

15

Bushing, Swing Arm, RH

5434546

$8.79

16

Bolt, Pivot, Swing Arm

5131697

$35.99

16

Bolt, Pivot, Swing Arm

5131697

$35.99

17

Bushing, Swing Arm Pivot, RH

5133167

$35.99

18

Arm, Swing [Incl. 12,15,29]

1541819-216

Unavailable

19

Decal, "Chain Free Play"

7078572

Unavailable

20

Guard, Chain

5432854

$35.99

21

SCREW

7515304

$5.59

22

Bushing

5332828

$9.59

23

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

24

Nut, Flange

7542321

$1.49

25

Nut, Nylok

7547066

$1.59

26

Washer

7555883

$3.99

27

Bolt

7512576

$7.99

28

SCREW

7517761

$5.59

29

Bushing, Swing Arm, LH

5434545

$8.79

30

Bushing, Swing Arm Pivot, LH

5133166

$31.99
