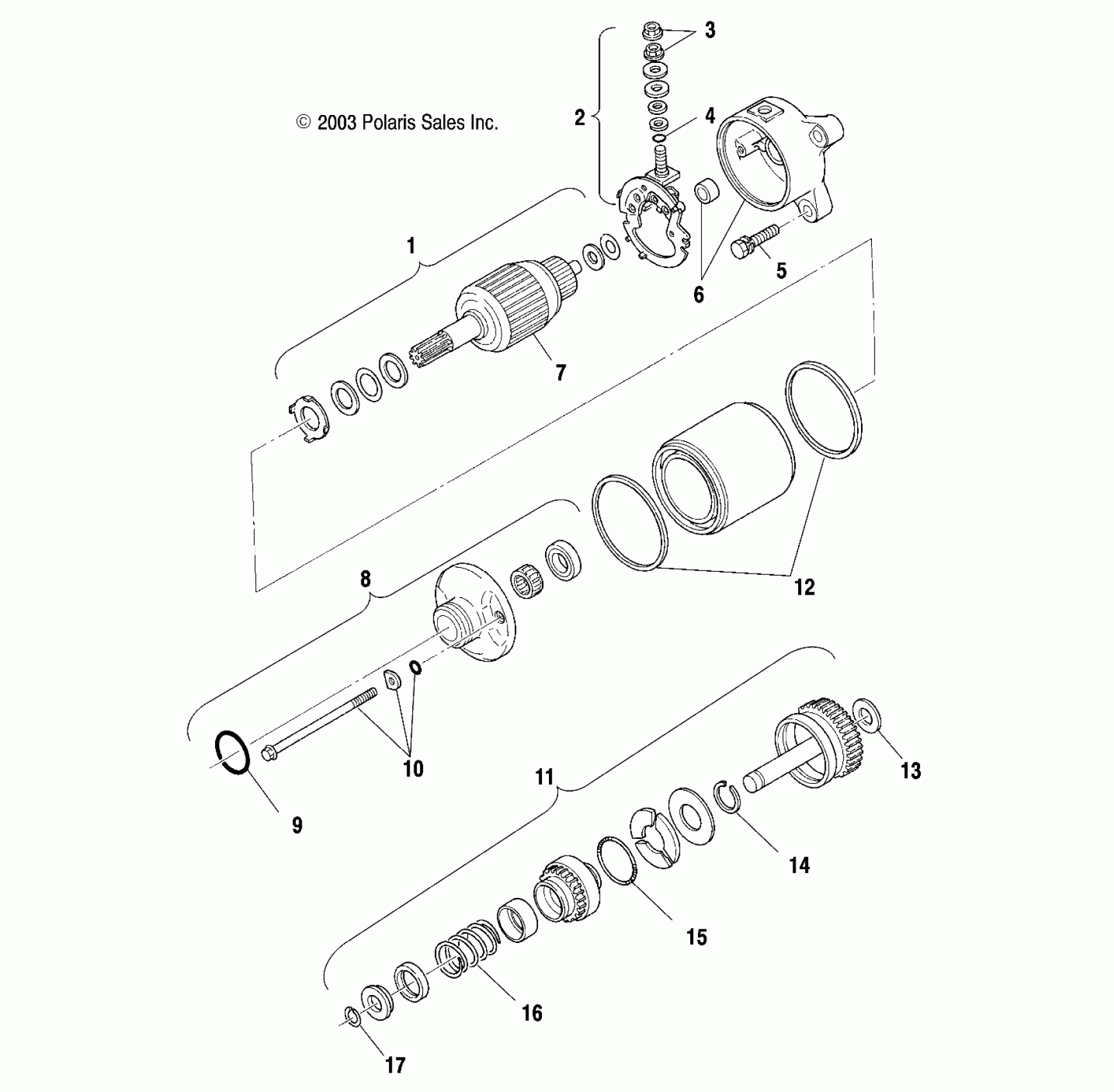

Polaris SCRAMBLER 500 4X4 - A03BG50AA STARTING MOTOR - A03BG50AA (4986228622D09) Diagram

#

Description
Price

-

Asm., Starting Motor [Incl. 1-4,6-10,12]

3084981

Unavailable

1

Set, Washer

3084982

Unavailable

2

Set, Brush, Carbon

3084406

Unavailable

3

NUT, FLANGE

3083649

$3.99

4

O-RING

3084408

Unavailable

5

Bolt and Washer

3082038

$3.99

6

Asm., Bracket, Rear

3085034

$91.99

7

Asm., Armature

3085353

Unavailable

8

Asm., Bracket, Front

3085033

$137.60

9

O-Ring

3240114

$5.59

10

Asm., Bolt Set [Incl. 4]

3084983

$23.99

11

Asm., Gear Shaft [Incl. 13-17]

3087030

Unavailable

12

Ring, Rubber

3088162

Unavailable

13

Washer, Gear Shaft

3083737

Unavailable

14

CLIP

3084412

$9.59

15

SPRING, WEIGHT

3084411

$15.67

16

SPRING, RETURN

3084410

$2.47

17

CLIP

3084409

$7.19
