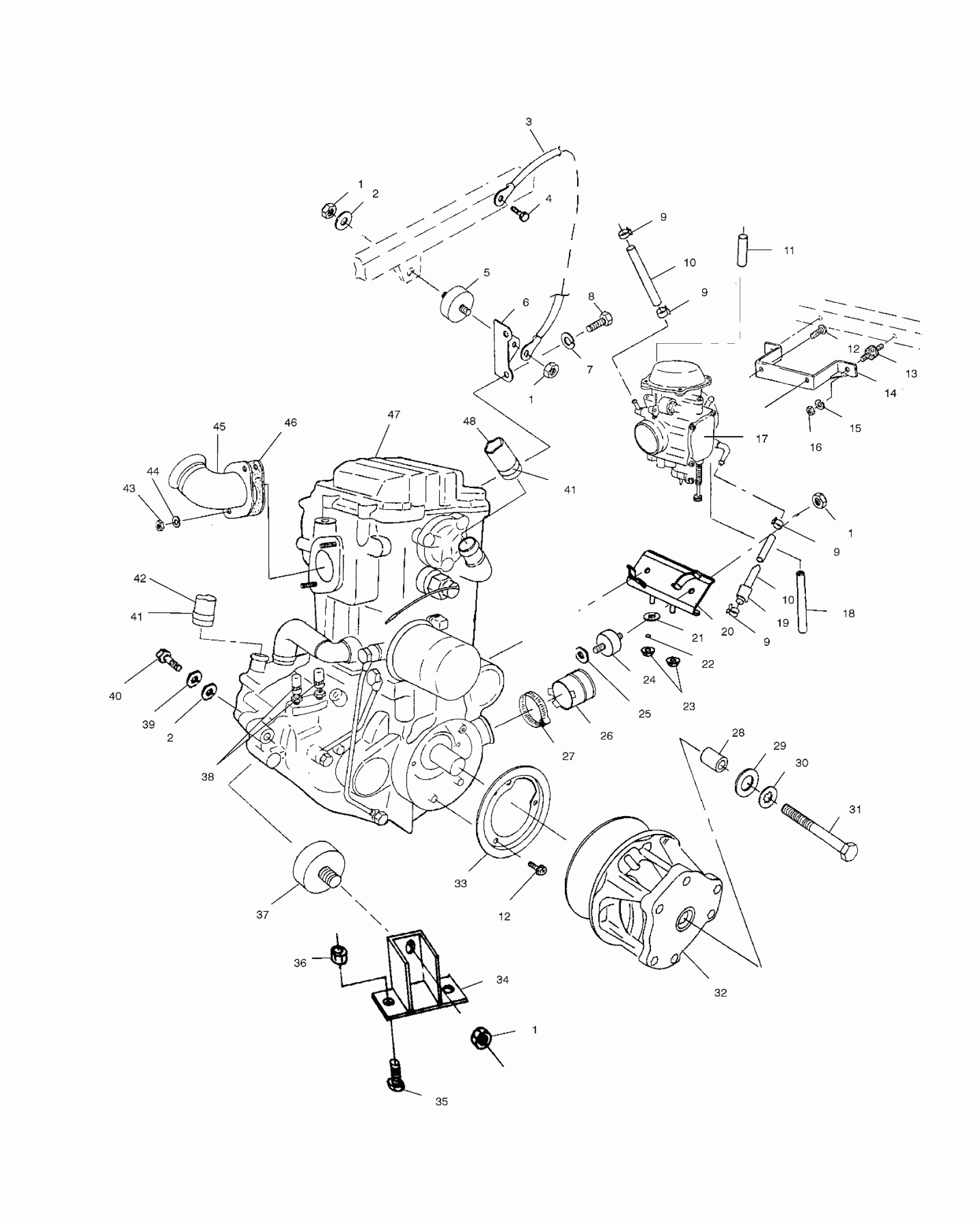

Polaris SCRAMBLER 500 4X4 - A03BG50AA ENGINE MOUNTING - A03BG50AA (4975117511A09) Diagram

#

Description
Price

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

1

NUT, FLANGE LOCK

7547108

$4.79

2

WASHER, FLAT

7555823

$3.99

2

WASHER, FLAT

7555823

$3.99

3

Cable, Ground/Engine

4010132

Unavailable

4

SCREW

7517386

$1.49

5

Mount, Rubber, Top

3110044

Unavailable

6

Bracket, Mount, Engine, Top

5242674-067

Unavailable

7

WASHER, SPRING LOCK

7552901

$1.49

8

BOLT

7512315

$4.79

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

10

Line, Fuel

8450040-600

Unavailable

10

Line, Fuel

8450040-600

Unavailable

11

Line, Fuel

8450003-1525

Unavailable

12

Screw and Washer

3084205

$3.99

12

Screw and Washer

3084205

$3.99

13

Mount, Rubber Radiator

3110032

$7.99

14

Bracket, Carburetor Mount

5242258-067

Unavailable

15

Washer, Split Lock

7552605

$5.27

16

NUT

7542105

$3.99

17

ASM., CARBURETOR [SEE CARBURETOR PG. D4, REF. 18]

-------

Unavailable

18

LINE, FUEL

8360009-600

Unavailable

19

Sheath, Foil, Laminated

8450080-58

$64.75

20

Mount, Engine, Rear

1013222-067

$23.99

21

Spacer

5132775

$15.27

22

O-Ring

5412005

$1.67

23

Nut, Flange, Lock

7547089

$4.79

24

Mount, Rubber, Front

3110046

Unavailable

25

Washer

7555815

$3.99

26

Boot, Clutch Intake

5410421

$11.19

27

Clamp, Narrow Band

7080511

$4.79

28

BUSHING-.437 X.770 X.50

5430261

$7.19

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

30

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

31

BOLT

7512566

$30.79

32

ASM., DRIVE CLUTCH, ATV-06 [SEE DRIVE CLUTCH PG. B9, REF. 13]

-------

Unavailable

33

BRACKET, RETAINER, SEAL [SEE CLUTCH COVER PG. C5, REF. 19]

-------

Unavailable

34

Mount, Engine, Front

1040688-067

$14.68

35

SCREW

7515398

$2.39

36

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

Mount, Motor

3110067

Unavailable

38

CLAMP-HOSE,.875-SS

7080474

$8.40

39

Washer, Spring Lock

7552603

$1.49

40

Screw

7515438

$4.79

41

CLAMP, HOSE

7080696

$5.59

41

CLAMP, HOSE

7080696

$5.59

42

HOSE, ENGINE, LOWER [SEE COOLING SYSTEM PG. A7, REF. 30]

-------

Unavailable

43

NUT [SEE CYLINDER PG. D2, REF. 23]

-------

Unavailable

44

WASHER, LOCK [SEE CYLINDER PG. D2, REF. 22]

-------

Unavailable

45

Manifold, Black

1261171-029

$189.99

46

GASKET, EXHAUST [SEE CYLINDER PG. D2, REF. 20]

-------

Unavailable

47

Engine, Short Block [EH50PLE12] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required fo

3085822

Unavailable

48

HOSE, ENGINE, UPPER [SEE COOLING SYSTEM PG. A7, REF. 17]

-------

Unavailable
