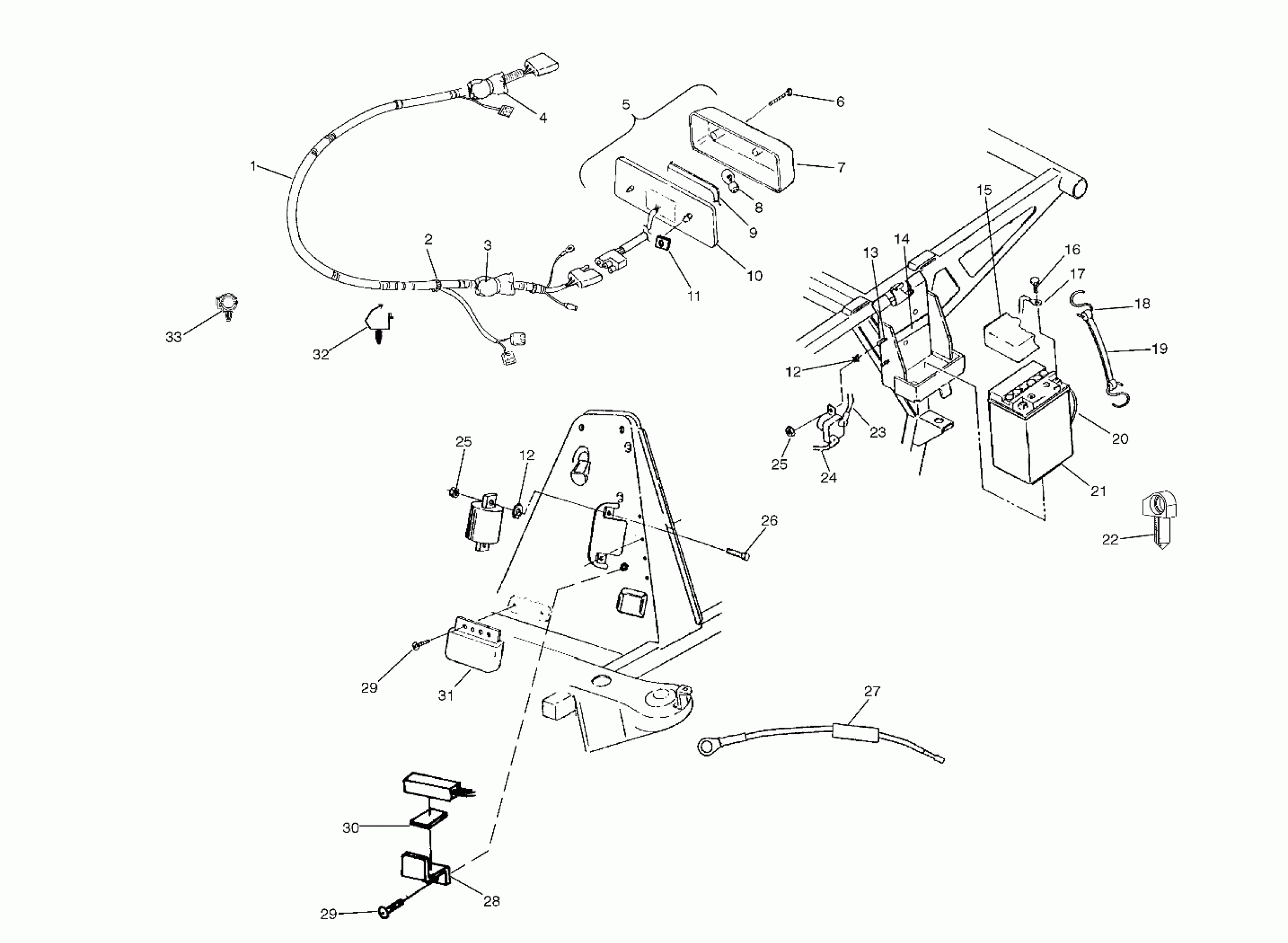

Polaris SCRAMBLER 500 4X4 - A03BG50AA ELECTRICAL/TAILLIGHT - A03BG50AA (4975117511C06) Diagram

#

Description
Price

1

Harness, Main

2461059

$339.99

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Breaker, Circuit, 20 AMP

2434012

$38.89

4

Kit, Circuit Breaker, Fan

2201795

$68.79

5

Asm., Taillight, 12V [Incl. 6-10]

2410319

$83.99

6

Screw

7512088

$2.39

7

Lens

4032085

$36.41

8

Bulb

4030043

$6.46

9

Gasket

4032086

Unavailable

10

Backing

4032087

Unavailable

11

Clip

7670093

$5.99

12

Washer

7571602

$4.79

12

Washer

7571602

$4.79

13

Screw

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

Cover, Battery

5431769

$14.39

16

Kit, Battery Bolt

2200361

$3.99

17

Cable, Battery/Engine, Black

4010095

Unavailable

18

Hook, Battery Strap

7010032

$1.59

19

Strap, Battery Holddown

5410424

Unavailable

20

Tube, Battery Vent

5432077

$8.08

21

Battery

4140006

$99.99

22

Clip

7670102

$2.39

23

Cable, Battery/Solenoid, Red

4010094

Unavailable

24

Cable, Solenoid/Starter

4010093

$47.99

25

Nut, Nylok

7541925

$1.49

25

Nut, Nylok

7541925

$1.49

26

BOLT

7512007

$3.99

27

Kit, Fusible Link

2202147

$79.99

28

Bracket, CDI [If built after 6/10/02]

5246747

$7.99

28

Bracket, CDI [If built before 6/10/02]

5246378

Unavailable

29

SCREW

7512024

$4.79

29

SCREW

7512024

$4.79

30

Pad, Fuel Tank Bracket

5810317

Unavailable

31

Limiter, RPM, LR-83-3

4010195

Unavailable

32

CLIP, ROUTING

7670109

$2.39

33

Clip, Rosebud

4020149

$6.39
