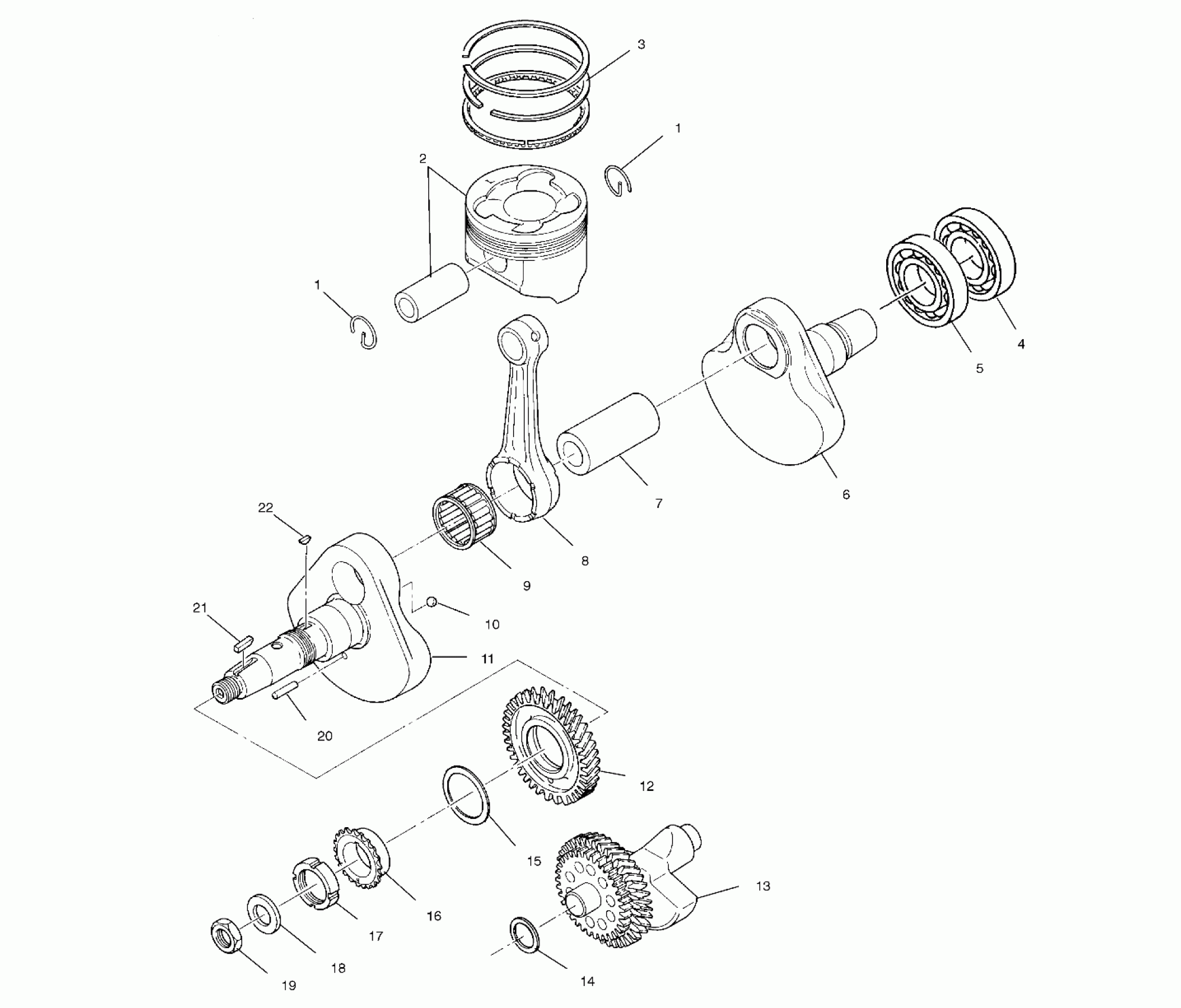

Polaris SCRAMBLER 500 4X4 - A03BG50AA CRANKSHAFT AND PISTON - A03BG50AA (4986088608D02) Diagram

#

Description
Price

1

CLIP

3085534

Unavailable

1

CLIP

3085534

Unavailable

2

Asm., Piston Set [0.25 O/S] [Incl. 1]

3087222

Unavailable

2

Asm., Piston Set [0.50 O/S] [Incl. 1]

3087223

$179.99

2

Asm., Piston Set [Std] [Incl. 1]

3087221

Unavailable

3

Piston Ring Set [Std]

3087224

$71.24

3

Piston Ring Set [0.25 O/S]

3087225

$76.17

3

Piston Ring Set [0.50 O/S]

3087226

$75.99

4

Bearing

3080676

Unavailable

5

BEARING, BALL

3085815

$43.65

6

CRANKSHAFT 2

3085812

Unavailable

7

Pin, Crank

3085341

$109.27

8

Rod, Connecting

3085813

Unavailable

9

Bearing, End, Large

3085400

$78.56

10

BALL, STEEL

3085024

$6.46

11

Asm., Crankshaft [Incl. 4,5-12,20]

3085861

$1,099.99

11

Crankshaft 1

3085945

Unavailable

12

Gear 1, Balancer

3085852

Unavailable

13

Shaft, Balancer

3086837

Unavailable

14

Spacer [1.2]

3084897

$6.35

14

Spacer [0.8]

3084895

$6.35

14

Spacer [1.0]

3084896

$6.35

15

Spacer [1.2]

3084894

$19.84

15

Spacer [0.6]

3240088

$12.99

15

Spacer [1.0]

3084893

Unavailable

15

Spacer [0.8]

3084892

$12.70

16

SPROCKET 1

3084882

Unavailable

17

NUT, SLIT

3085528

$35.71

18

Washer

3083904

Unavailable

19

NUT, LOCK

3083905

Unavailable

20

Pin, Dowel

3085346

Unavailable

21

KEY

3081447

Unavailable

22

KEY, WOODRUFF

3240168

$24.27
