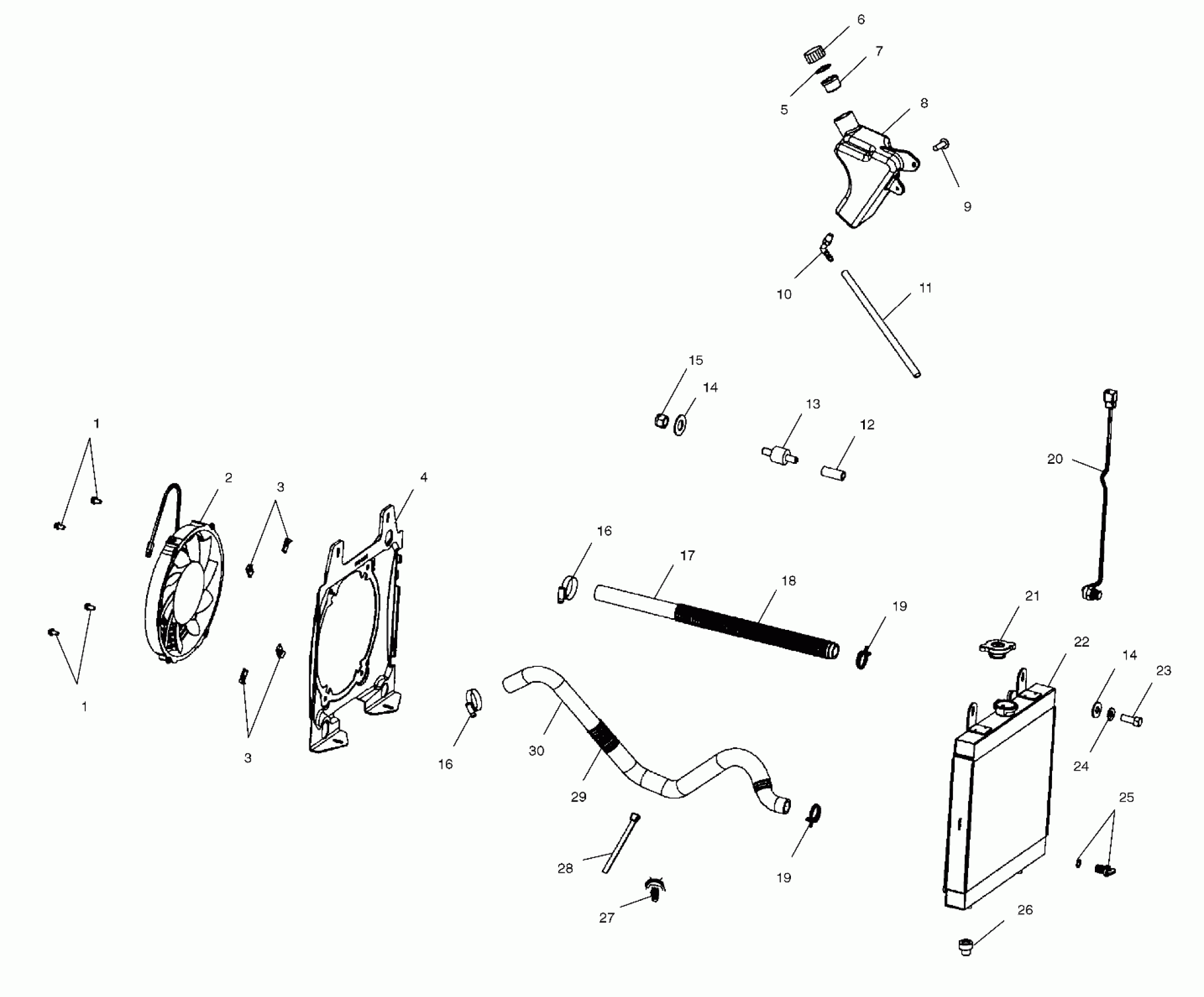

Polaris SCRAMBLER 500 4X4 - A03BG50AA COOLING SYSTEM - A03BG50AA (4975117511A07) Diagram

#

Description
Price

1

Screw

7517659

$3.97

1

Screw

7517659

$3.97

2

Asm., Fan and Motor

2410123

$214.69

3

U-Clip

7670111

Unavailable

3

U-Clip

7670111

Unavailable

4

Shroud

5434043

$73.81

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

Tank, Surge

5433410

Unavailable

9

Screw

7512084

$1.19

10

Fitting

7052065

$7.14

11

Line, Fuel

8450003-600

Unavailable

12

Spacer

5020937

Unavailable

13

Mount, Rubber

3110032

Unavailable

14

Washer, Flat

7558301

$1.19

14

Washer, Flat

7558301

$1.19

15

Nut, Nylok

7542122

$1.19

16

CLAMP, HOSE

7080614

$7.14

16

CLAMP, HOSE

7080614

$7.14

17

Hose, Engine, Upper

5411985

$65.87

18

Guard, Hose

5521511

$7.38

19

Clamp

7080826

$4.76

19

Clamp

7080826

$4.76

20

Sensor, Thermal w/Harness

4010161

$128.24

21

Cap, Pressure

1240093

Unavailable

22

Radiator

1240090

Unavailable

23

Screw

7512240

$3.97

24

Washer, Spring, Lock

7552801

$1.59

25

Valve

7052296

Unavailable

26

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

27

MOUNT, CABLE TIE

7080965

$7.27

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

Guard, Plastic Hose

5521550

$10.51

30

Hose, Engine, Lower

5411989

Unavailable
