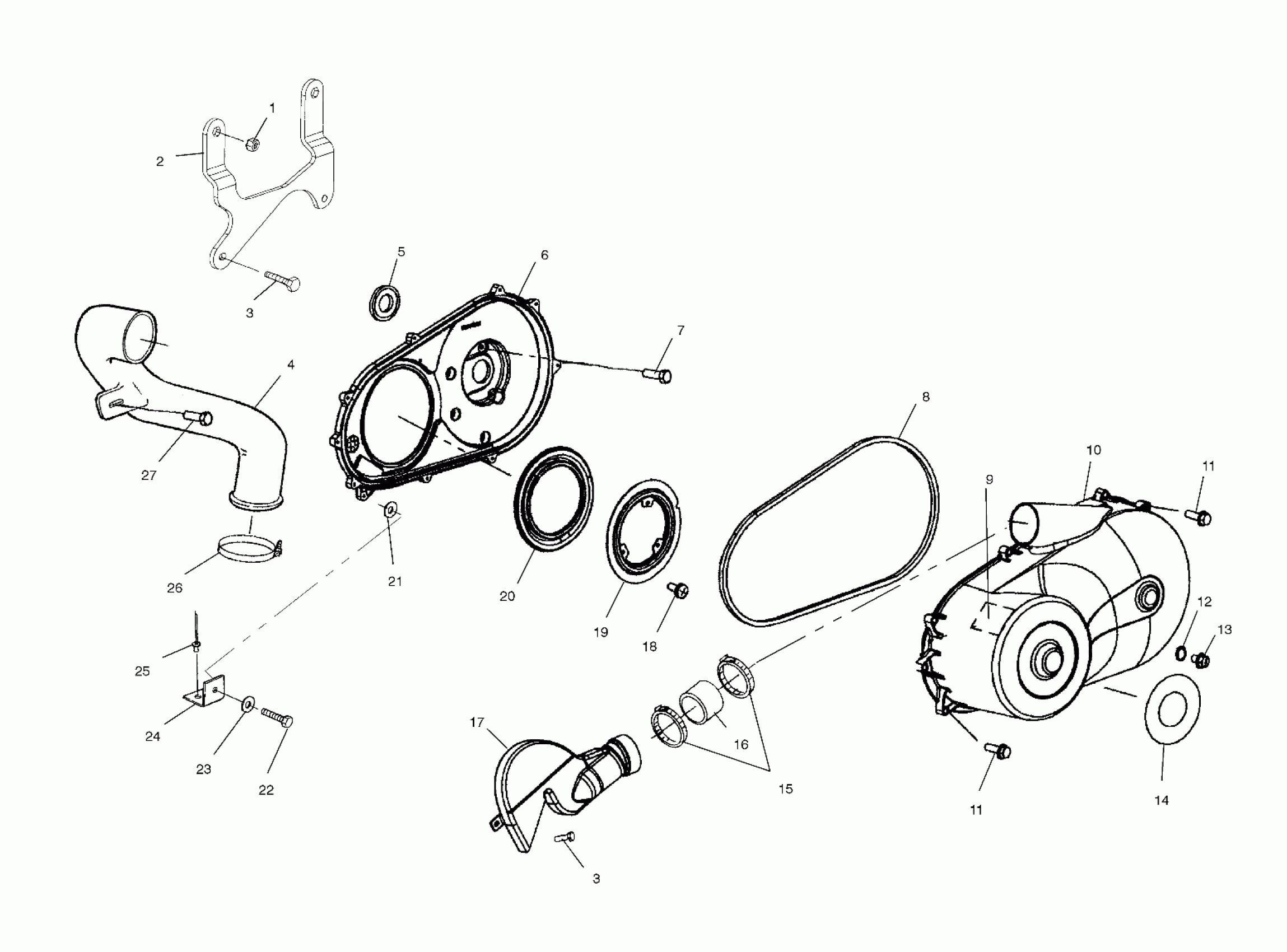

Polaris SCRAMBLER 500 4X4 - A03BG50AA CLUTCH COVER - A03BG50AA (4975117511C05) Diagram

#

Description
Price

1

Nutsert

7547067

$4.28

2

Bracket, Clutch Cover

5242208-067

Unavailable

3

SCREW

7517386

$1.19

3

SCREW

7517386

$1.19

4

Duct, Down Tube, Inlet

5432698

Unavailable

5

Seal, Cover

5411553

$24.27

6

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$133.56

7

Bolt and Washer

7517860

Unavailable

8

Seal, Clutch Cover, Inner

5521578

$44.51

9

Decal, Warning, Clutch Cover

7078689

Unavailable

10

Asm., Clutch Cover, Outer

2633262

$186.17

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

12

O RING-.364X.504X.07

5410542

$4.84

13

PLUG-DRAIN,CLUTCH COVER

5434264

$5.65

14

Decal, Automatic Transmission

7074782

Unavailable

15

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

16

Boot, Duct

5411489

Unavailable

17

Duct, Clutch, Hi-Flow

5434160

Unavailable

18

SCREW AND WASHER [SEE CRANKCASE PG. C13, REF. 6]

----

Unavailable

19

Bracket, Clutch Seal

5242046-067

$36.41

20

Seal, Cover, Case

5410575

$44.51

21

Washer, Nylon

7555932

$2.38

22

Screw

7512098

$1.59

23

Washer

7555935

$2.38

24

Bracket, Clutch Cover, Front

5242693-067

Unavailable

25

RIVET-3/16-.090-.290

7661637

$1.19

26

Clamp, Narrow Band

7080511

$4.76

27

Screw

7517916

$6.35
