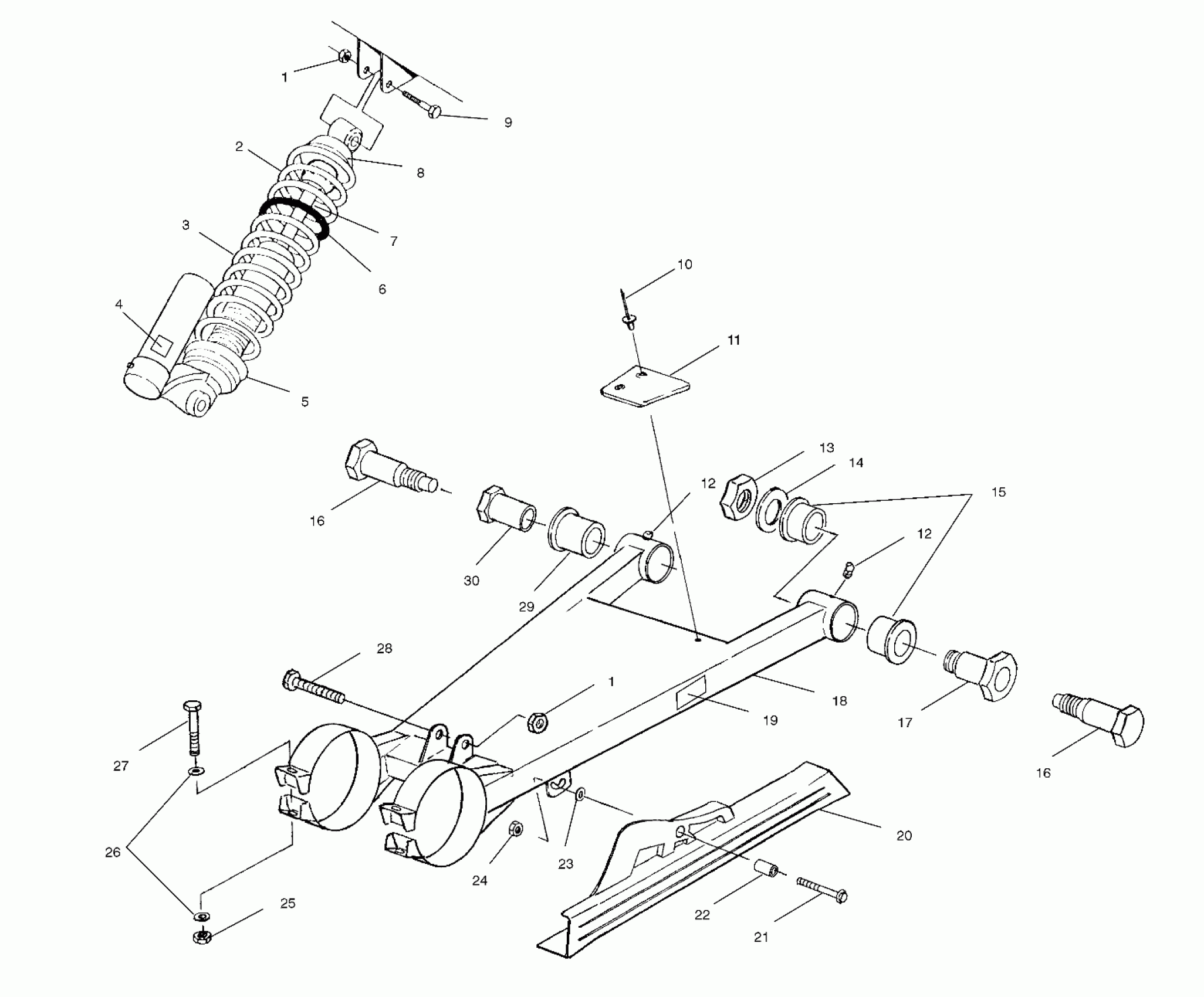

Polaris SCRAMBLER 500 4X4 - A02BG50AA SWING ARM/SHOCK MOUNTING - A02BG50AA/AC (4970027002C07) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.19

1

Nut, Nylok

7542439

$1.19

2

Spring, Compression

7041864-067

Unavailable

3

Spring, Compression

7041865-067

Unavailable

4

Decal, Warning, Fox Shock

7075343

Unavailable

5

Ring, Spring Preload

1500278

$42.89

6

Spacer, Spring

5433550

$13.10

7

Shock, Gas

7041867

Unavailable

8

Retainer, Spring

5631045

$10.32

9

Screw

7515415

$1.19

10

Rivet

7661046

$3.97

11

Guide, Pad, Chain

5432727

Unavailable

12

Fitting

7080510

$5.56

12

Fitting

7080510

$5.56

13

Nut

7547082

$32.37

14

Washer, Flat

7556035

Unavailable

15

Bushing, Swing Arm, RH (If built after 10/01/01)

5434546

$8.73

15

Bushing, Swing Arm, RH (If built before 10/01/01)

5433412

$8.73

16

Bolt, Pivot, Swing Arm

5131697

$35.71

16

Bolt, Pivot, Swing Arm

5131697

$35.71

17

Bushing, Swing Arm Pivot, RH

5133167

$35.71

18

Asm., Swing Arm (Incl. 12,15,29) (Incl. 12,15,29)

1541395

Unavailable

19

Decal, "Chain Free Play"

7078572

Unavailable

20

Guard, Chain

5432854

Unavailable

21

SCREW

7515304

$5.56

22

Bushing

5332828

$9.70

23

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

24

Nut, Flange

7542321

$1.19

25

Nut, Nylok

7547066

$1.59

26

Washer

7555883

$3.97

27

Bolt

7512576

$7.94

28

SCREW

7517761

$5.56

29

Bushing, Swing Arm, LH (If built after 10/01/01)

5434545

$8.73

29

Bushing, Swing Arm, LH (If built before 10/01/01)

5433411

$8.73

30

Bushing, Swing Arm Pivot, LH

5133166

$31.75
