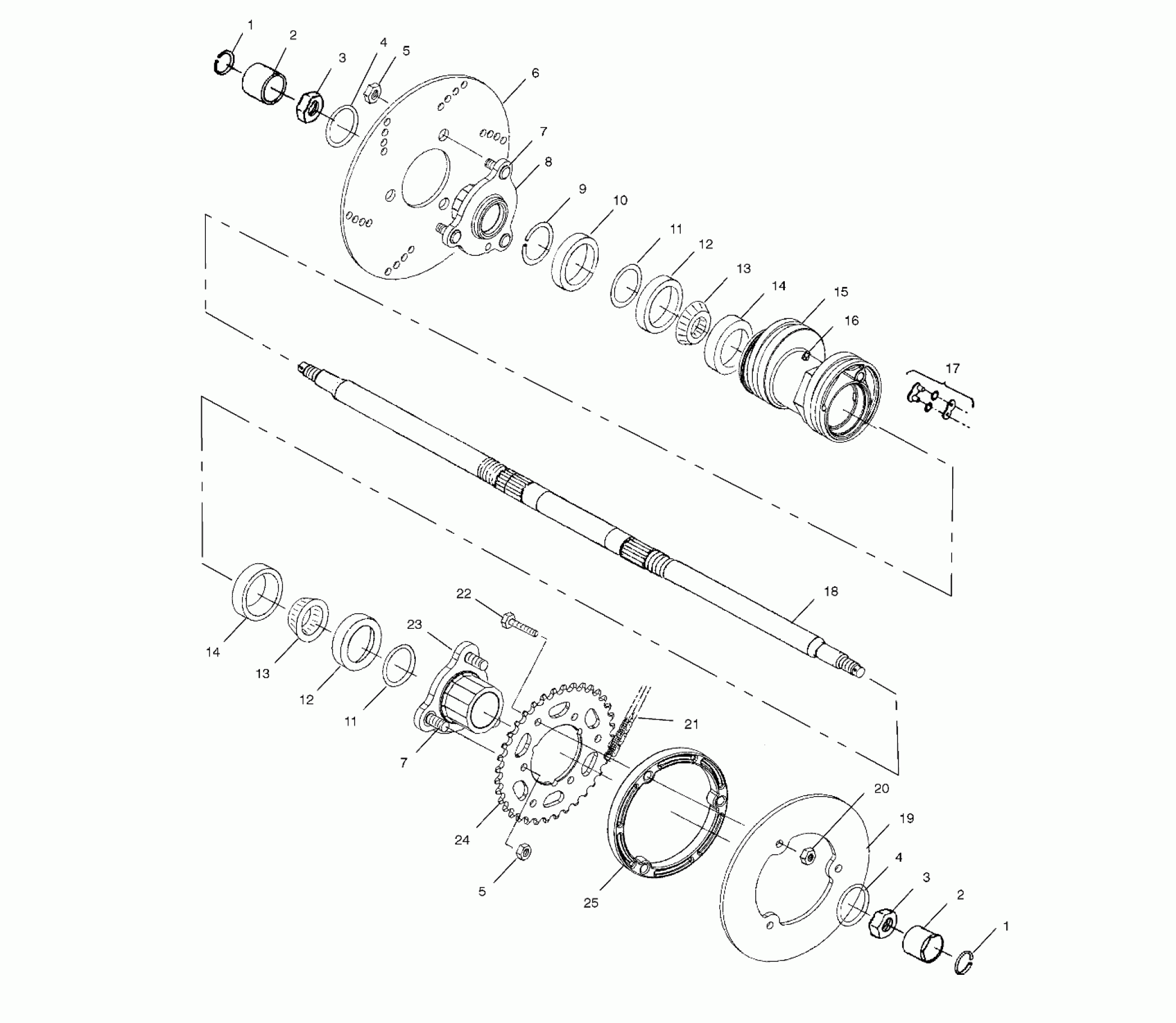

Polaris SCRAMBLER 500 4X4 - A02BG50AA REAR HOUSING - A02BG50AA/AC (4970027002C03) Diagram

#

Description
Price

1

Ring, Retaining

7710472

$5.56

1

Ring, Retaining

7710472

$5.56

2

Extrusion, Retainer, Nut

5510313

$54.99

2

Extrusion, Retainer, Nut

5510313

$54.99

3

Nut (If built before 6/3/01) (If built before 6/3/01)

7547031

$27.78

3

Nut (If built after 6/3/01) (If built after 6/3/01)

7547196

Unavailable

3

Nut (If built before 6/3/01) (If built before 6/3/01)

7547031

$27.78

3

Nut (If built after 6/3/01) (If built after 6/3/01)

7547196

Unavailable

4

Seal, Foam

5411555

$13.75

4

Seal, Foam

5411555

$13.75

5

Nut, Nylok

7542439

$1.19

5

Nut, Nylok

7542439

$1.19

6

Disc, Brake

5243678

Unavailable

7

Stud

7515513

$1.19

7

Stud

7515513

$1.19

8

Hub, Brake Disc (Incl. 7) (Incl. 7)

1520259

Unavailable

9

Ring, Retaining

7710405

$4.76

10

Spacer, Axle

5010462

$27.78

11

O-Ring

5410889

Unavailable

11

O-Ring

5410889

Unavailable

12

Seal

3610070

$16.17

12

Seal

3610070

$16.17

13

Bearing, Cone, Tapered

3554518

$39.68

13

Bearing, Cone, Tapered

3554518

$39.68

14

Bearing, Cup, Tapered

3554517

$15.87

14

Bearing, Cup, Tapered

3554517

$15.87

15

Housing, Axle, Rear

5132098

$126.57

16

Fitting, Lubrication

7080306

$3.17

17

Link, Connector, 520 Regina

3225027

$32.37

18

Axle, Rear (If built before 6/3/01) (If built before 6/3/01)

5020944

$699.99

18

Axle, Rear (If built after 6/3/01) (If built after 6/3/01)

5133181

$699.99

19

Guard, Sprocket, 38T

5211585-067

Unavailable

20

NUT, FLANGE LOCK

7547108

$4.76

21

Chain, 520 O-Ring

3221111-076

$129.51

22

Bolt

7512404

$3.97

23

Asm., Hub, Sprocket (Incl. 7) (Incl. 7)

1520258

$109.27

24

Sprocket, 36T

3222109

$113.99

25

Spacer

5630586

Unavailable
