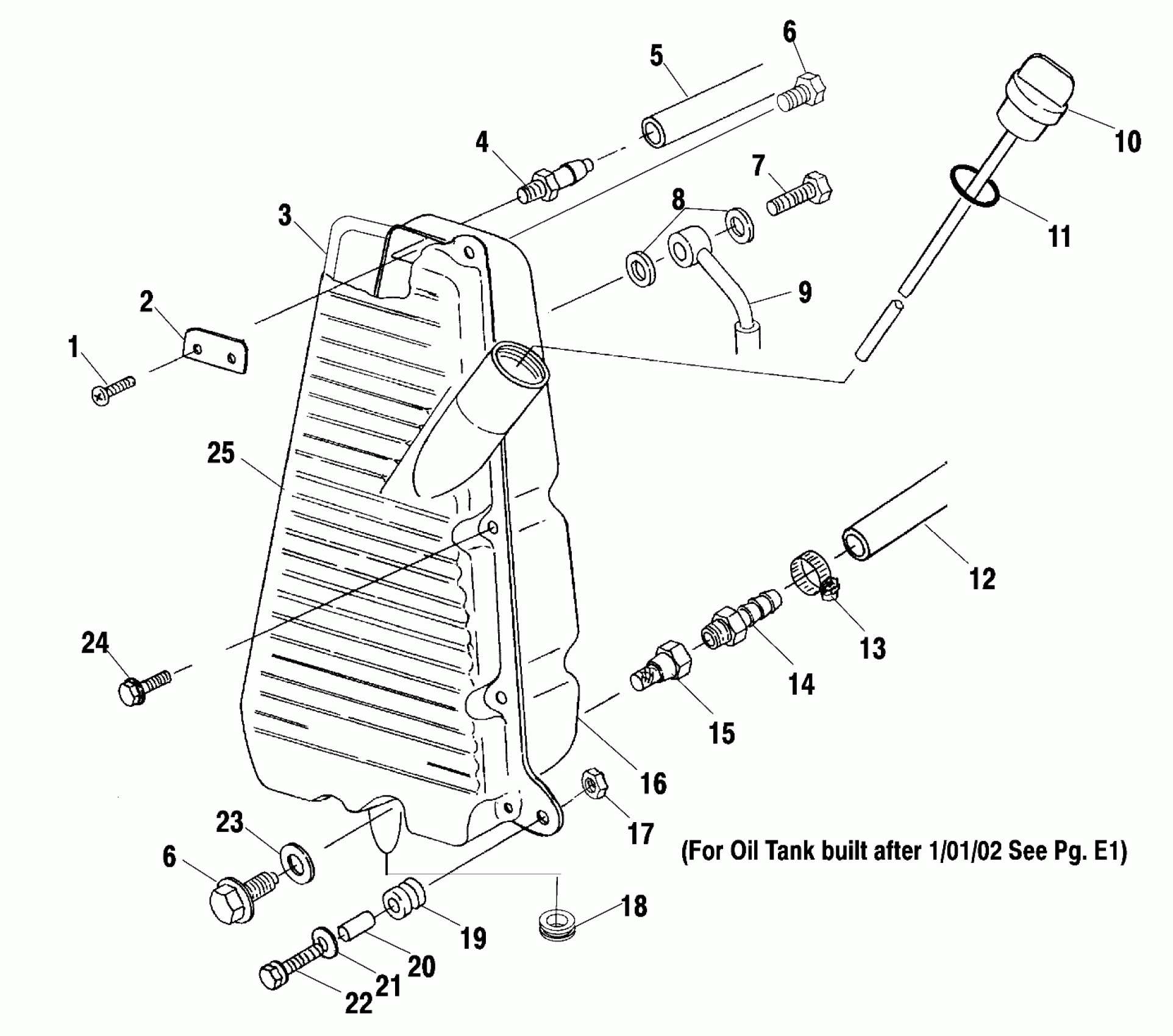

Polaris SCRAMBLER 500 4X4 - A02BG50AA OIL TANK (If Built Before 1/01/02) - A02BG50AA/AC (4970027002A11) Diagram

#

Description
Price

1

Screw

7511848

$3.99

2

Plate, Vent, Oil Tank

5211523

$13.99

3

Gasket, Oil Reservoir

5830053

$54.99

4

Fitting

7052163

Unavailable

5

Hose, Breather

5411873

Unavailable

6

PLUG

7051524

$27.99

6

PLUG

7051524

$27.99

7

Bolt, Banjo

7517102

Unavailable

8

Washer, Copper

7555896

$1.49

9

Tube, Banjo Return

7052213

Unavailable

10

DIPSTICK

5432289

Unavailable

11

O-Ring

5410889

Unavailable

12

Hose, Formed

5411036

Unavailable

13

CLAMP-HOSE,.875-SS

7080474

$8.40

14

Fitting, 1/4 Inch to 3/8 Inch

7052106

$6.23

15

Screen, Oil Filter

2530014

$9.91

16

Tank, Oil, LH

5131785

$131.99

17

Nut, Nylok

7542122

$1.49

18

Grommet

5411042

Unavailable

19

GROMMET, MOUNTING, RESERVOIR

5410828

$3.99

20

Bushing

5333204

$26.39

21

Washer, Flat

7558301

$1.49

22

SCREW

7512130

$3.99

23

Washer, Nylon

5850135

$3.19

24

Screw

7515158

$4.79

25

Tank, Oil, RH

5131255

Unavailable
