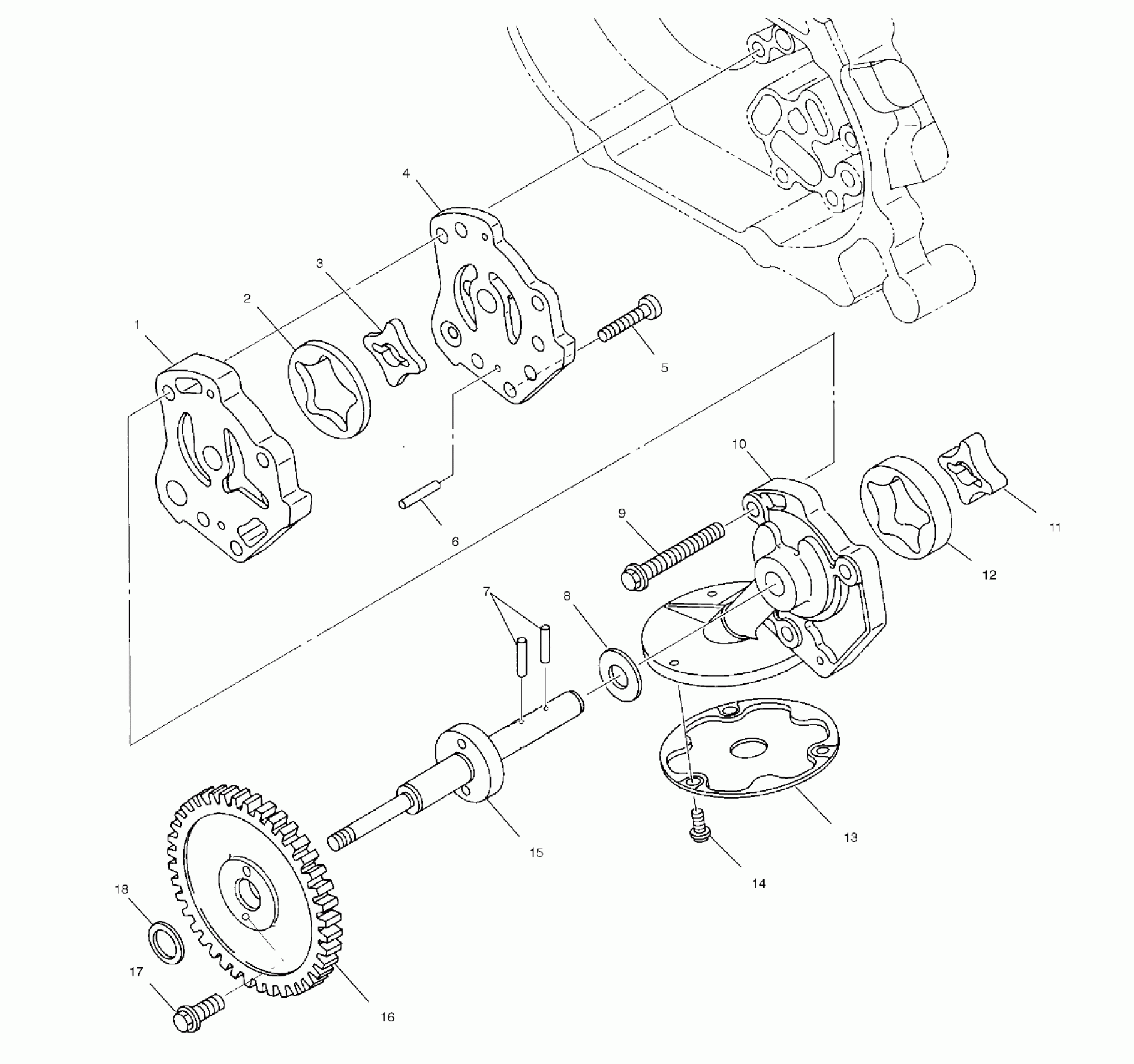

Polaris SCRAMBLER 500 4X4 - A02BG50AA OIL PUMP - A02BG50AA/AC (4970027002D08) Diagram

#

Description
Price

1

PUMP, OIL, CASE 2

3084946

$75.40

2

Rotor, Outer (Feed) (Feed)

3084949

$44.51

3

Rotor, Inner (Feed) (Feed)

3084948

Unavailable

4

Asm., Oil Pump (Incl. 1-8,10-15) (Incl. 1-8,10-15)

3085817

Unavailable

4

Pump, Oil, Case 1

3084945

Unavailable

5

SCREW

3085535

Unavailable

6

PIN, DOWEL

3084955

Unavailable

7

PIN, DOWEL

3084954

$7.14

8

WASHER

3084953

$3.17

9

Bolt and Washer

3084962

Unavailable

10

Pump, Oil, Case 3

3084947

$83.33

11

ROTOR, INNER

3084950

$32.37

12

ROTOR, OUTER

3090307

$48.56

13

UNIT, OIL STRAINER

3084956

Unavailable

14

Screw and Washer

3084205

$3.97

15

Shaft, Pump

3085818

Unavailable

16

Gear 2, Pump

3087173

Unavailable

17

Bolt, Flange

3085820

Unavailable

18

Spacer (0.8) (0.8)

3084959

Unavailable

18

Spacer (1.2) (1.2)

3084961

Unavailable

18

Spacer (1.0) (1.0)

3084960

Unavailable
