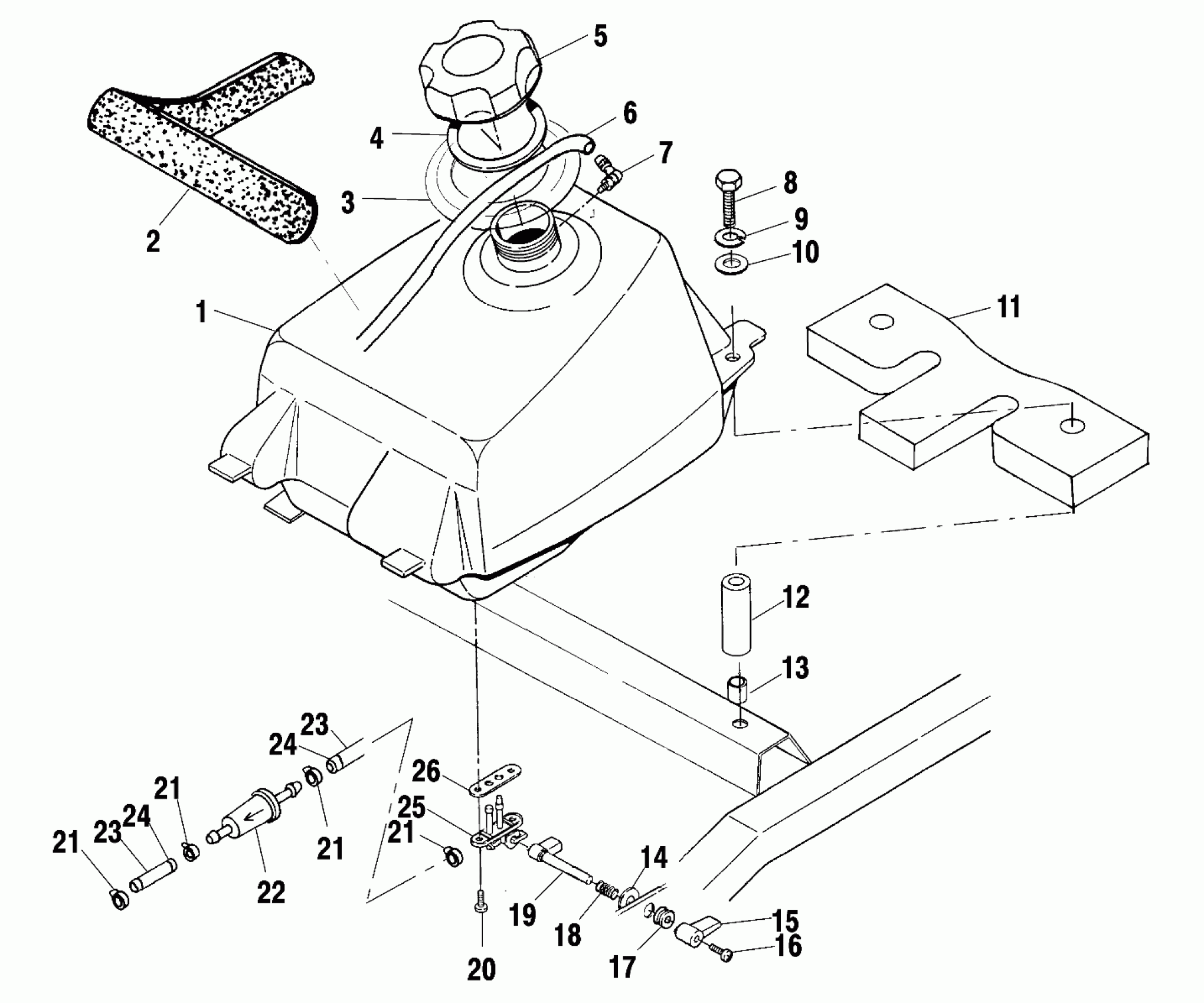

Polaris SCRAMBLER 500 4X4 - A02BG50AA FUEL TANK - A02BG50AA/AC (4970027002A12) Diagram

#

Description
Price

1

Asm., Fuel Tank (Incl. 7,20,25,26) (Incl. 7,20,25,26)

2520241

Unavailable

1

Tank, Fuel

5432879

Unavailable

2

Seal, Foam

5811527

Unavailable

3

Grommet, Fuel Tank

5410842

Unavailable

4

GASKET

5812123

$5.65

5

Cap, Gas Tank

5433687

$20.22

6

LINE, FUEL

8360009-600

Unavailable

7

Vent, Tank

5431053

$19.99

8

Screw

7512249

Unavailable

9

WASHER, SPRING LOCK

7552801

$1.59

10

Washer, Flat

7555859

$1.49

11

Seal, Foam

5811526

$31.99

12

Spacer

5332457

Unavailable

13

Nutsert

7547069

$3.99

14

Washer, Flat

7555726

$1.59

15

Lever, Fuel

5431021

$4.79

16

Screw

7511840

Unavailable

17

Grommet

5432291

$2.39

18

Spring, Lever, Compression

7041209

$7.19

19

Extension, Fuel Lever

5431391

$7.19

20

Screw

7515136

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

22

FILTER

2530009

$5.65

23

Sheath, Foil, Laminated

8450080-27

$64.75

23

Sheath, Foil, Laminated

8450080-27

$64.75

24

Line, Fuel

8450040-600

$68.79

24

Line, Fuel

8450040-600

$68.79

25

Valve, Fuel

7051006

$51.99

26

Gasket, Fuel Valve

5810859

$6.39
