Description

Price

1

BOLT

7512325

$2.39

2

Disc, Brake

5243675

Unavailable

3

Seal, Front Hub

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

Asm. Clutch, Front Hub, Elec./Mech. (Splined Drive Shaft) (Splined Drive Shaft)

1520281

$354.99

6

Bearing, Tapered Roller Cone

3554506

$31.99

6

Bearing, Tapered Roller Cone

3554506

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

7

Bearing, Tapered Roller Cup

3554507

$31.99

8

Stud

7515523

$3.19

9

Kit, Wheel Hub Asm., w/Cap (Incl. 3,7,8)

2202595

Unavailable

10

Cage, Roll

3250028

$218.56

11

Roll

3250010

$35.99

12

Spring, Garter

3250032

$17.59

13

Spacer

1321814

$24.99

14

Cam

3250030

$198.48

15

Plug, Magnetic Drain

7052045

$12.79

16

Tire, Titan (23x7-10) (23x7-10)

5411264

Unavailable

17

WASHER

7556004

$7.19

18

PIN, COTTER

7661401

$1.49

19

O-Ring

5410470

$2.41

20

Cap, Hub

5432611

$14.39

21

Screw

7512027

$1.49

22

Nut

7542810

$3.19

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

Rim, Front

1520175-117

Unavailable

25

VALVE-RIM

1525017

$5.59

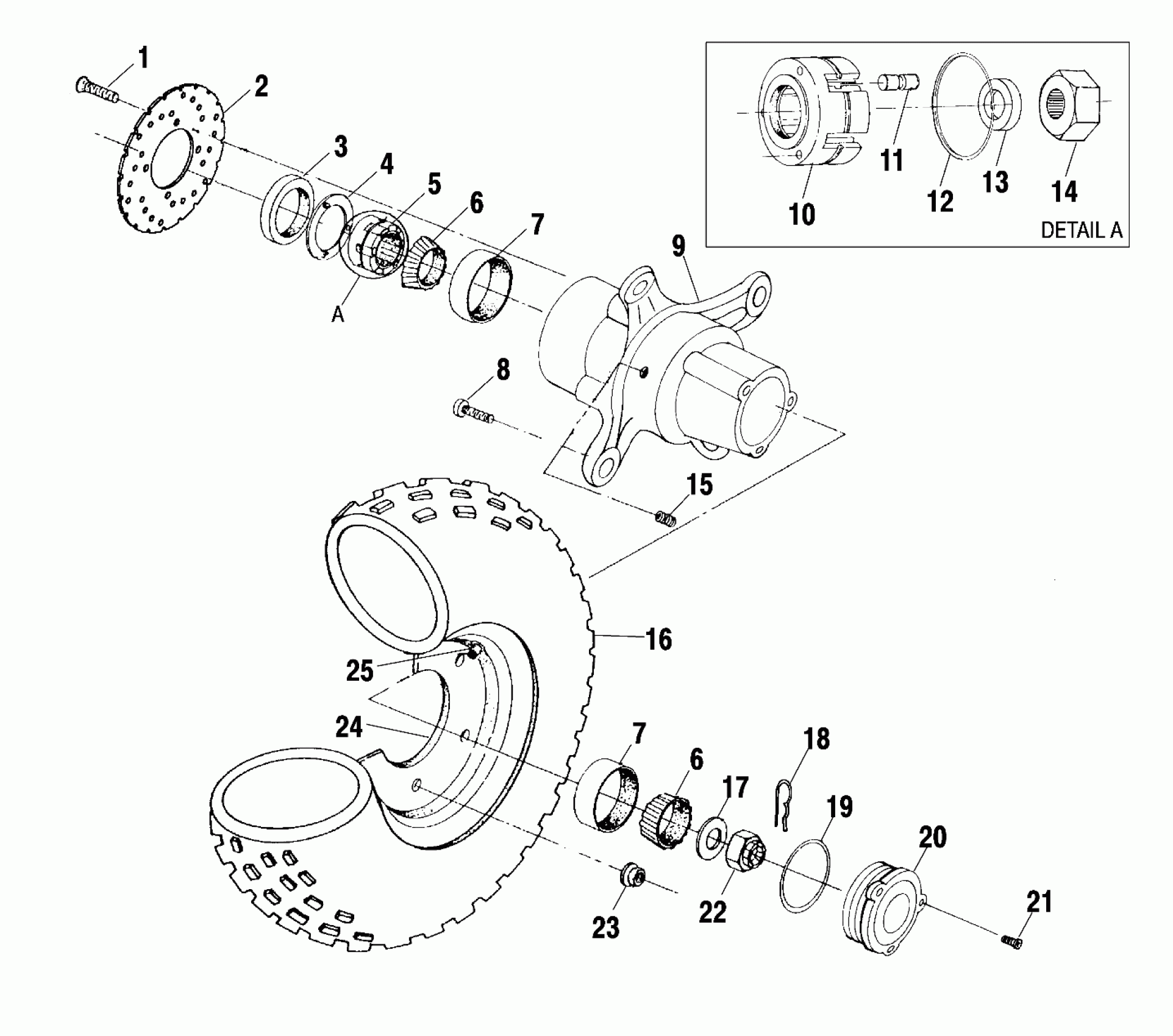

Polaris SCRAMBLER 500 4X4 - A02BG50AA FRONT WHEEL - A02BG50AA/AC (4970027002B05) Diagram

BOLT

Disc, Brake

Seal, Front Hub

Plate, Armature

Asm. Clutch, Front Hub, Elec./Mech. (Splined Drive Shaft) (Splined Drive Shaft)

Bearing, Tapered Roller Cone

Bearing, Tapered Roller Cone

Bearing, Tapered Roller Cup

Bearing, Tapered Roller Cup

Stud

Kit, Wheel Hub Asm., w/Cap (Incl. 3,7,8)

Cage, Roll

Roll

Spring, Garter

Spacer

Cam

Plug, Magnetic Drain

Tire, Titan (23x7-10) (23x7-10)

WASHER

PIN, COTTER

O-Ring

Cap, Hub

Screw

Nut

NUT-HXFL-3/8-24 B ZTB P-A

Rim, Front

VALVE-RIM
