Description

Price

-

Asm., Front Gearcase (Incl. 1-12,16-26) (Incl. 1-12,16-26)

1341323

$1,204.99

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal

3233248

$30.88

2

Seal

3233248

$30.88

3

Cover, Input, Front Housing

3233701

$39.37

4

O-Ring

3233700

Unavailable

5

RING, RETAINING

3233699

$7.19

6

BEARING,BALL

3233589

$59.99

7

Pinion, Input, 14T

3233726

Unavailable

8

Bushing

3233541

$23.99

9

Seal, Oil

3233319

$27.99

10

Bushing

3233697

Unavailable

11

Washer

3233324

$8.99

12

Plug

3233711

Unavailable

13

Clamp

7080756

$4.79

14

Line, Fuel

8450003-1525

Unavailable

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

TUBE, VENT

3233524

$7.19

17

Gearcase, Front Housing

3233696

Unavailable

18

Shaft, Output, 29T

3233725

Unavailable

19

BEARING

3233020

$47.99

20

SHIM

3233554

Unavailable

21

O-Ring

3233693

Unavailable

22

Cover, Output, Front Housing

3233724

Unavailable

23

SHIM

3233583

Unavailable

24

THRUST BUTTON

3233582

$7.91

25

Washer

3233254

$7.99

26

Plug, Drain

3233253

$34.99

27

Washer, Lock

7552603

$1.49

28

Screw

7512492

$1.49

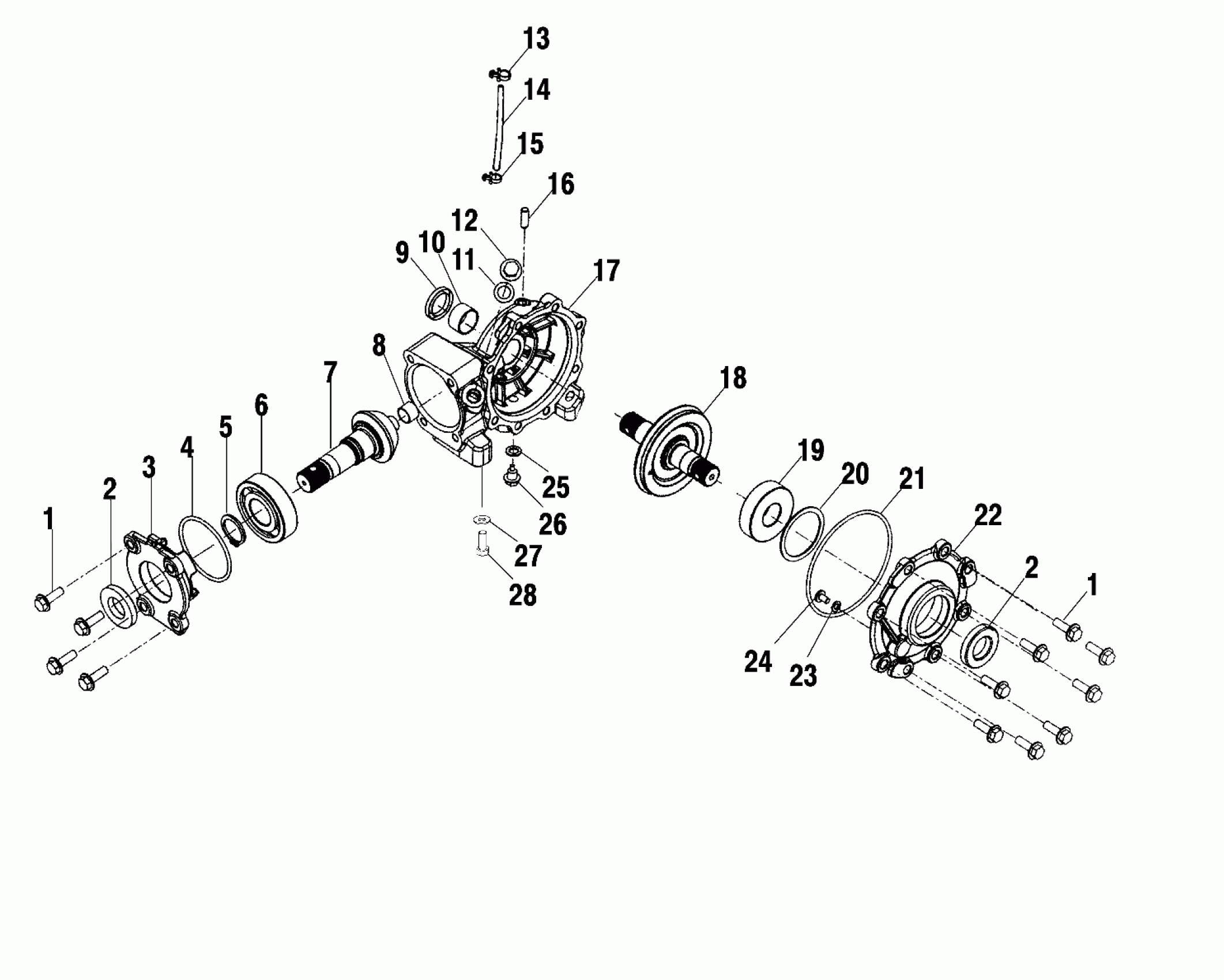

Polaris SCRAMBLER 500 4X4 - A02BG50AA FRONT HOUSING - A02BG50AA/AC (4970027002B01) Diagram

Asm., Front Gearcase (Incl. 1-12,16-26) (Incl. 1-12,16-26)

Screw

Screw

Seal

Seal

Cover, Input, Front Housing

O-Ring

RING, RETAINING

BEARING,BALL

Pinion, Input, 14T

Bushing

Seal, Oil

Bushing

Washer

Plug

Clamp

Line, Fuel

CLAMP-HOSE, (LARGE GREEN)

TUBE, VENT

Gearcase, Front Housing

Shaft, Output, 29T

BEARING

SHIM

O-Ring

Cover, Output, Front Housing

SHIM

THRUST BUTTON

Washer

Plug, Drain

Washer, Lock

Screw
