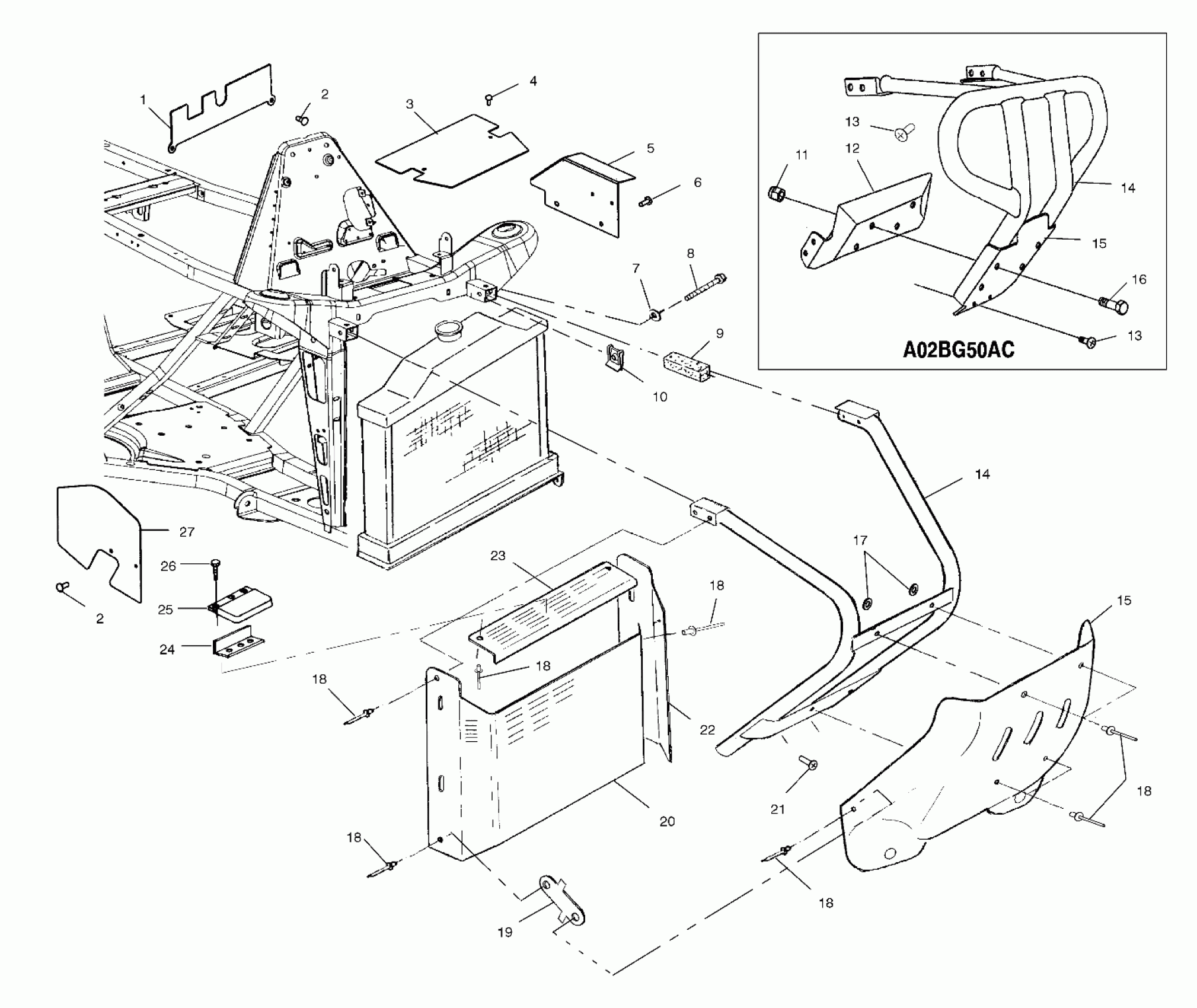

Polaris SCRAMBLER 500 4X4 - A02BG50AA FRONT BUMPER AND SHIELDS - A02BG50AA/AC (4970027002A05) Diagram

#

Description
Price

1

Shield, Splash, Rear

5434162

$12.39

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

3

Shield, Splash, Front

5434161

$12.39

4

Screw

7522026

$4.79

5

Shield, Splash, LH

5245415-067

$13.10

6

SCREW

7517386

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

Bolt

7512329

$3.99

9

Plug, Frame

5811675

Unavailable

10

U-Nut

7547071

$5.59

11

Nut, Nylok (AC)

7542122

$1.49

12

Shield, Radiator (AC)

5245744

Unavailable

13

Screw (AC)

7512252

Unavailable

13

Screw (AC)

7512252

Unavailable

14

Bumper, Front (AA)

1012773-067

$259.99

14

Bumper, Front (AC)

1013654

Unavailable

14

Bumper, Front (AA)

1012773-067

$259.99

14

Bumper, Front (AC)

1013654

Unavailable

15

Plate, Skid, Bumper (AA)

5432378-070

$92.39

15

Plate, Front (AC)

5245745

$74.39

15

Plate, Skid, Bumper (AA)

5432378-070

$92.39

15

Plate, Front (AC)

5245745

$74.39

16

Bolt (AC)

7517960

$3.19

17

WASHER

7555827

$3.99

18

Rivet (Qty. 9 for AC)

7661121

Unavailable

18

Rivet (Qty. 9 for AC)

7661121

Unavailable

18

Rivet (Qty. 9 for AC)

7661121

Unavailable

18

Rivet (Qty. 9 for AC)

7661121

Unavailable

18

Rivet (Qty. 9 for AC)

7661121

Unavailable

18

Rivet (Qty. 9 for AC)

7661121

Unavailable

19

Bracket, Radiator Shield

5242694-067

Unavailable

20

Shield, Radiator, Side, RH

5245343-067

Unavailable

21

SCREW

7515399

$1.49

22

Shield, Radiator, Side, LH

5245342-067

Unavailable

23

Shield, Radiator, Upper

5245344-067

Unavailable

24

Heat Sink

5131036

Unavailable

25

Regulator, Rectifier

4060173

Unavailable

26

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

27

Guard, Splash, RH

5434085

$28.95
