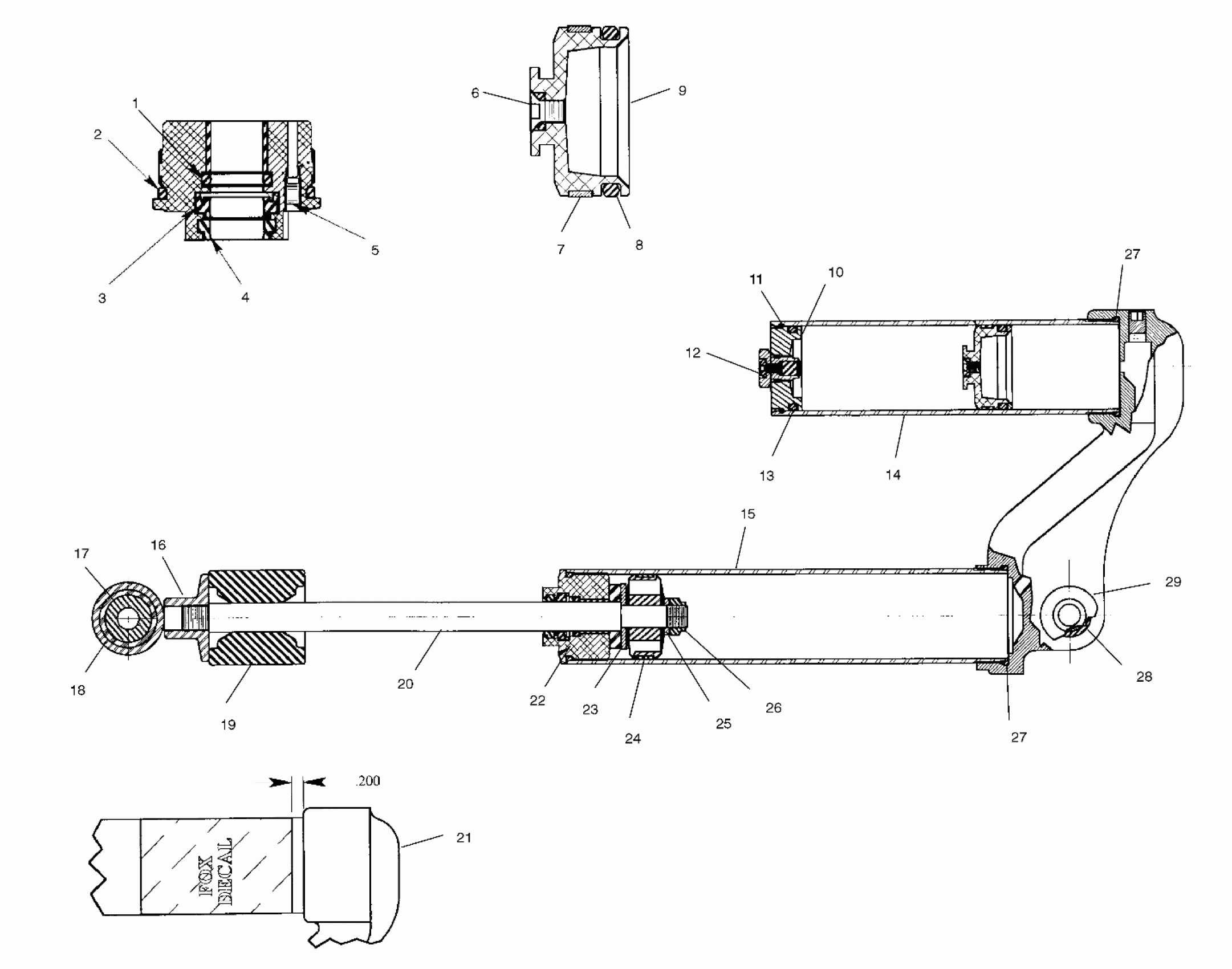

Polaris SCRAMBLER 500 4X4 - A02BG50AA FOX SHOCK-GAS-RESERVOIR - A02BG50AA/AC (4970027002C11) Diagram

#

Description
Price

-

Shock, Gas

7041867

Unavailable

1

O-Ring

1500021

$10.99

2

O-Ring

1500020

$10.63

3

Shaft, U-Cup

1500025

$28.32

4

Wiper, Shaft

1500024

$15.48

5

Screw

1500287

Unavailable

6

O-Ring

1500023

$2.84

6

Screw

1500018

$5.56

7

Bearing, External

1500006

$19.84

8

O-Ring

1500003

$8.89

9

Piston, Floating

1500011

$59.52

10

Asm., Cap, Reservoir, (Incl. 11,12,13) (Incl. 11,12,13)

1500099

$49.21

11

Ring, Retaining

1500097

$4.76

12

Asm., Air Valve

1500072

Unavailable

12

Screw

1500019

$6.35

12

O-Ring

1500022

Unavailable

13

O-Ring, ATV Fox Shock

1500098

$8.89

14

Asm., Reservoir

1500286

$126.98

15

Body

1500283

$61.90

16

Eyelet

1500013

$52.24

17

Sleeve

1500102

Unavailable

18

BUSHING

1500103

$8.89

19

Bumper, Compression

5410987

Unavailable

20

Shaft

1500284

Unavailable

21

Cap, Body

1500282

$180.16

22

Bearing

1500285

Unavailable

23

Plate, Top-Out

1500017

Unavailable

24

Bearing, External Piston

1500002

$31.75

25

Plate, Back-Up

1500015

$6.76

26

Nut, Lock

1500016

$12.70

27

O-Ring

1500004

$1.83

27

O-Ring

1500004

$1.83

28

Bushing

5020657

$15.87

29

Bushing

1500104

Unavailable
