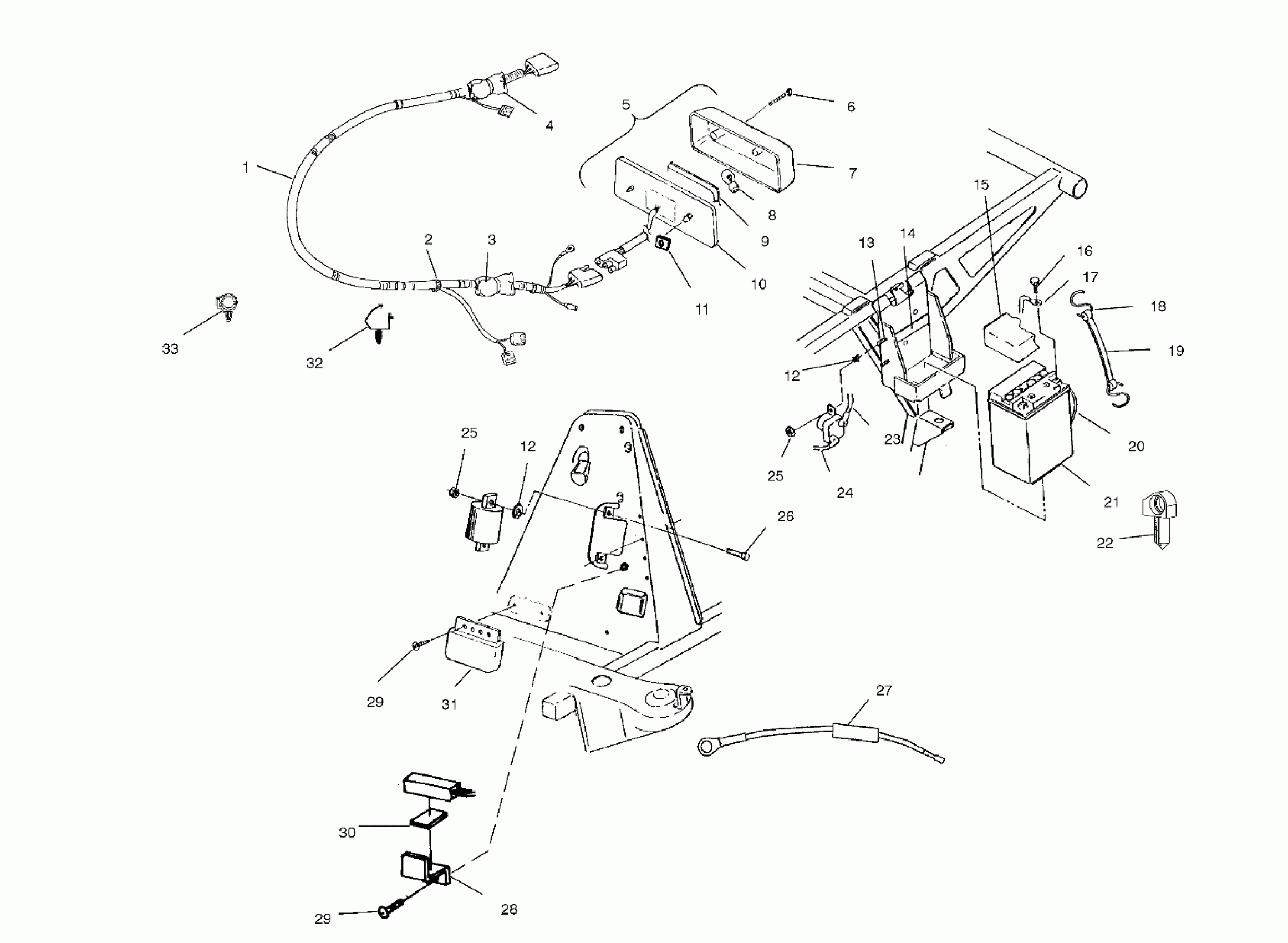

Polaris SCRAMBLER 500 4X4 - A02BG50AA ELECTRICAL/TAILLIGHT - A02BG50AA/AC (4970027002C06) Diagram

#

Description
Price

1

Harness, Main Wire

2460943

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Breaker, Circuit, 20 AMP

2434012

Unavailable

4

Kit, Circuit Breaker, Fan

2201795

$72.84

5

Asm., Taillight, 12V (Incl. 6-10)(If built after 2/04/02)

2410319

$84.98

5

Light, Tail/Brake (Incl. 6-10) (Incl. 6-10)(If built before 2/04/02)

2432038

$84.98

6

Screw

7512088

$1.64

7

Lens

4032085

$36.41

8

Bulb

4030043

$6.46

9

Gasket

4032086

Unavailable

10

Backing

4032087

Unavailable

11

Clip

7670093

Unavailable

12

Washer

7571602

$4.76

12

Washer

7571602

$4.76

13

Screw

7512027

$1.19

14

PAD-BATTERY

5810290

$7.27

15

Cover, Battery

5431769

$15.37

16

Kit, Battery Bolt

2200361

Unavailable

17

Cable, Battery/Engine, Black

4010095

Unavailable

18

Hook, Battery Strap

7010032

$1.59

19

Strap, Battery Holddown

5410424

$4.84

20

Tube, Battery Vent

5432077

$8.89

21

Battery

4140006

$99.99

22

Clip

7670102

$2.38

23

Cable, Battery/Solenoid, Red

4010094

Unavailable

24

Cable, Solenoid/Starter

4010093

$48.56

25

Nut, Nylok

7541925

$0.79

25

Nut, Nylok

7541925

$0.79

26

BOLT

7512007

$3.97

27

Kit, Fusible Link

2202147

$84.99

28

Bracket, CDI

5246378

Unavailable

29

SCREW

7512024

$4.76

29

SCREW

7512024

$4.76

30

Pad, Fuel Tank Bracket

5810317

Unavailable

31

Limiter, RPM, LR-83-3

4010195

Unavailable

32

CLIP, ROUTING

7670109

$2.38

33

Clip, Rosebud

4020149

$6.35
