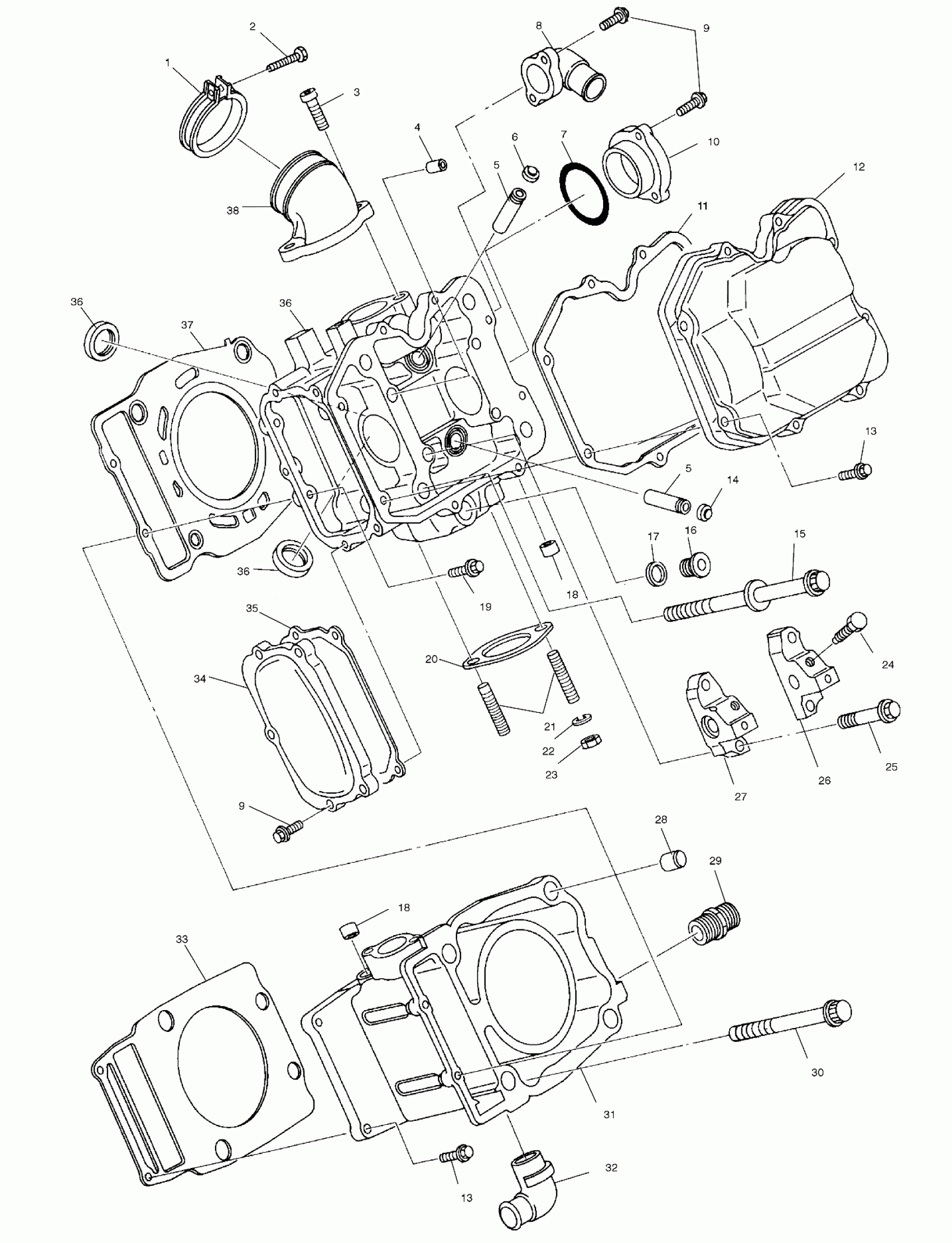

Polaris SCRAMBLER 500 4X4 - A02BG50AA CYLINDER - A02BG50AA/AC (4970027002D01) Diagram

#

Description
Price

1

Asm., Band, Adapter (Incl. 2) (Incl. 2)

3084045

Unavailable

2

SCREW

3081497

$2.39

3

Bolt

3081330

$3.99

4

Pin, Straight

3084857

Unavailable

5

GUIDE, VALVE

3084994

$39.99

5

GUIDE, VALVE

3084994

$39.99

6

Seal, Intake Valve

3084858

$13.59

7

O-RING

3084867

$23.99

8

Adapter, Water Out

3085072

Unavailable

9

BOLT, FLANGE

3084877

Unavailable

9

BOLT, FLANGE

3084877

Unavailable

10

ADAPTER, CAMSHAFT

3084866

Unavailable

11

GASKET, ROCKER COVER

3085074

$31.99

12

COVER, ROCKER

3085073

$75.99

13

BOLT, FLANGE

3084874

Unavailable

13

BOLT, FLANGE

3084874

Unavailable

14

SEAL, EXHAUST VALVE

3084859

$23.99

15

Bolt, Cylinder Head

3084875

Unavailable

16

PLUG

3084860

$7.19

17

GASKET

3084861

$4.79

18

PLUG, BLIND

3084862

Unavailable

18

PLUG, BLIND

3084862

Unavailable

19

Bolt, Flange

3084215

Unavailable

20

Gasket, Exhaust

3085075

$39.99

21

Stud

3085326

Unavailable

22

Washer, Lock

3080530

$3.19

23

Nut

3080285

Unavailable

24

BOLT, ROCKER SHAFT

3085854

Unavailable

25

BOLT

3084876

$4.79

26

Support, Valve Rocker Shaft (PTO) (PTO)

3084864

Unavailable

27

Support, Valve Rocker Shaft (MAG) (MAG)

3084863

$91.99

28

Pin, Straight

3084838

Unavailable

29

Union, Oil Pump

3084849

Unavailable

30

BOLT, FLANGE

3084873

Unavailable

31

Cylinder (Incl. 32) (Incl. 32)

3086811

Unavailable

32

Pipe 2, Elbow

3084130

Unavailable

33

Gasket, Cylinder

3085370

$38.60

34

Cover, Camshaft

3084868

Unavailable

35

Gasket, Cover, Cam

3086200

Unavailable

36

Head, Cylinder (Incl. 4-6,14,16-18,21) (Incl. 4-6,14,16-18,21)

3085527

$712.79

36

Head, Cylinder (Incl. 4-6,14,16-18,21) (Incl. 4-6,14,16-18,21)

3085527

$712.79

36

Head, Cylinder (Incl. 4-6,14,16-18,21) (Incl. 4-6,14,16-18,21)

3085527

$712.79

37

GASKET, HEAD

3085371

$55.99

38

ADAPTER

3085809

Unavailable
