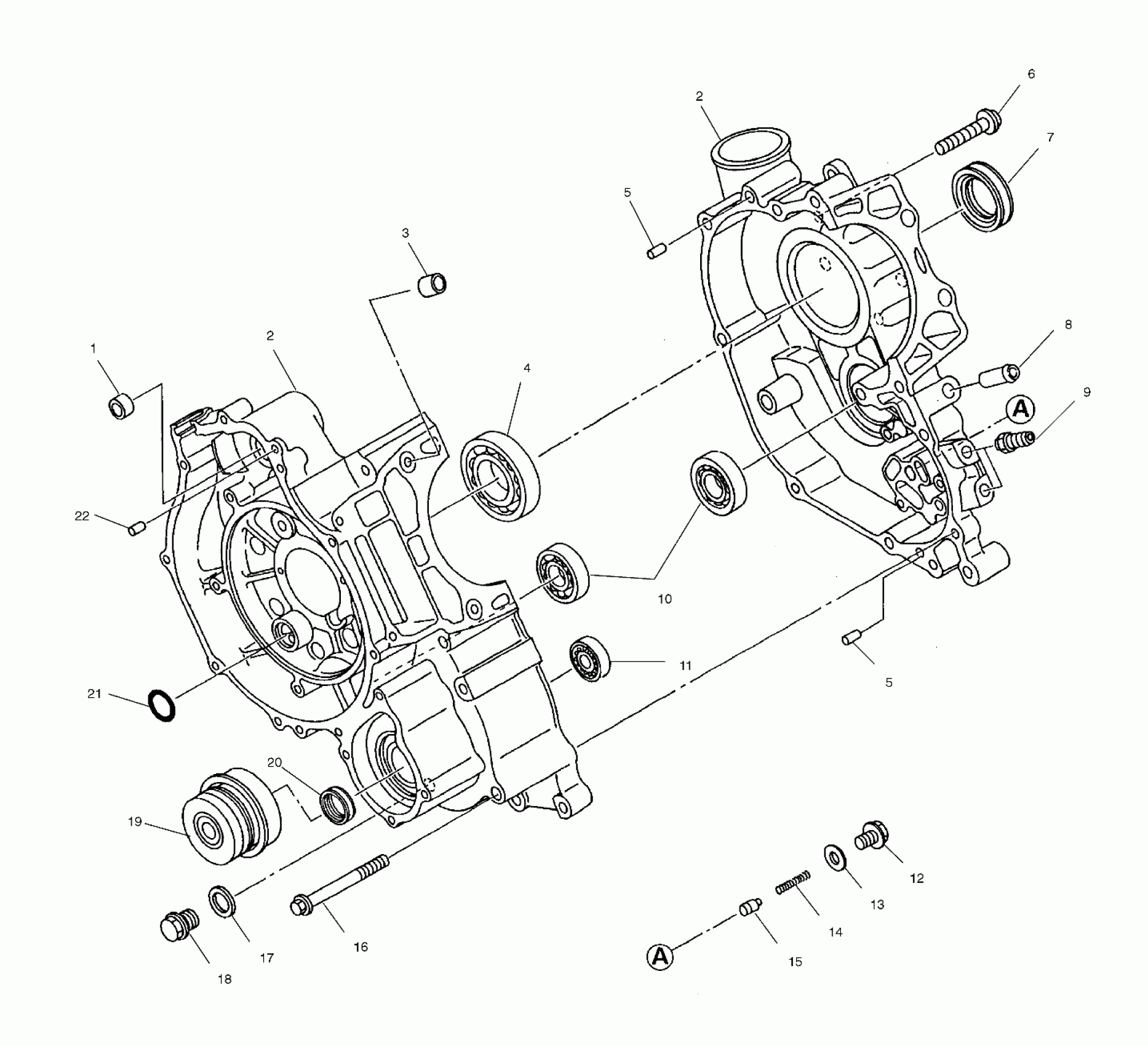

Polaris SCRAMBLER 500 4X4 - A02BG50AA CRANKCASE - A02BG50AA/AC (4970027002C13) Diagram

#

Description
Price

1

BUSHING, STARTER

3083669

Unavailable

2

Asm., Crankcase (Incl. 1,4,5,7,8,10,11,16,19,20,22) (Incl. 1,4,5,7,8,10,11,16,19,20,22)

3085808

Unavailable

2

Asm., Crankcase (Incl. 1,4,5,7,8,10,11,16,19,20,22) (Incl. 1,4,5,7,8,10,11,16,19,20,22)

3085808

Unavailable

3

Pin, Straight

3084838

Unavailable

4

BEARING, BALL

3080676

$39.99

5

Pin, Dowel

3084840

Unavailable

5

Pin, Dowel

3084840

Unavailable

6

Screw and Washer

3084205

$3.99

7

SEAL, OIL

3084839

$27.99

8

PIPE, AIR BREATHER

3085525

Unavailable

9

Union

3084842

Unavailable

10

BEARING, BALL

3084834

$23.99

11

BEARING, BALL

3084835

Unavailable

12

PLUG

3084845

Unavailable

13

GASKET, ALUMINUM

3084846

$5.59

14

Spring, Valve, One Way

3084844

$3.99

15

VALVE, ONE WAY

3086810

Unavailable

16

BOLT, FLANGE

3084841

Unavailable

17

GASKET

3082956

$4.84

18

PLUG

3083453

Unavailable

19

SEAL, MECHANICAL

3084837

$68.79

20

SEAL, OIL

3084836

Unavailable

21

O-RING

3084847

$6.39

22

Pin, Dowel

3080103

$7.14
