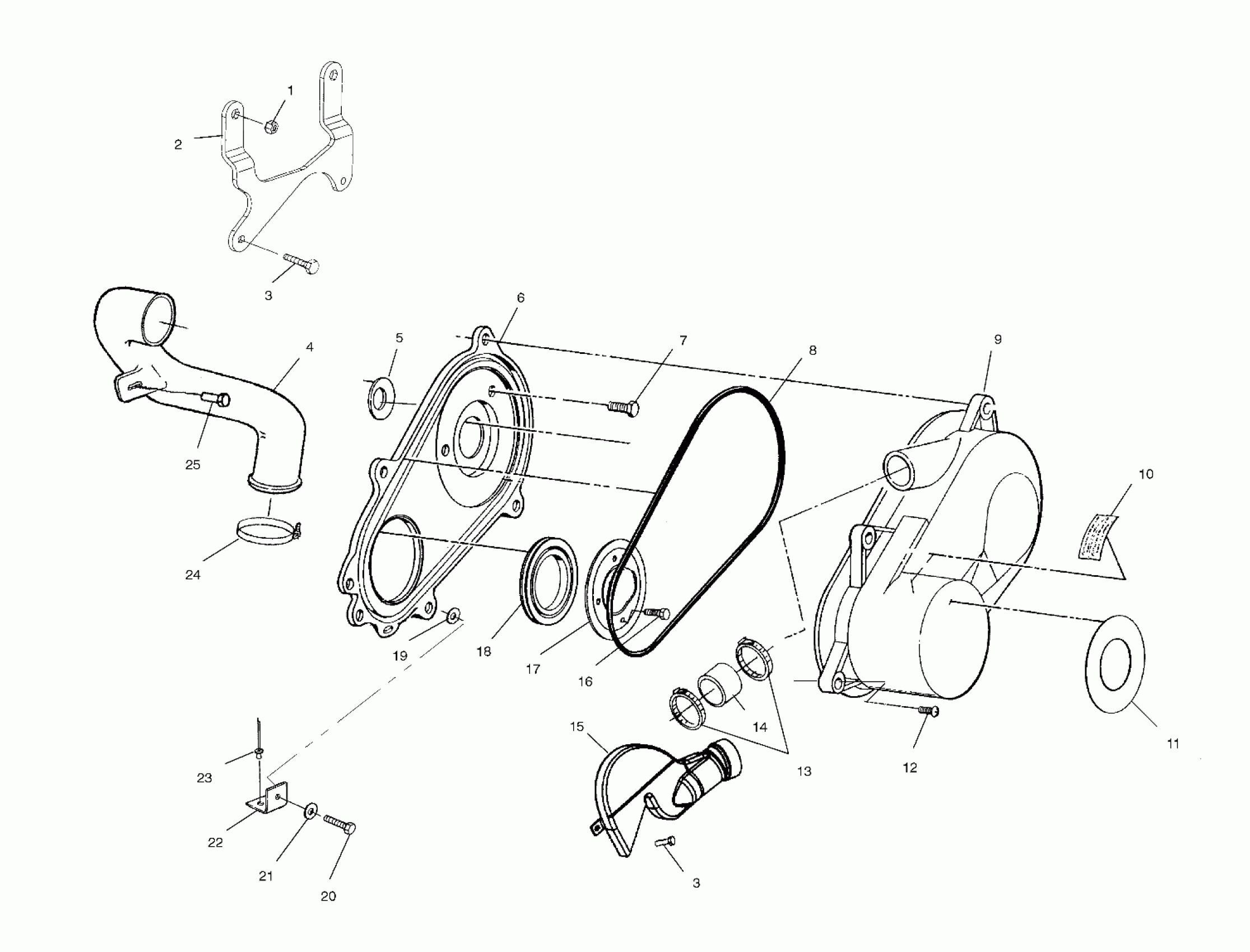

Polaris SCRAMBLER 500 4X4 - A02BG50AA CLUTCH COVER - A02BG50AA/AC (4970027002C05) Diagram

#

Description
Price

1

Nutsert

7547067

$6.23

2

Bracket, Clutch Cover

5242208-067

Unavailable

3

SCREW

7517386

$1.49

3

SCREW

7517386

$1.49

4

Duct, Down Tube, Inlet

5432698

Unavailable

5

Seal, Cover

5411553

$23.99

6

Kit - Inner Clutch Cover (Incl. 12,21) (Incl. 12,21)(If built after 4/12/01)

2201851

$125.46

6

Kit - Inner Clutch Cover (Incl. 12,21) (Incl. 12,21)(If built before 4/12/01)

2201160

$121.41

7

Bolt and Washer

7517860

Unavailable

8

Seal, Clutch Cover

5521301

$30.88

9

Cover, Clutch, Outer

5433451-070

$178.08

10

Decal, Warning, Clutch Cover

7078689

Unavailable

11

Decal, Automatic Transmission

7074782

Unavailable

12

SCREW

7512094

$1.59

13

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

14

Boot, Duct

5411489

Unavailable

15

Duct, Clutch, Hi-Flow

5434160

Unavailable

16

SCREW AND WASHER (See Crankcase Pg. C13, Ref. 6)

-------

Unavailable

17

Bracket, Clutch Seal

5242046

$35.99

18

Seal, Cover, Case

5410575

Unavailable

19

Washer, Nylon

7555932

$2.39

20

Screw

7512098

$1.59

21

Washer

7555935

$2.39

22

Bracket, Clutch Cover, Front

5242693-067

Unavailable

23

Rivet

7661638

$1.49

24

Clamp, Narrow Band

7080511

$4.79

25

Screw

7517916

$6.39
