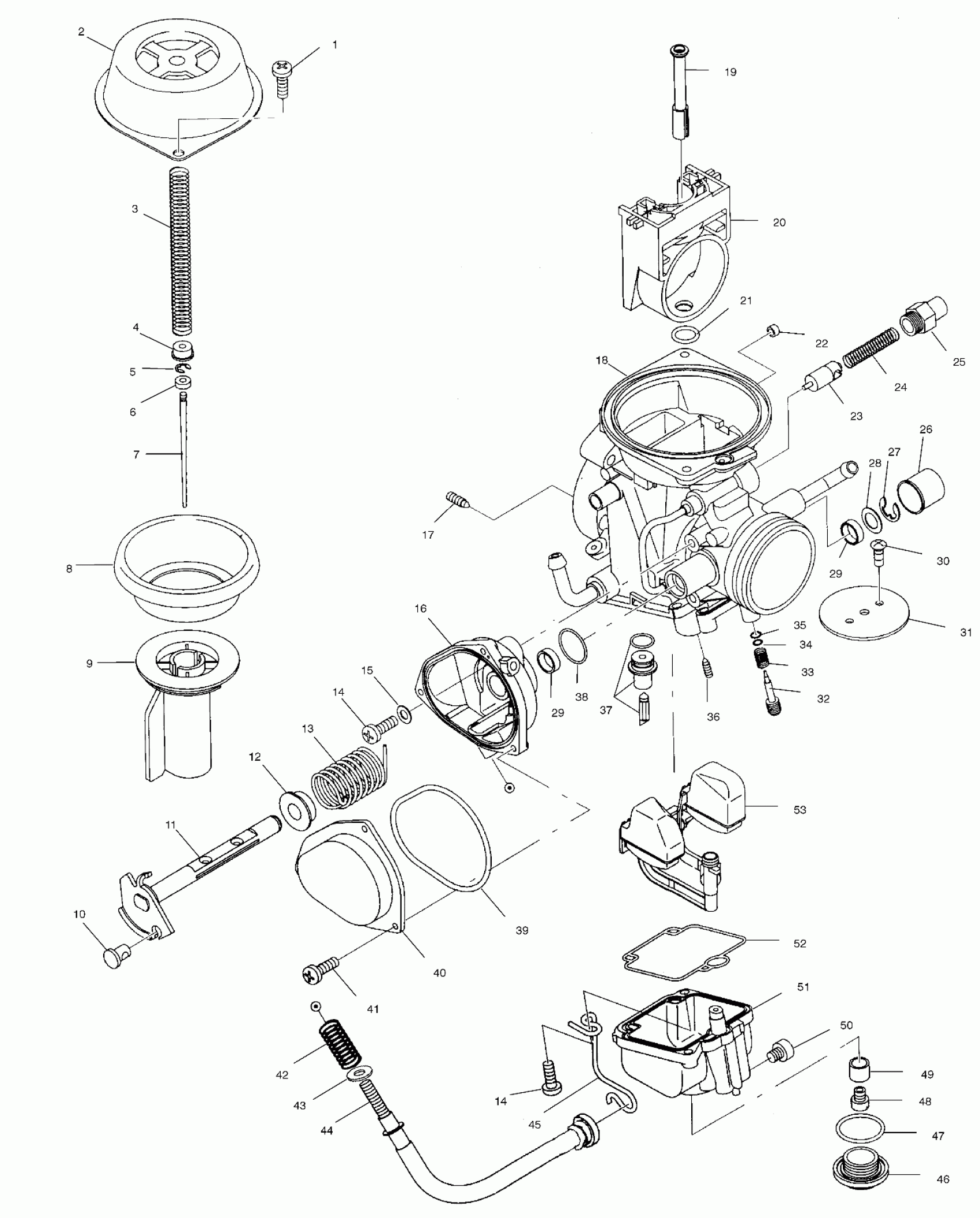

Polaris SCRAMBLER 500 4X4 - A02BG50AA CARBURETOR - A02BG50AA/AC (4970027002D03) Diagram

#

Description
Price

1

Screw

3130821

$7.14

2

COVER, DIAPHRAGM

3130914

$48.56

3

SPRING

3130911

$11.32

4

RING

3130913

$5.65

5

E-RING

3130908

$6.46

6

RING

3130915

$5.65

7

Needle, Jet

3131358

$44.51

8

DIAPHRAGM

3130910

$68.79

9

VALVE, PISTON

3130912

$71.10

10

GUIDE, CABLE

3130543

$32.37

11

Asm., Throttle Shaft

3130931

$64.75

12

RING

3130932

$1.99

13

SPRING

3130927

$6.99

14

SCREW

3130933

$2.38

14

SCREW

3130933

$2.38

15

WASHER

3130926

$3.97

16

CASE

3130925

$69.99

17

JET, AIR

3130619

$8.08

18

Asm., Carburetor (Incl. 1-53) (Incl. 1-53)

3131307

$622.24

19

Jet, Needle

3131309

Unavailable

20

Block, Jet

3131290

$47.49

21

O-RING

3130916

$4.84

22

Cap

3131208

Unavailable

23

Asm., Plunger

3130593

$40.46

24

SPRING

3130538

$5.65

25

Cap, Plunger

3130199

$28.32

26

CAP

3130519

$10.51

27

E-RING

3130518

$1.60

28

PACKING

----

Unavailable

29

SEAL

3130515

$12.13

29

SEAL

3130515

$12.13

30

Screw

3130906

$3.97

31

Valve, Throttle (120) (120)

3130907

$54.99

32

ADJUSTER

3130934

$12.99

33

Spring

3130525

$5.65

34

Washer

3130523

$2.38

35

O-Ring

3130522

$5.65

36

Jet, Pilot (#40) (#40)

3131306

$28.32

37

Valve, Needle (1.5) (1.5)

3131359

$72.84

38

O-RING

3130928

$6.46

39

O-Ring

3131294

$14.24

40

COVER

3130930

$36.41

41

SCREW

3130924

$1.59

42

Spring

3130010

$9.70

43

WASHER

3131296

$9.52

44

ASM., ADJUSTER, CABLE

3131295

Unavailable

45

CLIP

3131242

$33.24

46

Screw, Guide

3131291

$23.81

47

O-RING

3130239

Unavailable

48

Jet, Main (#155) (#155)

3131308

$8.89

49

RING

3130919

Unavailable

50

SCREW

3130935

$6.64

51

Asm., Float Body

3130923

$75.54

52

SEAL

3130917

$7.27

53

Asm., Float

3131293

$75.54
