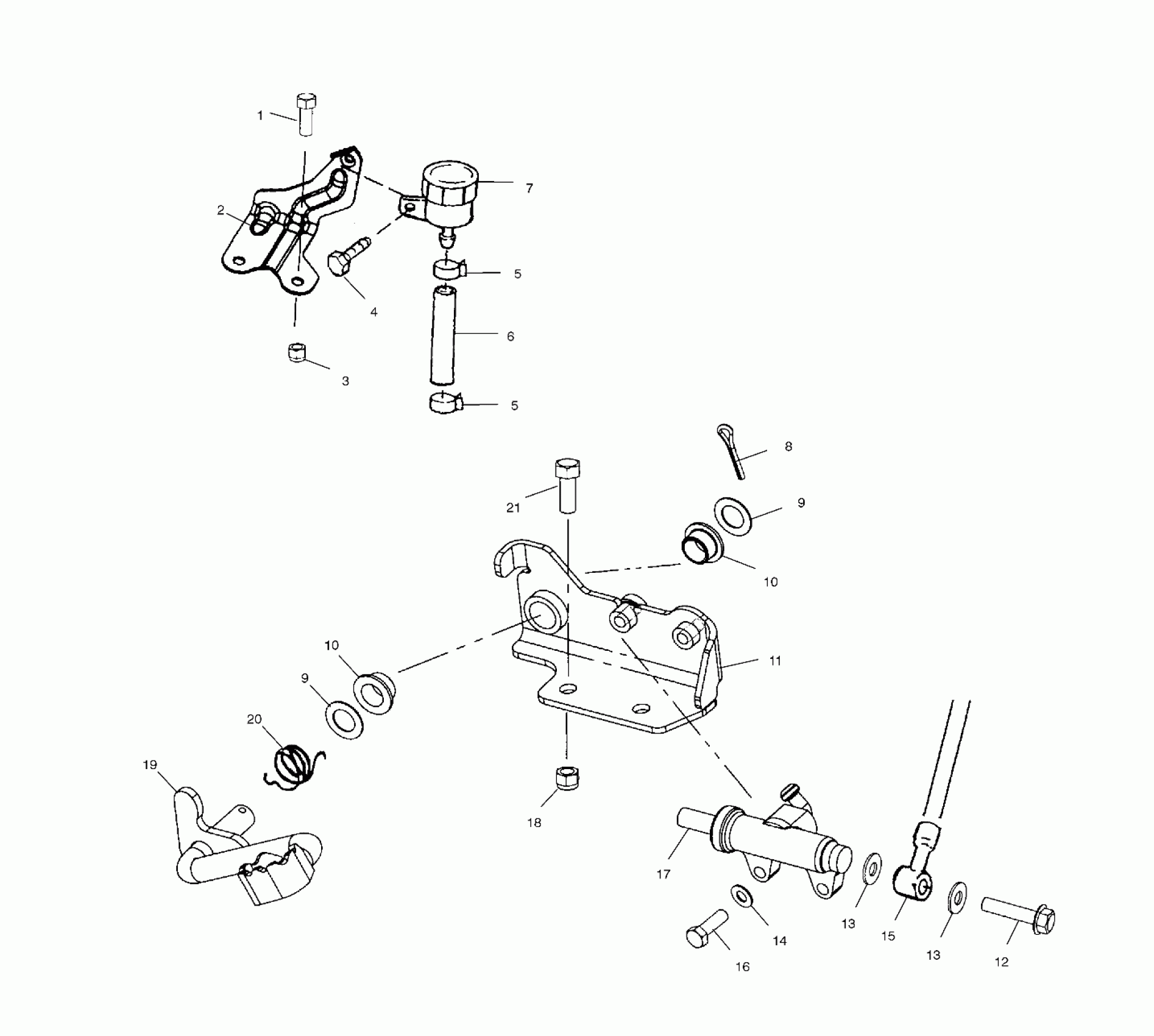

Polaris SCRAMBLER 500 4X4 - A01BG50AA REAR BRAKE MASTER CYLINDER - A01BG50AA (4963766376C002) Diagram

#

Description
Price

1

SCREW(10)

7512113

$3.97

2

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.71

3

NUT-LOCK(10)

7542122

$1.19

4

SCREW(10)

7512208

$2.74

5

HOSE CLAMP, RED

7080003

$1.19

5

HOSE CLAMP, RED

7080003

$1.19

6

HOSE,RESERVOIR,1/4ID,4.75 IN

1910404

Unavailable

7

RESERVOIR ASM,R.BRAKE

1930854

$36.41

8

COTTER PIN(10)

7661401

$0.79

9

WASHER(10)

7555919

$4.99

9

WASHER(10)

7555919

$4.99

10

BUSHING-PEDAL PIVOT

5431107

$8.73

10

BUSHING-PEDAL PIVOT

5431107

$8.73

11

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

12

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

13

Seal

5410988

$4.84

13

Seal

5410988

$4.84

14

WASHER(10)

7558301

$1.19

15

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. C1, Ref. 6)

----

Unavailable

16

SCREW(10)

7515179

$2.38

17

BRAKE MSTR CYL,FOOT,BANJO

1910311

$174.03

18

NUT-5/16-18 NYLOK-Y

7542324

$0.79

19

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

20

SPRING-TORSION,BRAKE

7041750

$8.89

21

BOLT(10)

7515321

Unavailable
