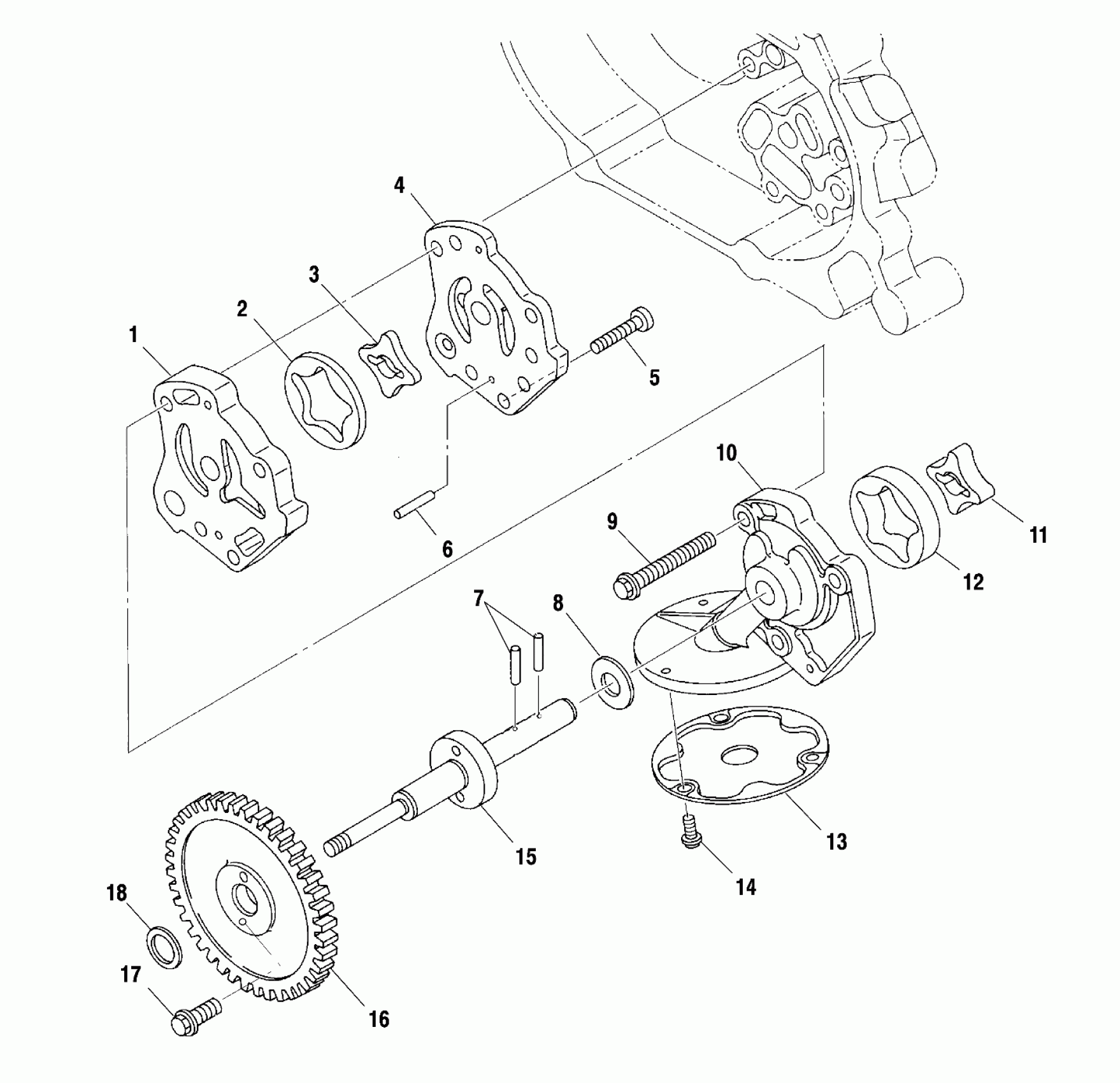

Polaris SCRAMBLER 500 4X4 - A01BG50AA OIL PUMP - A01BG50(AA)(AB) (4963766376D009) Diagram

#

Description
Price

1

CASE #2,OILPUMP

3084946

$75.99

2

ROTOR,OUTER,FEED (Feed)

3084949

$39.99

3

ROTOR,INNER,FEED (Feed)

3084948

Unavailable

4

PUMP ASM,OIL (Incl. 1-8,10-15)

3085817

Unavailable

4

CASE #1,OILPUMP

3084945

Unavailable

5

SCREW(10)

3085535

$2.39

6

PIN, DOWEL

3084955

$7.19

7

PIN, DOWEL

3084954

$7.19

8

WASHER(10)

3084953

$3.19

9

BOLT&WASHER ASM.

3084962

$27.99

10

CASE #3,OILPUMP

3084947

Unavailable

11

ROTOR,INNER,SCAV.

3084950

$27.99

12

ROTOR,OUTER

3090307

$43.99

13

STRAINER UNIT,OIL

3084956

$67.99

14

SCREW & WASHER(10)

3084205

$3.99

15

SHAFT,PUMP Substituted by 3085858

3085818

Unavailable

16

PUMP GEAR(2)

3085859

Unavailable

17

BOLT,FLANGE

3085820

Unavailable

18

SPACER (0.8)

3084959

Unavailable

18

SPACER (1.2)

3084961

Unavailable

18

SPACER (1.0)

3084960

Unavailable
