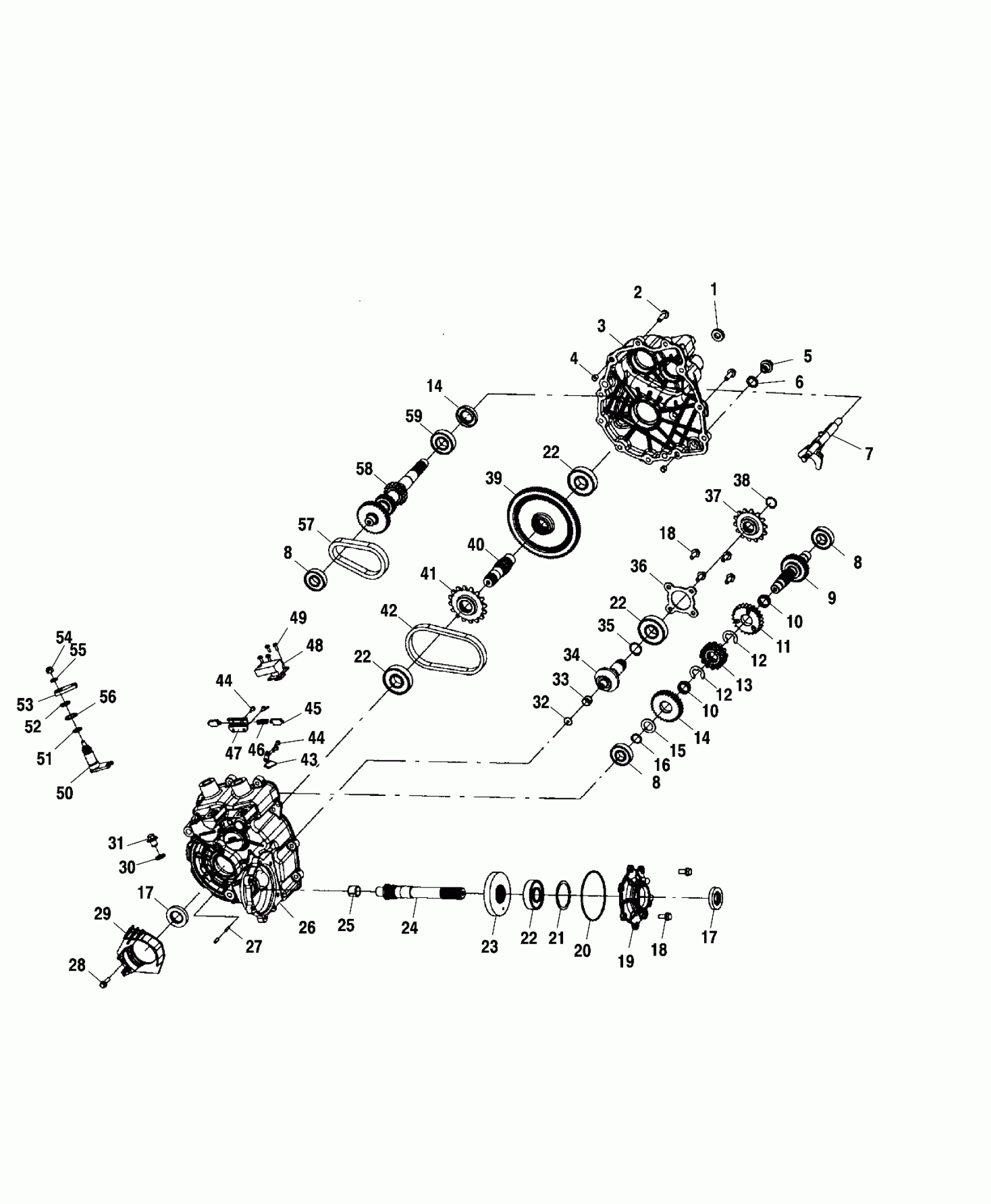

Polaris SCRAMBLER 500 4X4 - A01BG50AA GEARCASE (If Built After 4/29/01)- A01BG50AA (4963766376e02) Diagram

#

Description
Price

-

Asm., Gearcase, Main (Incl. All)(If built after 4/29/01)(See Gearcase Pg. C10 if built before 4/29/01) (Incl. All)(If built after 4/29/01)(See Gearcase Pg. C10 if built before 4/29/01)

1341382

$1,814.99

1

Bushing, Pivot

3233527

$39.99

2

Screw

3233252

$5.69

3

Gearcase, HLR, Hybrid Mach LH

3233632

$354.99

4

Pipe, Knock

3233529

$10.99

5

Plug, Drain

3233448

$23.81

6

Washer

3233035

Unavailable

7

Fork, Shift, H/R

3233633

$141.65

8

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

8

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

8

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

Shaft, Reverse, 31T

3233728

$115.08

10

BEARING, NEEDLE

3233718

$35.71

10

BEARING, NEEDLE

3233718

$35.71

11

Sprocket, 24T

3233719

$109.27

12

Ring, Retaining, E-Clip

3233720

$9.52

12

Ring, Retaining, E-Clip

3233720

$9.52

13

Dog, Engagement

3233721

Unavailable

14

Gear, 30T

3233722

Unavailable

14

Gear, 30T

3233722

Unavailable

15

WASHER, THRUST

3233176

$9.52

16

Ring, Retaining

3233177

$6.46

17

Seal, Triple Lip

3233788

$32.37

17

Seal, Triple Lip

3233788

$32.37

18

Screw

3233539

Unavailable

18

Screw

3233539

Unavailable

19

Cover, Snorkel Drive

3233556

$31.11

20

O-Ring

3233555

$6.06

21

SHIM

3233554

Unavailable

22

BEARING

3233020

$47.62

22

BEARING

3233020

$47.62

22

BEARING

3233020

$47.62

22

BEARING

3233020

$47.62

23

Gear, 25T

3233898

$229.37

24

Shaft, Snorkel

3233899

$133.56

25

BUSHING-GARLOCK

3233552

$23.81

26

Gearcase, RH

3233896

$499.99

27

Vent, Tube

3233037

Unavailable

28

Screw

3233026

$6.46

29

Guide, Chain

3233897

$59.99

30

Washer

3233324

$8.54

31

Plug, Oil Fill

3233711

Unavailable

32

Washer, Thrust

3233542

$11.32

33

Bushing, Garlock

3233541

$23.81

34

Shaft, Pinion

3233540

$158.73

35

RING, RETAINING

3233306

$4.76

36

Cover, Bearing

3233263

Unavailable

37

Sprocket, 14T

3233538

Unavailable

38

Ring, Retaining

3233537

$6.99

39

Gear, 98T

3233558

$211.90

40

Shaft, Output

3233544

$174.99

41

Sprocket, 16T

3233545

$55.56

42

Chain, Roller

3233546

$68.79

43

Deflector, Oil

3233043

$13.10

44

Screw, Tapping

3233747

Unavailable

44

Screw, Tapping

3233747

Unavailable

45

Pin, Interlock

3233308

Unavailable

46

Spring, Shifting, Interlock

3233550

Unavailable

47

Bracket, Interlock

3233309

$20.48

48

Switch, 3 Position

3233635

$174.99

49

Screw, Tapping

3233749

$5.65

50

Shaft, Shift, H/R

3233549

Unavailable

51

O-Ring

3233548

$33.24

52

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

53

Bellcrank, .125

3233547

$56.99

54

Nut, FLEXLOC

3233055

$3.32

55

Washer

3233054

$6.46

56

Washer

3233040

$9.52

57

Chain, Silent

3233036

Unavailable

58

Shaft, Input, HLR

3233536

$220.49

59

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75
