Description

Price

1

BOLT(10)

7512325

$2.39

2

DISC,BRAKE,7.21 OD,.150

5243675

Unavailable

3

SEAL, FR. HUB

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

CLUTCH,FR HUB E/M (Splined Drive Shaft)

1520281

$354.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

8

STUD(10)

7515523

$3.19

9

Kit, Wheel Hub Asm., w/Cap (Incl. 3,7,8)

2202595

Unavailable

10

Cage, Roll

3250028

$218.56

11

ROLLS

3250010

$35.99

12

SPRING,GARTER

3250032

$17.59

13

Spacer

1321814

$24.99

14

Cam

3250030

$198.48

15

PLUG,PIPE

7052045

$12.79

16

TIRE,23X7-10,TITAN (23x7-10)

5411264

Unavailable

17

WASHER

7556004

$7.19

18

COTTER PIN(10)

7661401

$1.49

19

O RING

5410470

$2.41

20

CAP,HUB,3-LOBE,AWD

5432611

$14.39

21

SCREW(10)

7512027

$1.49

22

NUT, SLOTTED(10)

7542810

$3.19

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

RIM,FRT,(SILVER)

1520175-117

Unavailable

25

VALVE-RIM

1525017

$5.59

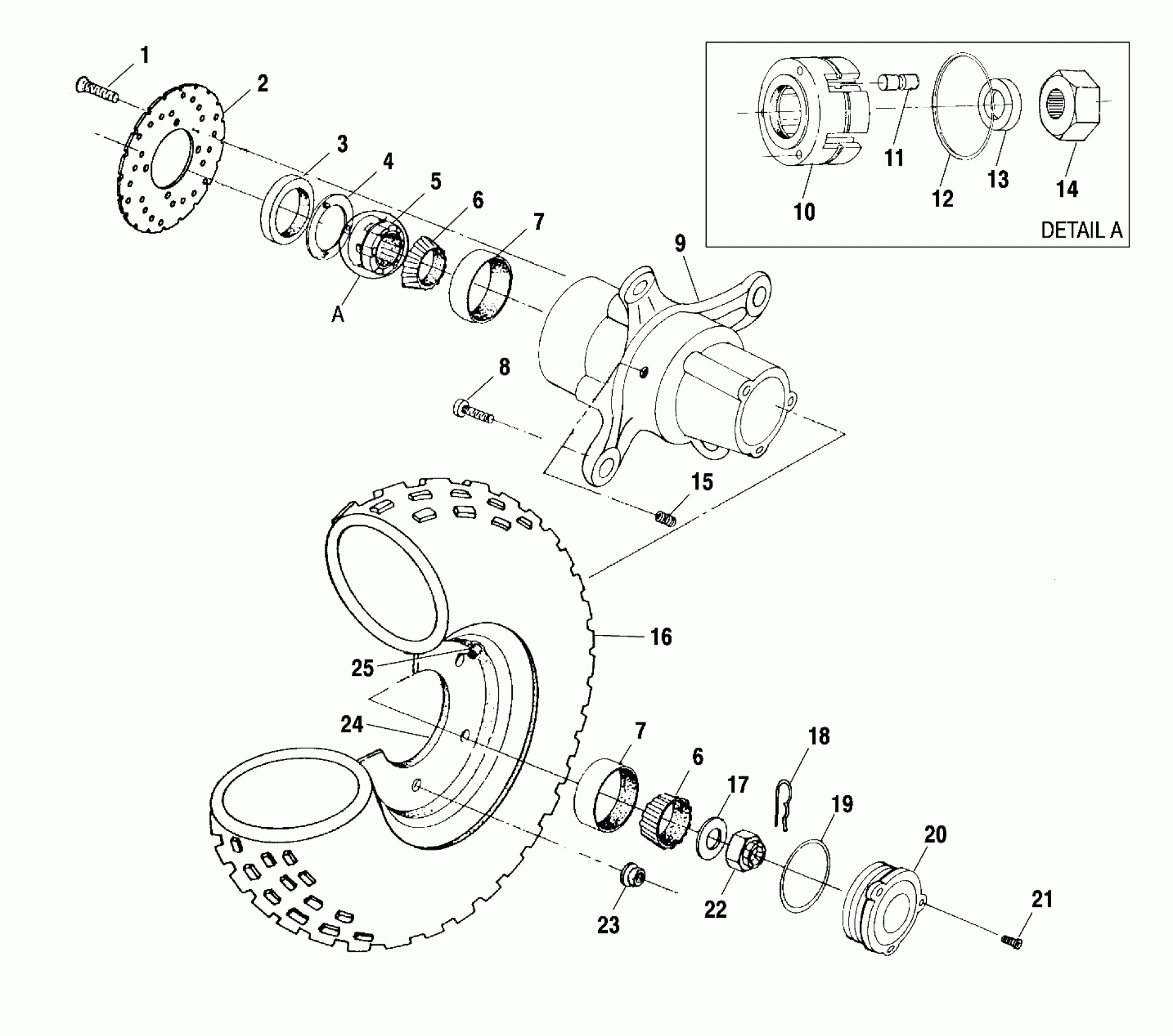

Polaris SCRAMBLER 500 4X4 - A01BG50AA FRONT WHEEL - A01BG50AA (4963766376B005) Diagram

BOLT(10)

DISC,BRAKE,7.21 OD,.150

SEAL, FR. HUB

Plate, Armature

CLUTCH,FR HUB E/M (Splined Drive Shaft)

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

STUD(10)

Kit, Wheel Hub Asm., w/Cap (Incl. 3,7,8)

Cage, Roll

ROLLS

SPRING,GARTER

Spacer

Cam

PLUG,PIPE

TIRE,23X7-10,TITAN (23x7-10)

WASHER

COTTER PIN(10)

O RING

CAP,HUB,3-LOBE,AWD

SCREW(10)

NUT, SLOTTED(10)

NUT-HXFL-3/8-24 B ZTB P-A

RIM,FRT,(SILVER)

VALVE-RIM
