Description

Price

-

GEARCASE,FRONT,ASM. (Incl. 1-12,16-26) (Units built after 7/0199)

1341323

$1,204.99

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal

3233248

$30.88

2

Seal

3233248

$30.88

3

INPUT COVER-FRONT HOUSING

3233701

$39.37

4

O-Ring

3233700

Unavailable

5

RING-RETAINING

3233699

$7.19

6

BEARING,BALL

3233589

$59.99

7

PINION,INPUT,14T

3233726

Unavailable

8

BUSHING,GARLOCK

3233541

$23.99

9

Seal

3233319

$27.99

10

BUSHINHG-GARLOCK

3233697

Unavailable

11

Washer

3233324

$8.99

12

PLUG,OIL FILL

3233711

Unavailable

13

CLIP,SNAP-IN

7080756

$4.79

14

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

TUBE,VENT

3233524

$7.19

17

Gearcase

3233696

Unavailable

18

SHAFT,OUTPUT,29T

3233725

Unavailable

19

BEARING

3233020

$47.99

20

SHIM

3233554

Unavailable

21

O-Ring

3233693

Unavailable

22

COVER,OUTPUT

3233724

Unavailable

23

SHIM .450 X .265

3233583

Unavailable

24

THRUST BUTTON

3233582

$7.91

25

PLUG, WASHER

3233254

$7.99

26

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

27

WASHER(10)

7552603

$1.49

28

SCREW(10)

7512492

$1.49

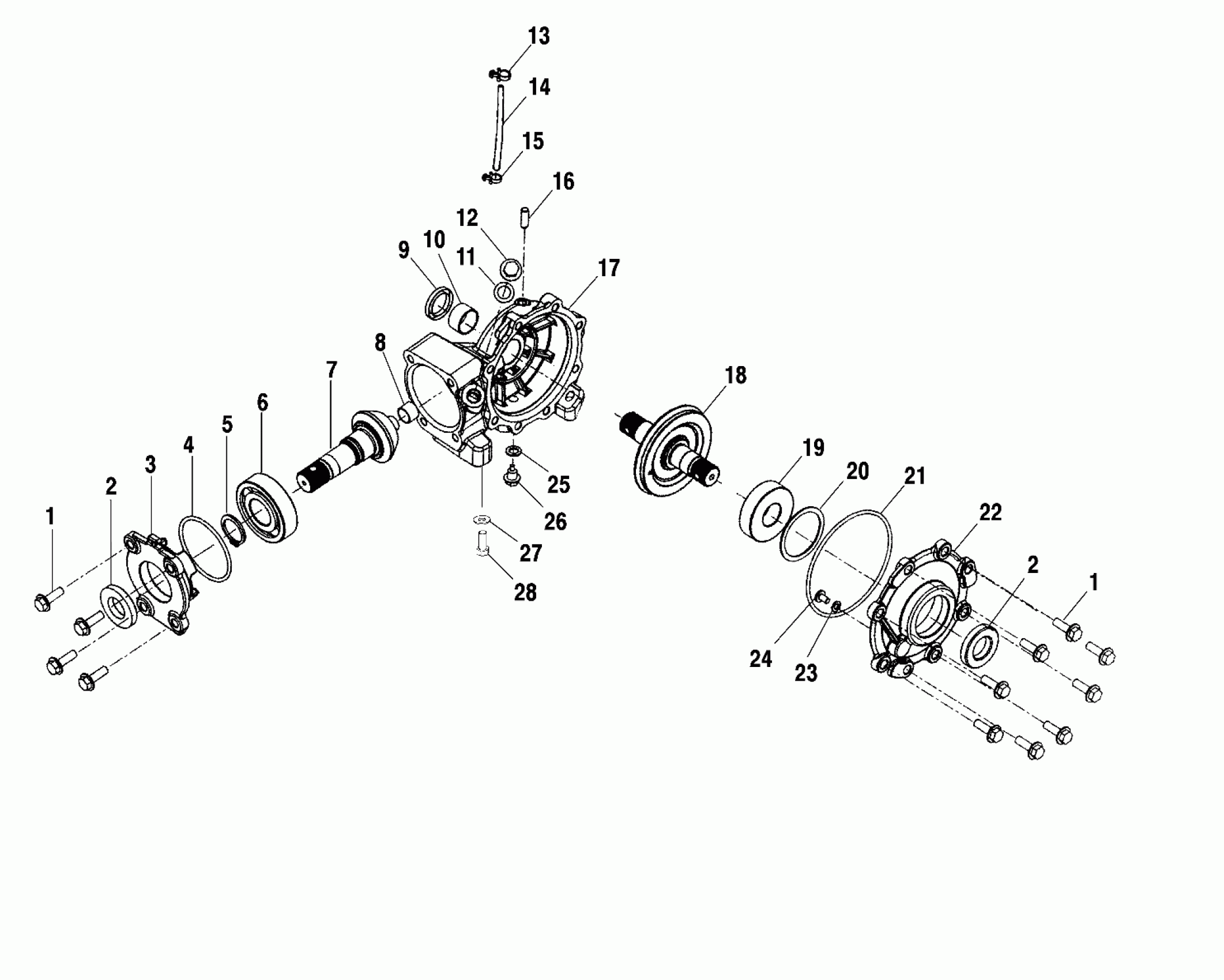

Polaris SCRAMBLER 500 4X4 - A01BG50AA FRONT HOUSING - A01BG50AA (4963766376B002) Diagram

GEARCASE,FRONT,ASM. (Incl. 1-12,16-26) (Units built after 7/0199)

Screw

Screw

Seal

Seal

INPUT COVER-FRONT HOUSING

O-Ring

RING-RETAINING

BEARING,BALL

PINION,INPUT,14T

BUSHING,GARLOCK

Seal

BUSHINHG-GARLOCK

Washer

PLUG,OIL FILL

CLIP,SNAP-IN

FUEL LINE,1/4 ID(1525 CM.)

CLAMP-HOSE, (LARGE GREEN)

TUBE,VENT

Gearcase

SHAFT,OUTPUT,29T

BEARING

SHIM

O-Ring

COVER,OUTPUT

SHIM .450 X .265

THRUST BUTTON

PLUG, WASHER

PLUG, DRAIN Substituted by 3233777

WASHER(10)

SCREW(10)
