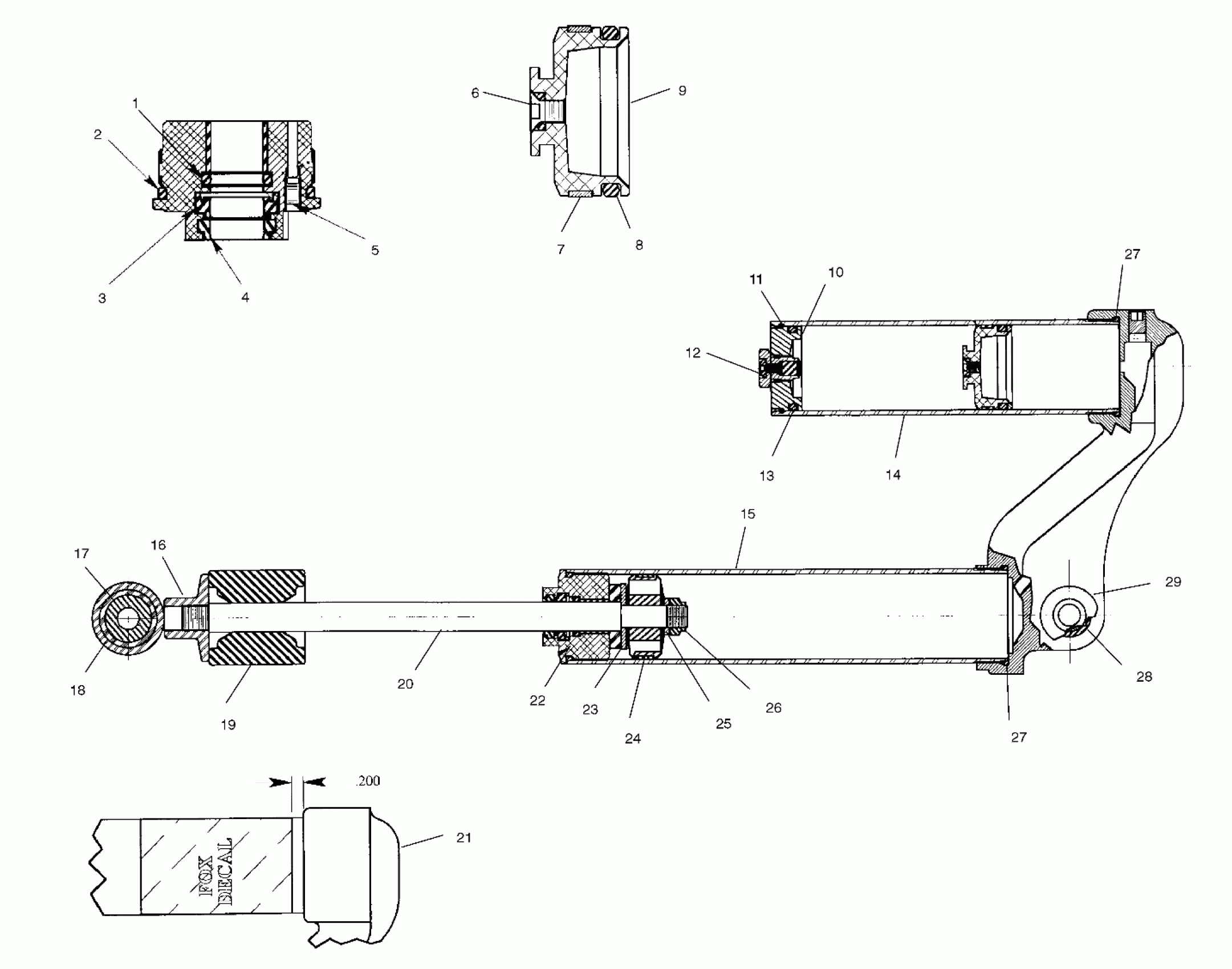

Polaris SCRAMBLER 500 4X4 - A01BG50AA FOX SHOCK, GAS, RESERVOIR - A01BG50AA (4963766376C012) Diagram

#

Description
Price

-

SHOCK-MONO,GAS,CH,19.08LG

7041867

Unavailable

1

O-RING INNER (10)

1500021

$10.99

2

O-RING,(10).103W-1.299ID

1500020

$10.63

3

WIPER INNER Substituted by 1500266

1500025

$24.27

4

WIPER,CLR,OUTER

1500024

Unavailable

5

SCREW-#8-32X.375 800-10-002

1500287

$2.54

6

O-RING,OUTER

1500023

$2.84

6

Screw

1500018

$5.56

7

RING,PISTON,FLOATING,FOX

1500006

$19.99

8

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

9

PISTON

1500011

$59.99

10

CAP,RESERV.ASM,(FOX)-ATV (Incl. 11,12,13)

1500099

$49.59

11

RING,RETAIN.(FOX)-ATV

1500097

$4.79

12

VALVE ASM,AIR Substituted by 1500014

1500072

Unavailable

12

Screw

1500019

$6.39

12

O-RING,DRUM OUTER

1500022

Unavailable

13

O-RING,(FOX)-ATV Substituted by 1500003

1500098

$8.89

14

RESERVOIR-N/A 6.0 810-00-003

1500286

$127.99

15

BODY,1.46X9.05 204-04-036

1500283

$62.39

16

Eyelet

1500013

$76.89

17

SLEEVE Substituted by 1500216

1500102

Unavailable

18

BSG-EYELET

1500103

$8.08

19

BUMPER,R.COMPRESS.,ATV

5410987

Unavailable

20

SHAFT-.498X10.15 229-19-004

1500284

$41.67

21

CAP,BODY,P/B 804-00-026

1500282

$181.59

22

BEARING-1.46X1.15 812-02-002

1500285

Unavailable

23

PLATE,TOP OUT

1500017

$20.22

24

DAMPER,PISTONRING,FOX

1500002

$31.99

25

BUSHING,BACKUP

1500015

$6.76

26

NUT,LOCK

1500016

$12.79

27

O-RING,BODY,FOX,.139W-1.234ID

1500004

$1.83

27

O-RING,BODY,FOX,.139W-1.234ID

1500004

$1.83

28

BUSHING, 1.40

5020657

$15.99

29

BSG-EYELET

1500104

Unavailable
