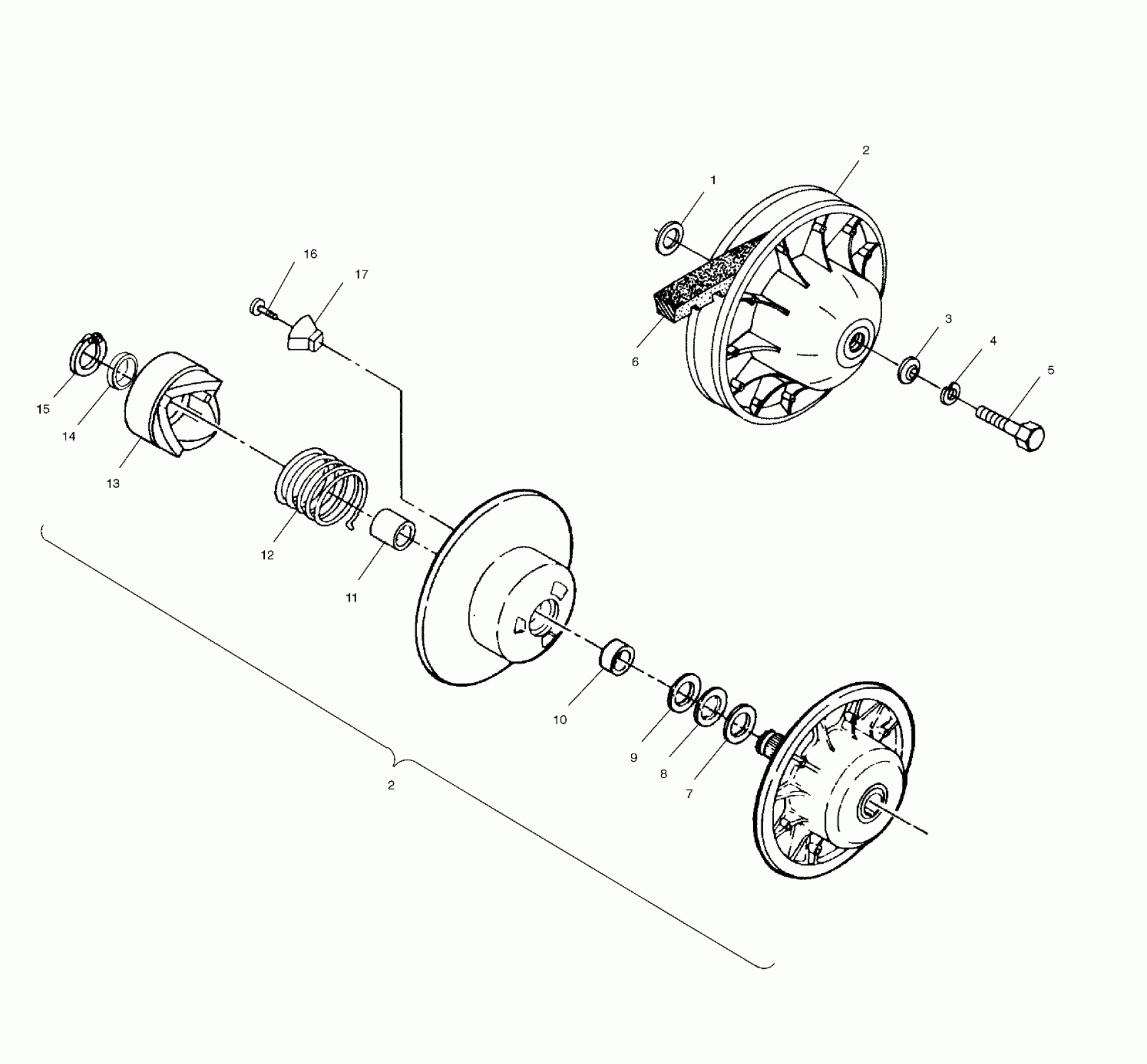

Polaris SCRAMBLER 500 4X4 - A01BG50AA DRIVEN CLUTCH - A01BG50AA (4963766376B013) Diagram

#

Description
Price

1

BUSHING-7/8 X 3/8 X 16 GA-Y

7556120

Unavailable

2

CLUTCH,DRVN,SILVER,40DEG (Incl. 7-11,14-17)

1321798

Unavailable

2

CLUTCH,DRVN,SILVER,40DEG (Incl. 7-11,14-17)

1321798

Unavailable

3

WASHER, DOMED(10)

5220646

$2.39

4

LOCK WASHER(10)

7552901

$1.49

5

BOLT(10)

7515384

Unavailable

6

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

7

WASHER(10) (.020)

7555898

Unavailable

8

WASHER(10) (.025)

7556076

Unavailable

9

WASHER(10)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING,CLUTCH,SVR.

7041499

$56.65

13

RAMP,STA.MACH,HVY RET

5131446

$87.99

14

SPACER(10)

5210752

$1.59

15

RING,RET.

7710448

$3.19

16

BOLT(10)

7511854

$1.49

17

BUTTON,RAMP

5430766

Unavailable
