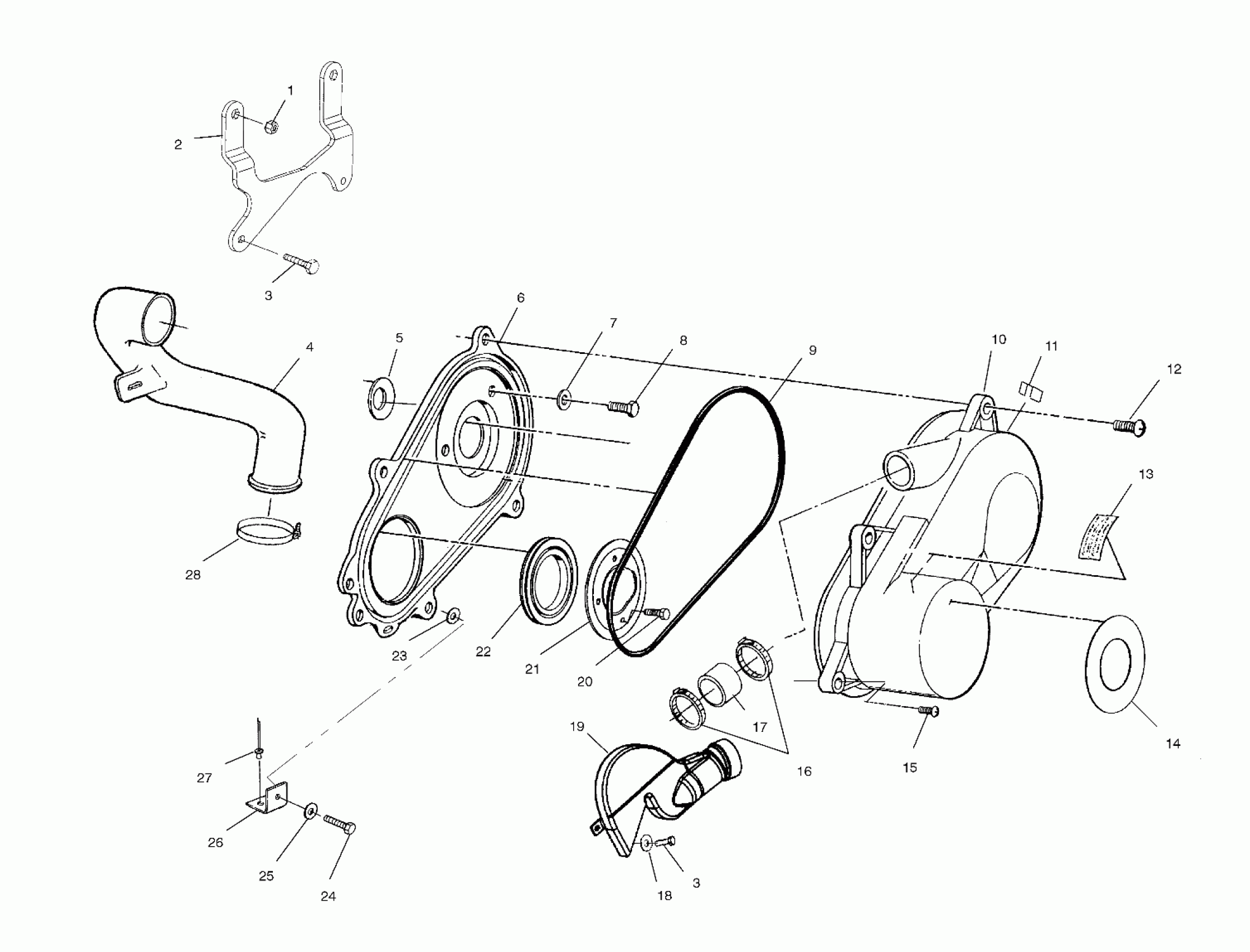

Polaris SCRAMBLER 500 4X4 - A01BG50AA CLUTCH COVER - A01BG50AA (4963766376C006) Diagram

#

Description
Price

1

NUTSERT,HEX

7547067

$4.28

2

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

3

BOLT(10)

7512232

$1.19

3

BOLT(10)

7512232

$1.19

4

DUCT,INLET,DOWN TUBE

5432698

Unavailable

5

SEAL,CLUTCH CVR,INNER

5411553

$24.27

6

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 12,15,24)

2201160

Unavailable

7

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.76

8

BOLT(10) (If built before 4/03/00)

7512278

Unavailable

8

BOLT/RBR WASHER 1/4-20X1,ASM.(10) (If built after 4/03/00)

7517860

Unavailable

9

SEAL,CLUTCHCOVER

5521301

$32.37

10

COVER-CLUTCH,OUTER,HV,ST-801

5433540

$186.17

11

CLIP,CLUTCH COVER(10)

7670051

Unavailable

12

SCREW(10)

7512093

$1.19

13

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

14

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

15

SCREW(10)

7512094

$1.59

16

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

17

BOOT,DUCT,HI-FLOW

5411489

Unavailable

18

WASHER(10)

7558301

$1.19

19

DUCT-CLUTCH,OUT,HI-FLOW,13.6 (If built after 10/15/00)

5434160

Unavailable

19

DUCT,CLUTCH OUT,HI-FLOW,13-6 Substituted by 5434160 (If built before 10/15/00)

5433409

Unavailable

20

Screw and Washer (See Crankcase Pg. C14, Ref. 6)

----

Unavailable

21

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

$36.41

22

Seal, Cover Case

5410575

$44.51

23

WASHER,NYLON

7555932

$2.38

24

Screw

7512098

$1.59

25

WASHER(10)

7555935

$2.38

26

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

27

RIVET,INTERLOCK,B(50)

7661638

$1.19

28

CLAMP, NARROW BAND(10)

7080511

$4.76
